Y 820

• Model: X 820
• Form Factor: Mid Tower
• Motherboard: ATX | mATX
• I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
• Drive:
  – Config 1: HDD x 2 + SSD x 2
  – Config 2: HDD x 1 + SSD x 3 HDD x 1 + SSD x 3
• Fan Type: ARGB, Hexa Pattern, Center & Side Infinity Mirror Glow

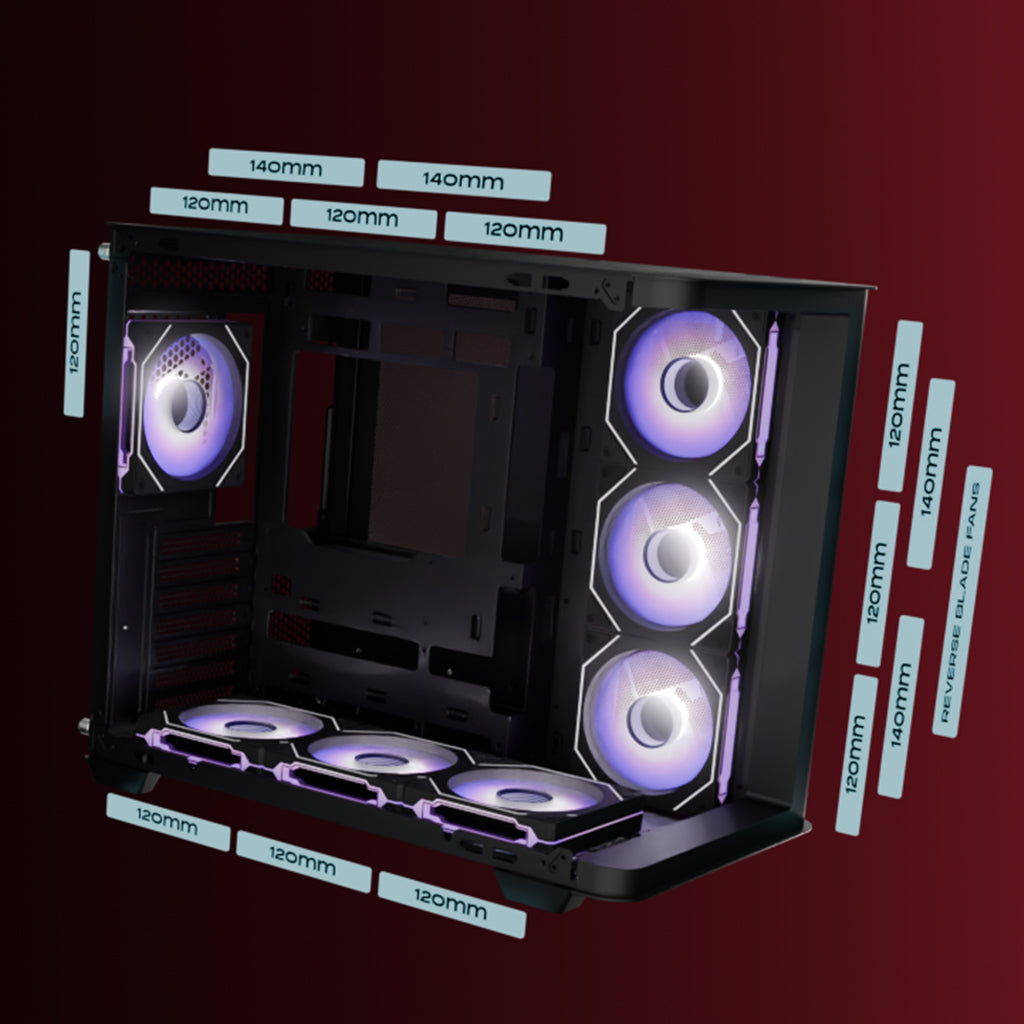

• Cooling Fans:

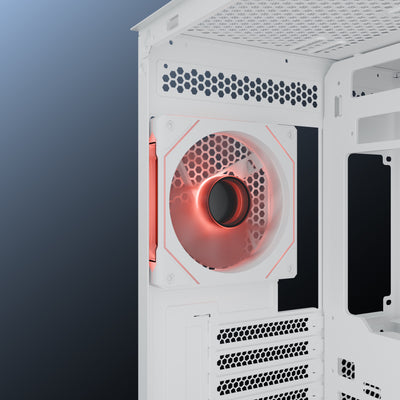

  – Rear: 120mm x 1
  – Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
  – Bottom: 120mm x 3 (Reverse Blade)
  – Side: 120mm x 3 (Reverse Blade) | 140mm x 2 (Optional)

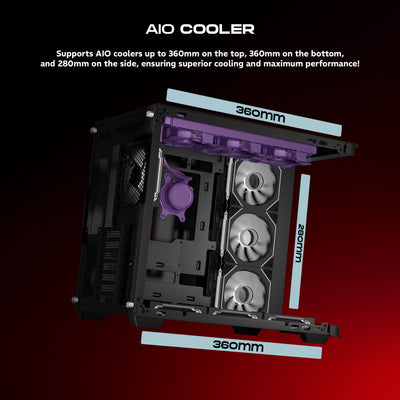

• AIO:
  – Top: Up to 360mm
  – Bottom: Up to 360mm
  – Side: Upto 280 mm
• CPU Cooler Height: 160 mm
• GPU Length: 445mm

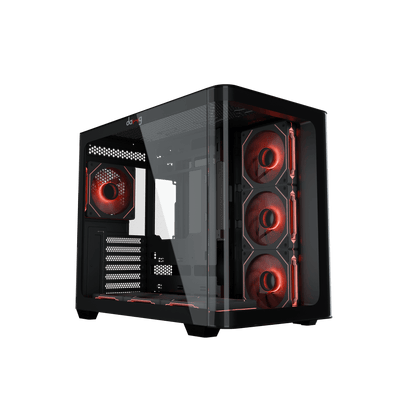

• Panel Type: 2 Side Seamless Curved Glass
• PSU: Separate Chamber, 240 mm
• Dust Filter: Top Magnetic, Bottom Magnetic
• PCIe Expansion: 7
• Dimension (WxDxH): 28.5 x 46 x 40 cm
• Weight: 7.9 kg

General

Q: Which motherboards are compatible with the Y820?
A: The Y820 supports ATX and mATX motherboards, ensuring flexibility for various builds.

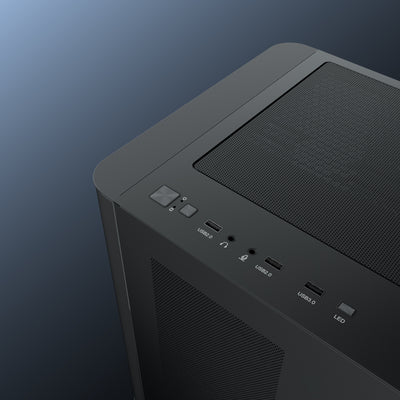

Q: What I/O ports are available on the Y820?
A: The Y820 includes USB 3.0, USB x 2, and a combined headphone/microphone jack

Cooling & Airflow

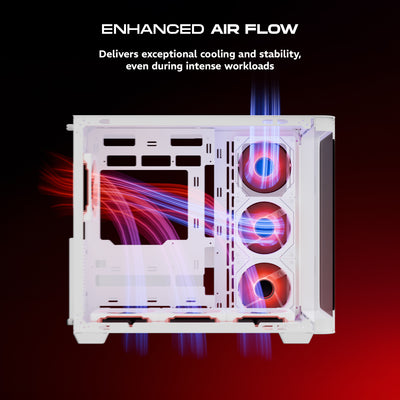

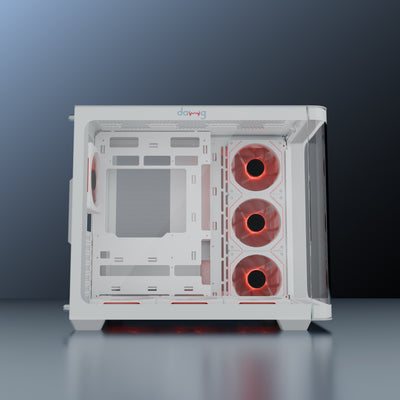

Q: What cooling options are available in the Y820?
A: The Y820 is AIO compatible and features pre-installed ARGB fans for efficient cooling. It supports additional cooling options:

• Rear: 120mm x 1
• Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
• Bottom: 120mm x 3 (Reverse Blade)
• Side: 120mm x 3 (Reverse Blade) | 140mm x 2 (Optional)
• AIO Support: Up to 360mm on top, up to 360mm on bottom, and up to 280mm on the side

Q: Does the Y820 have a dust filter?
A: Yes, the Y820 comes with top and bottom magnetic dust filters to keep your system clean and running efficiently.

Compatibility & Dimensions

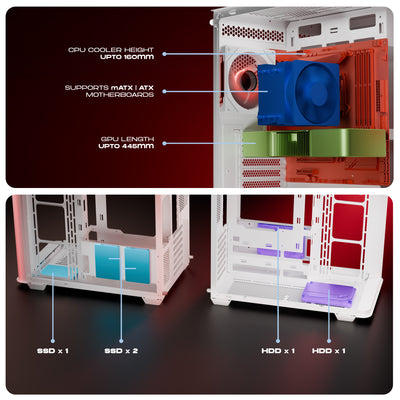

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 160mm.

Q: What is the maximum GPU length supported?
A: The Y820 supports GPUs up to 445mm in length.

Q: What are the case dimensions and weight?
A: The Y820 measures 28.5 x 46 x 40 cm and weighs approximately 7.9 kg.

Storage & Expansion

Q: What storage options does the Y820 support?
A: The case supports multiple storage configurations:

• Configuration 1: HDD x 2 + SSD x 2
• Configuration 2: (HDD x 1 + SSD x 3

Q: How many PCIe expansion slots are available?
A: The Y820 includes 7 PCIe expansion slots.

Design & Features

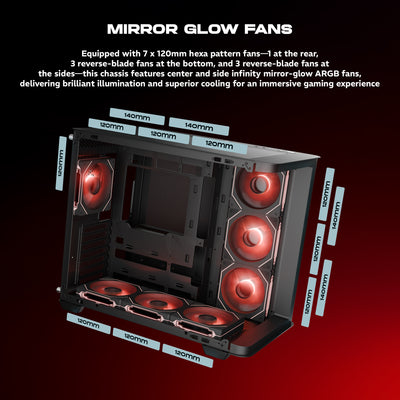

Q: Does the Y820 have RGB lighting?
A: Yes, the case features ARGB Sync, a Hexa pattern, and center & side infinity mirror glow for enhanced aesthetics.

Q: What materials are used in the Y820?
A: The case features wraparound tempered glass for durability and an immersive view of internal components.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans.

Q: Is cable management supported?
A: Yes, the Y820 is designed with efficient cable management to ensure a clean and organized build.
