daWg Y820 White Mid Tower Chassis with Glassy finish, Angled view
daWg Y820 black Mid Tower Chassis, with Glassy Finish, Angled View
daWg Y820 white Mid Tower Chassis , Side view
daWg Y820 black Mid Tower Chassis , 360mm AIO cooler for superior cooling
daWg Y820 white Mid Tower Chassis, Shows airflow design for enhanced airflow
daWg Y820 black Mid Tower Chassis , 120mm hexa cooling fans for gaming
daWg Y820 White Mid Tower Chassis shoes dimensions of internal components
daWg Y820 black Mid Tower Chassis , top view
daWg Y820 white Mid Tower Chassis Side view of cooling fans
daWg Y820 black Mid Tower Chassis ,shows input ports of Chassis
daWg Y820 white Mid Tower Chassis , 120mm rear cooling fan
daWg Y820 black Mid Tower Chassis , dismantled view of all parts

daWg | Mid tower

Y 820

Sale price₹ 9,699Regular price ₹ 21,999

Y 820 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, dual-side seamless curved glass panel, separate chamber PSU design, 160mm CPU cooler clearance, 445mm GPU length, pre-installed ARGB fans with infinity mirror glow, rear 120mm fan, bottom and side 120mm x 3 reverse blade fans, and optional top cooling fans. AIO supports up to 360mm (top and bottom) and 280mm (side).

Color
Color: White
Buy from mdcomputers.in

Pairs well with

Highlights

Fits up to a 240mm PSU in a dedicated chamber, with magnetic dust filters for airflow and a seamless dual-curved glass panel for a stunning display.

Enhanced Airflow

Ensuring exceptional cooling and stability, it maintains optimal performance even during intense workloads, preventing overheating during intense gaming, and multitasking.

Mirror Glow Fans

Equipped with 7 x 120mm hexa pattern fans—1 at the rear, 3 reverse-blade fans at the bottom, and 3 reverse-blade fans at the sides—this chassis features center and side infinity mirror-glow ARGB fans, delivering brilliant illumination and superior cooling for an immersive gaming experience.

AIO Compatible

Supports AIO coolers up to 360mm on the top, 360mm on the bottom, and 280mm on the side, ensuring superior cooling and maximum performance!

Device Support

Engineered to withstand the heat, this powerhouse accommodates ATX & mATX motherboards, 445mm GPUs, and 160mm CPU coolers for top-notch performance!

Plentiful Storage

Customize your storage setup with two versatile configurations to suit your needs. Choose between 2 HDDs and 2 SSDs for high-capacity and high-speed storage or opt for 1 HDD and 3 SSDs for enhanced performance and faster data access.

I/O Connectivity

Seamlessly connect your devices with USB 3.0, dual USB ports, and dedicated headphone and mic ports, for high-speed data transfers, gaming, and effortless audio connectivity.

daWg | Y 820 | Mid tower

Features & Specs

Specifications
  • Model: X 820
  • Form Factor: Mid Tower
  • Motherboard: ATX | mATX
  • I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
  • Drive:
    – Config 1: HDD x 2 + SSD x 2
    – Config 2: HDD x 1 + SSD x 3 HDD x 1 + SSD x 3
  • Fan Type: ARGB, Hexa Pattern, Center & Side Infinity Mirror Glow
  • Cooling Fans:
    – Rear: 120mm x 1
    – Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
    – Bottom: 120mm x 3 (Reverse Blade)
    – Side: 120mm x 3 (Reverse Blade) | 140mm x 2 (Optional)
  • AIO:
    – Top: Up to 360mm
    – Bottom: Up to 360mm
    – Side: Upto 280 mm
  • CPU Cooler Height: 160 mm
  • GPU Length: 445mm

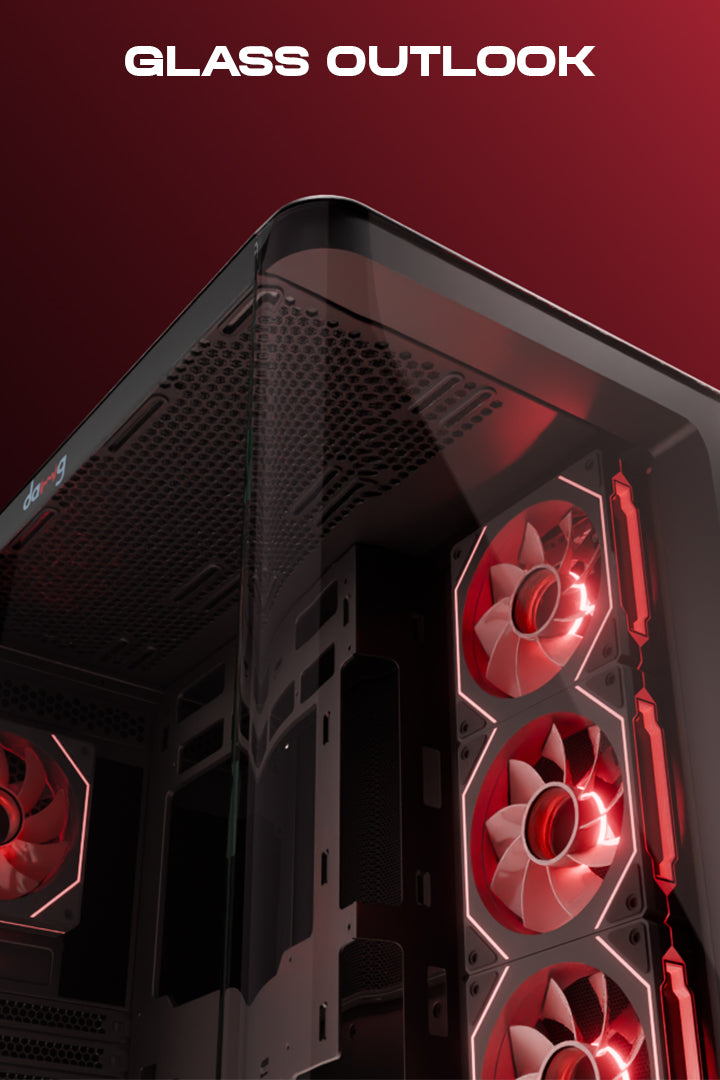

  • Panel Type: 2 Side Seamless Curved Glass

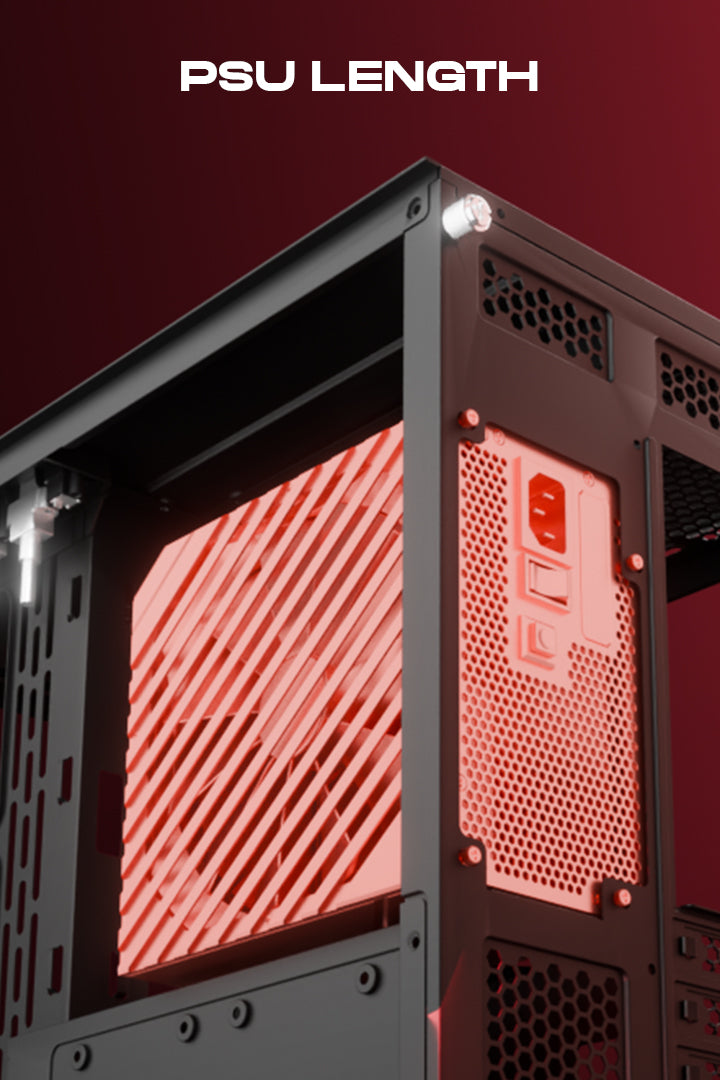

  • PSU: Separate Chamber, 240 mm
  • Dust Filter: Top Magnetic, Bottom Magnetic
  • PCIe Expansion: 7
  • Dimension (WxDxH): 28.5 x 46 x 40 cm
  • Weight: 7.9 kg
Highlights

AIO Compatible
ARGB Sync Enabled
Pre-Installed ARGB Fans
Enhanced Air Flow
Silent Design
2 Side Seamless Curved Glass
Dust Filters
Cable Management
Dual Chamber Build

Description

Y 820 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, dual-side seamless curved glass panel, separate chamber PSU design, 160mm CPU cooler clearance, 445mm GPU length, pre-installed ARGB fans with infinity mirror glow, rear 120mm fan, bottom and side 120mm x 3 reverse blade fans, and optional top cooling fans. AIO supports up to 360mm (top and bottom) and 280mm (side).

FAQs

General

Q: Which motherboards are compatible with the Y820?
A: The Y820 supports ATX and mATX motherboards, ensuring flexibility for various builds.

Q: What I/O ports are available on the Y820?
A: The Y820 includes USB 3.0, USB x 2, and a combined headphone/microphone jack

Cooling & Airflow

Q: What cooling options are available in the Y820?
A: The Y820 is AIO compatible and features pre-installed ARGB fans for efficient cooling. It supports additional cooling options:

  • Rear: 120mm x 1
  • Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
  • Bottom: 120mm x 3 (Reverse Blade)
  • Side: 120mm x 3 (Reverse Blade) | 140mm x 2 (Optional)
  • AIO Support: Up to 360mm on top, up to 360mm on bottom, and up to 280mm on the side

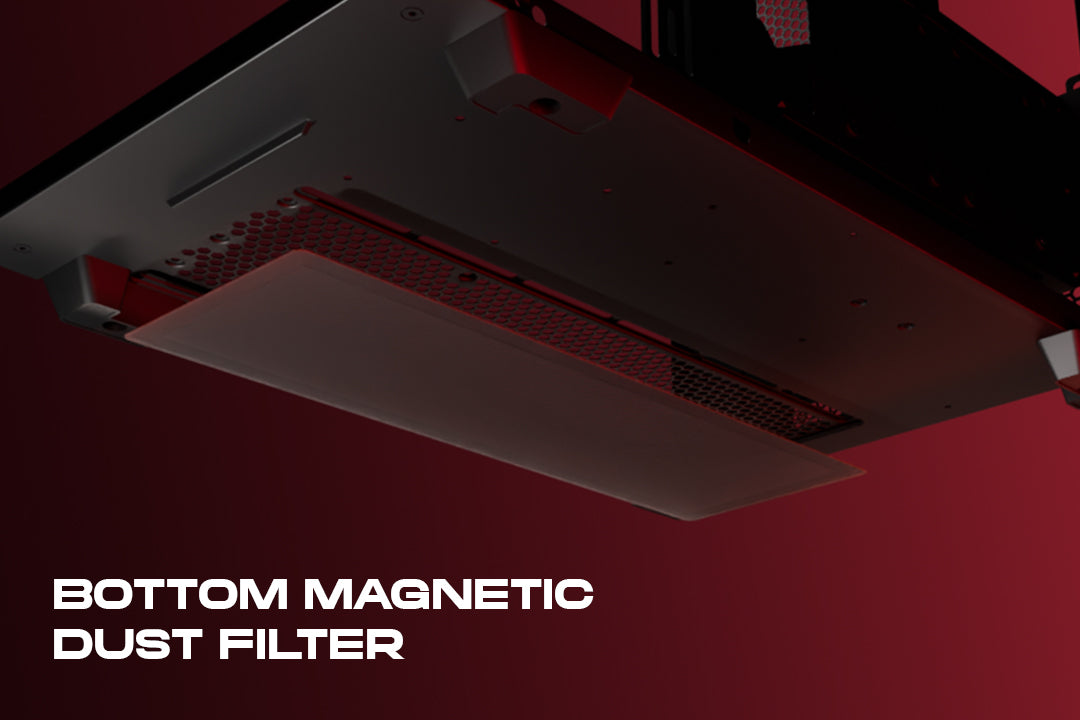

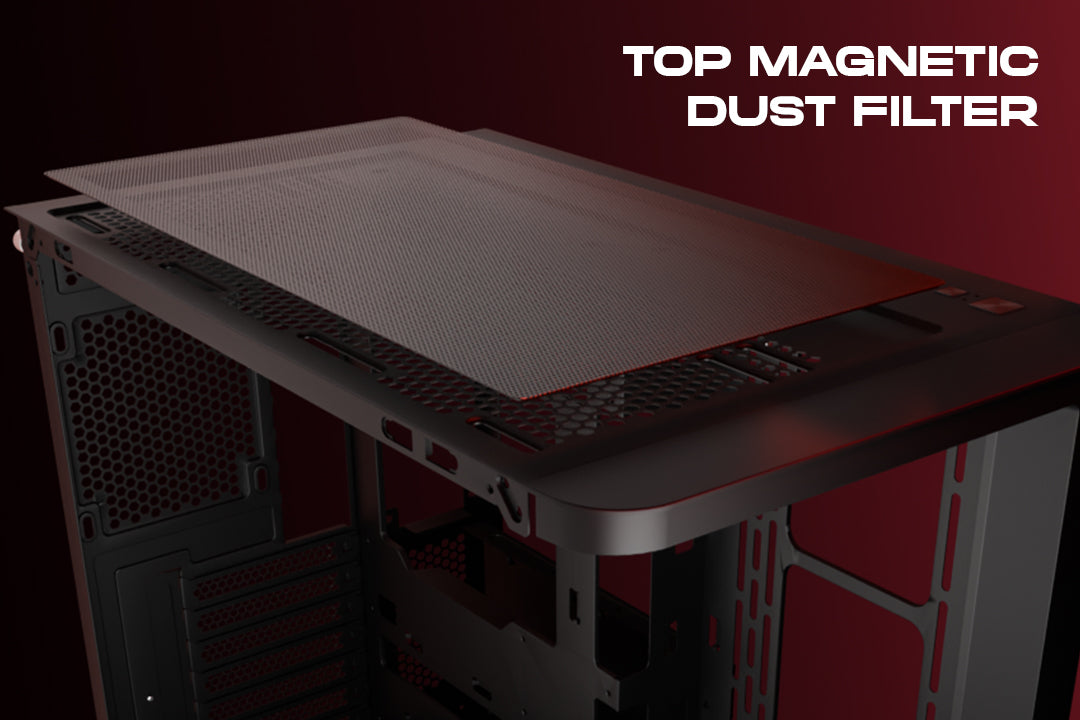

Q: Does the Y820 have a dust filter?
A: Yes, the Y820 comes with top and bottom magnetic dust filters to keep your system clean and running efficiently.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 160mm.

Q: What is the maximum GPU length supported?
A: The Y820 supports GPUs up to 445mm in length.

Q: What are the case dimensions and weight?
A: The Y820 measures 28.5 x 46 x 40 cm and weighs approximately 7.9 kg.

Storage & Expansion

Q: What storage options does the Y820 support?
A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 2 + SSD x 2
  • Configuration 2: (HDD x 1 + SSD x 3

Q: How many PCIe expansion slots are available?
A: The Y820 includes 7 PCIe expansion slots.

Design & Features

Q: Does the Y820 have RGB lighting?
A: Yes, the case features ARGB Sync, a Hexa pattern, and center & side infinity mirror glow for enhanced aesthetics.

Q: What materials are used in the Y820?
A: The case features wraparound tempered glass for durability and an immersive view of internal components.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans.

Q: Is cable management supported?
A: Yes, the Y820 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
