Highlights

Supports upto a 240mm PSU in a dedicated chamber for a clean look, with bottom magnetic dust filters for optimal airflow. The seamless three-sided glass panel showcases your build, while USB 3.0, a USB port, Type-C, and an audio(Headphone+mic) jack ensure easy connectivity.

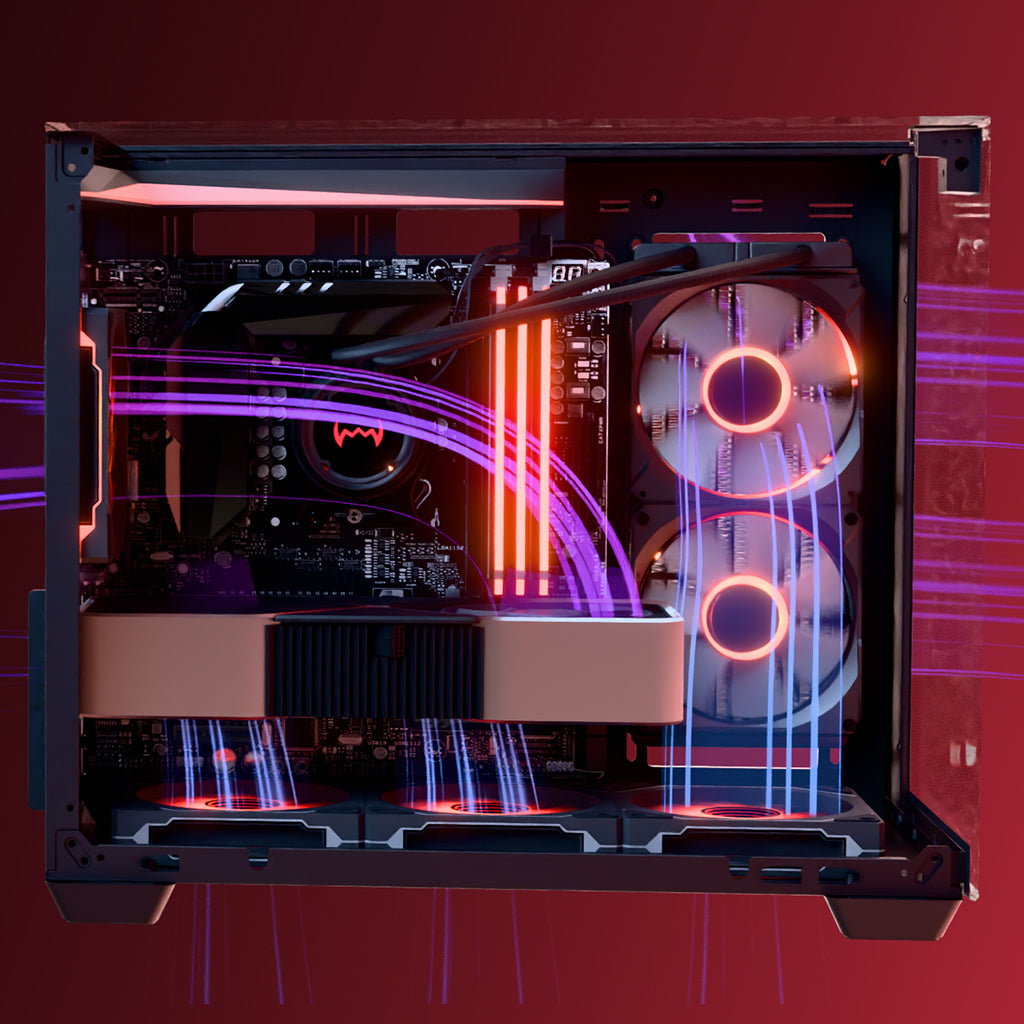

Enhanced Airflow

Designed for superior cooling and stability, it efficiently dissipates heat to maintain optimal performance, even during intensive workloads.

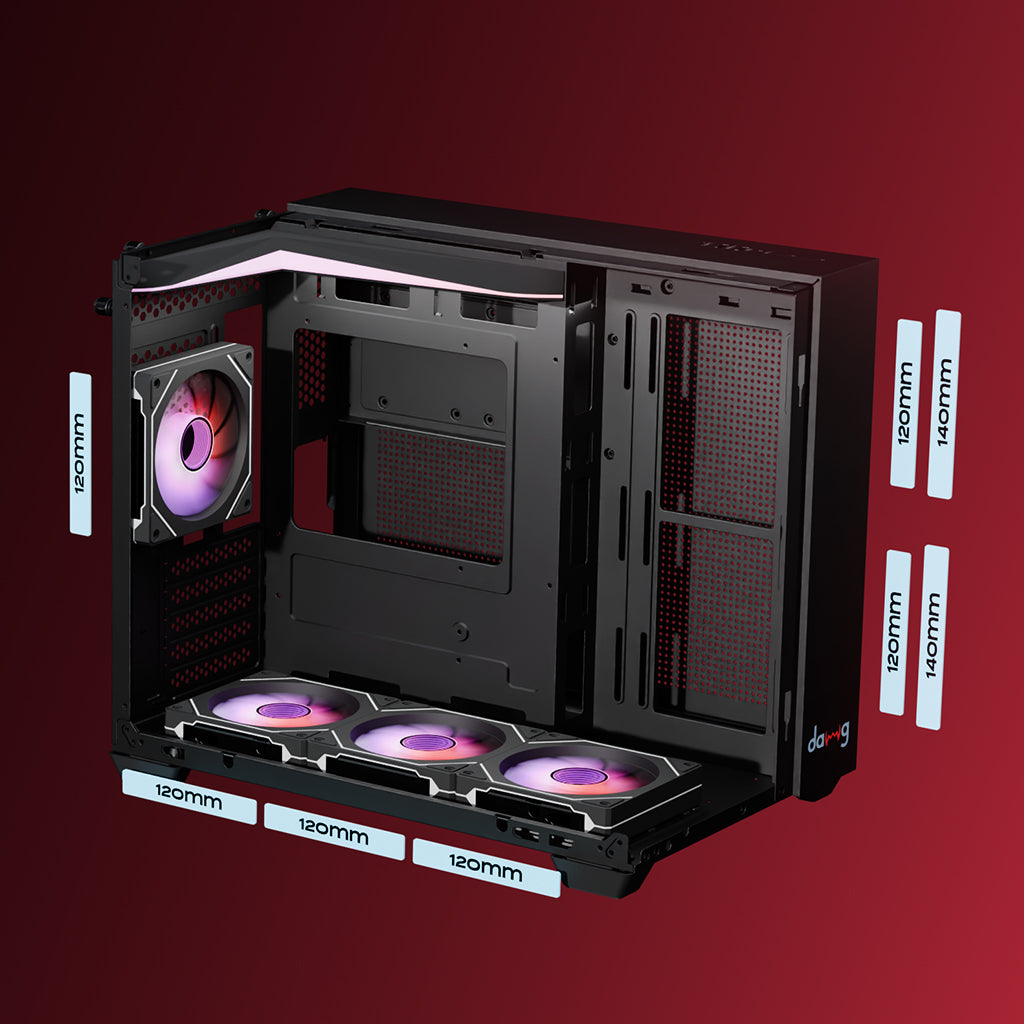

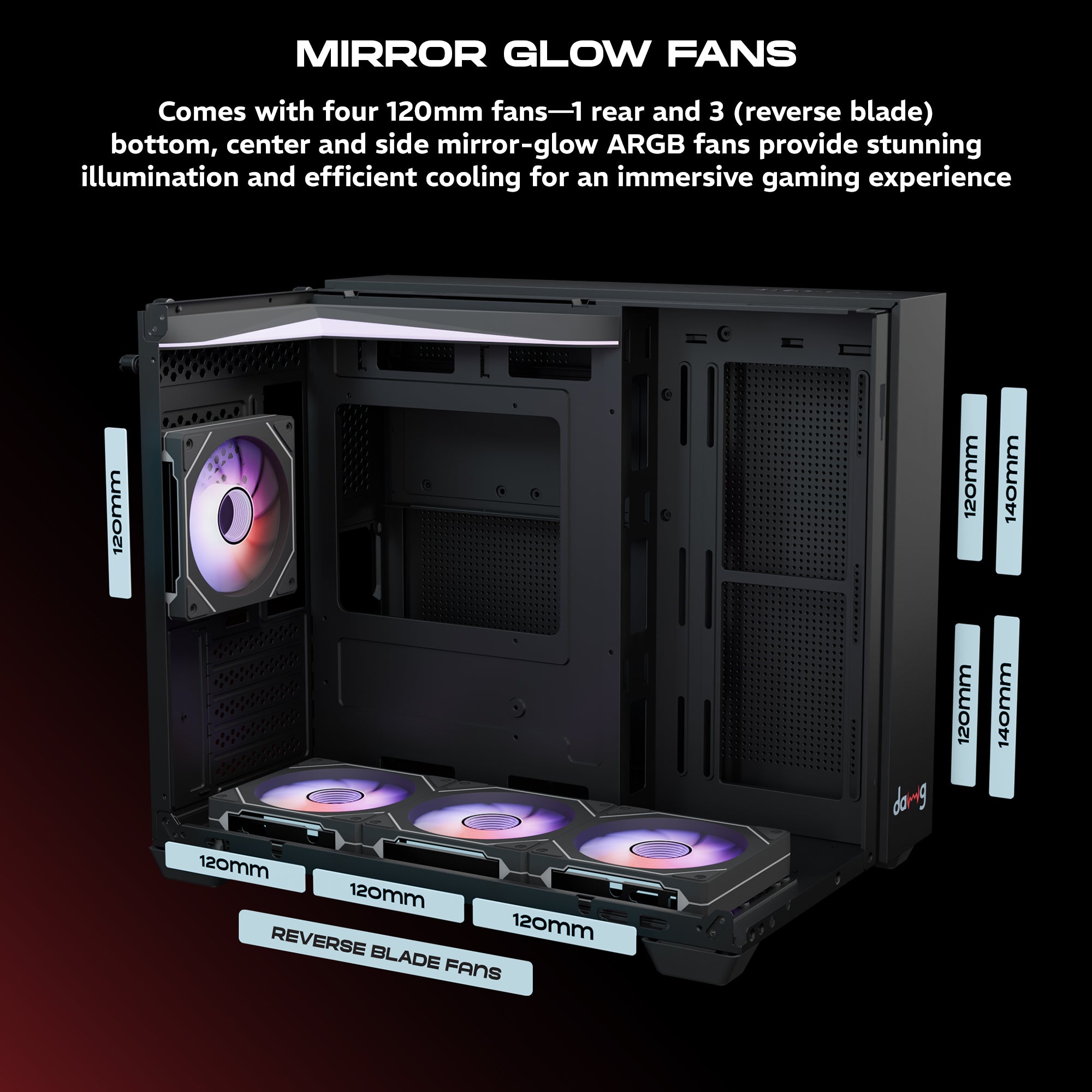

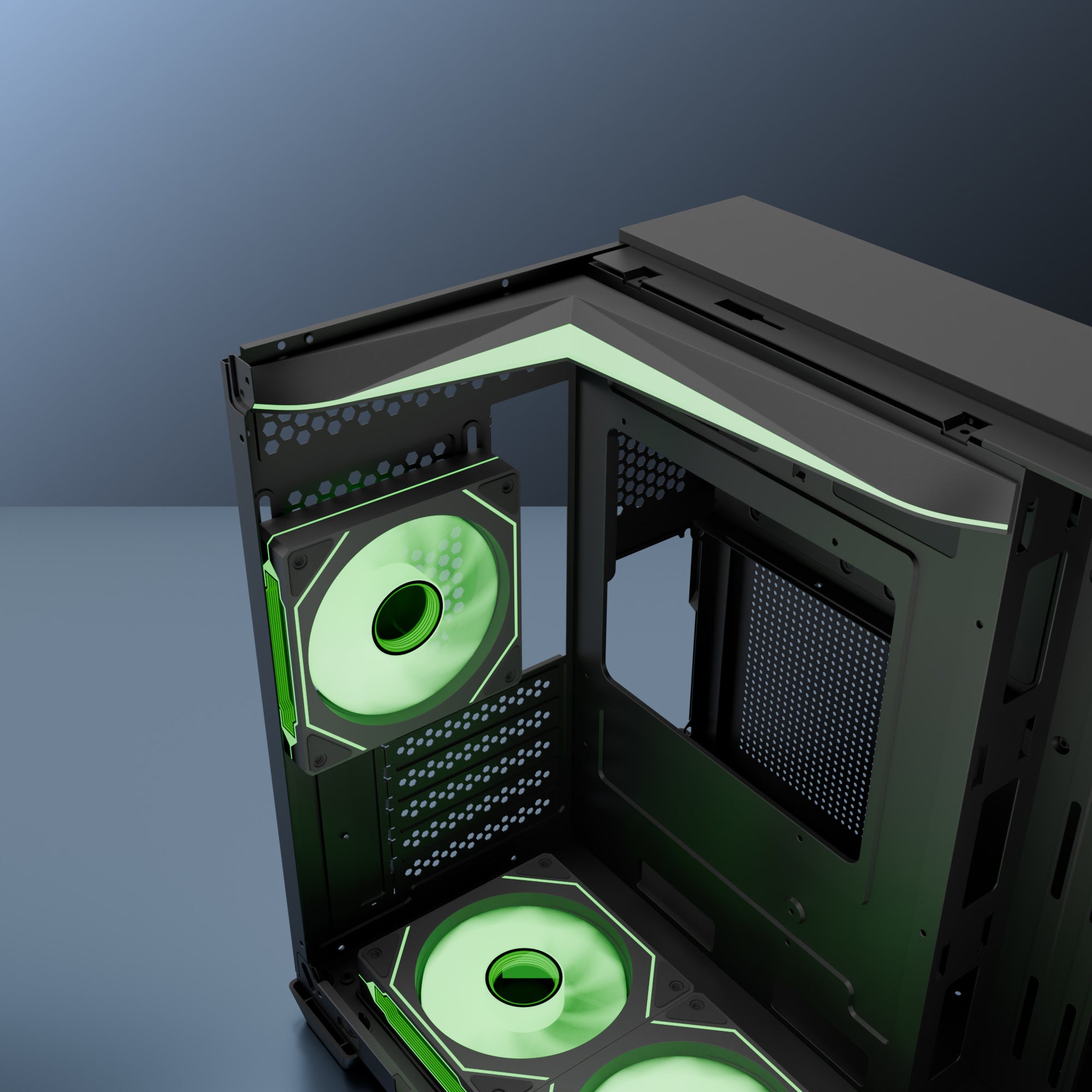

Mirror Glow Fans

Comes with four 120mm fans—1 rear and 3 (reverse blade) bottom, center, and side mirror-glow ARGB fans provide stunning illumination and efficient cooling for an immersive gaming experience.

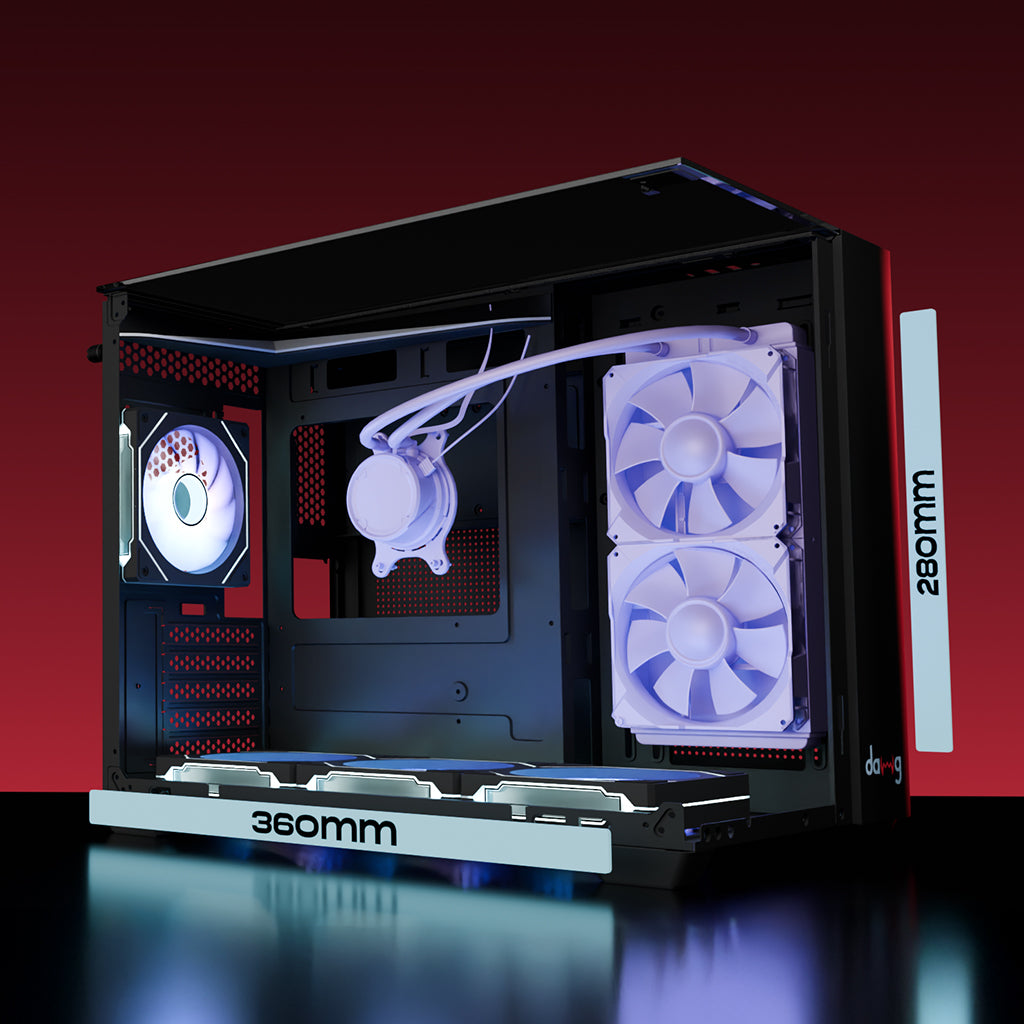

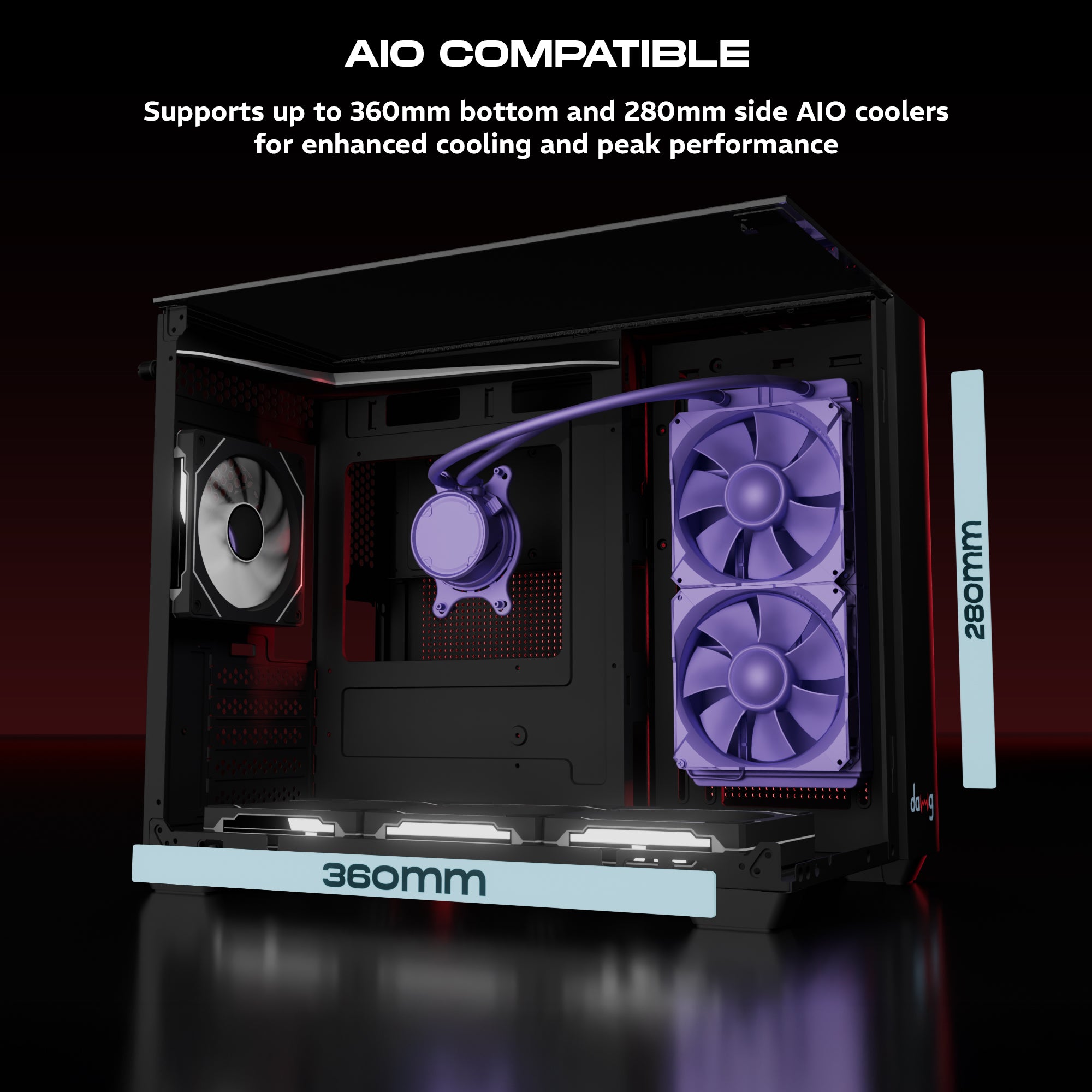

AIO Compatible

Engineered for superior cooling, it supports up to 360mm bottom and 280mm side AIO coolers, ensuring efficient heat dissipation for optimal performance, especially during high-performance gaming. !

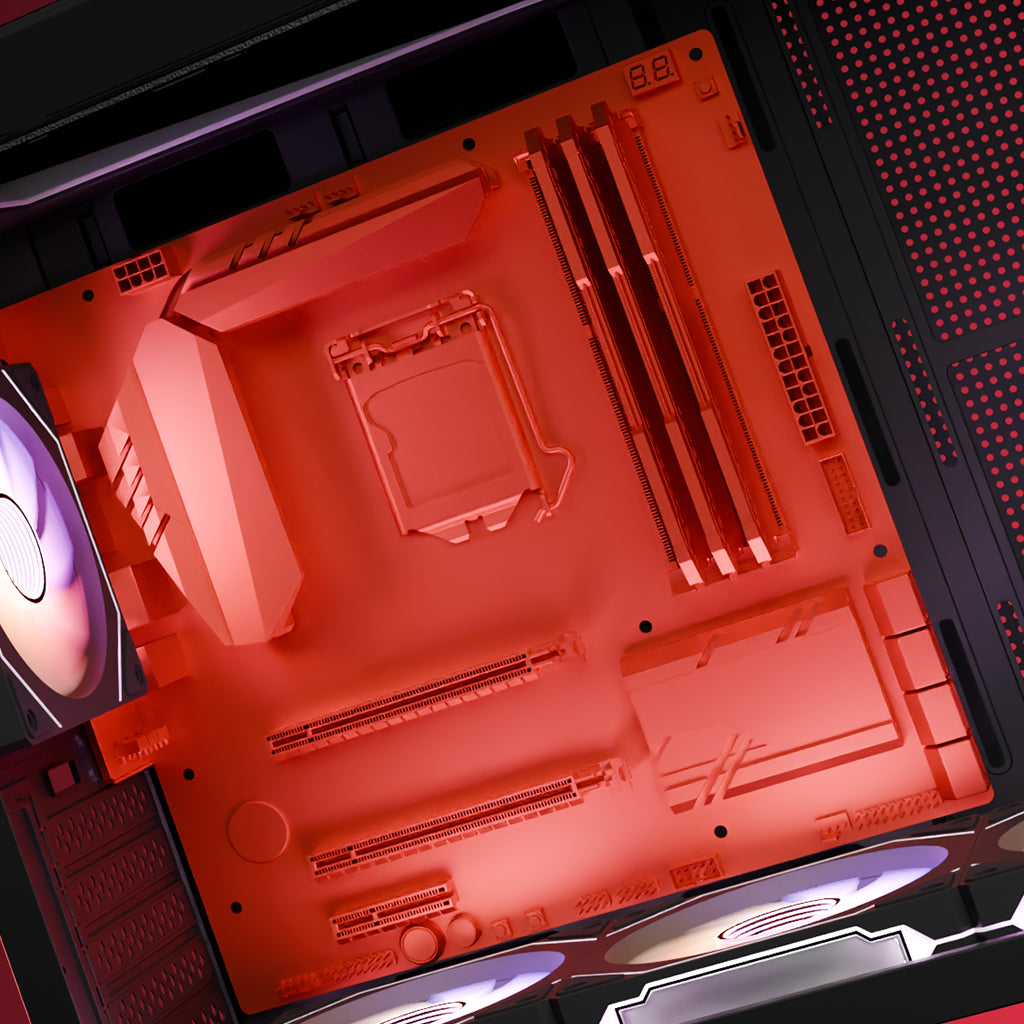

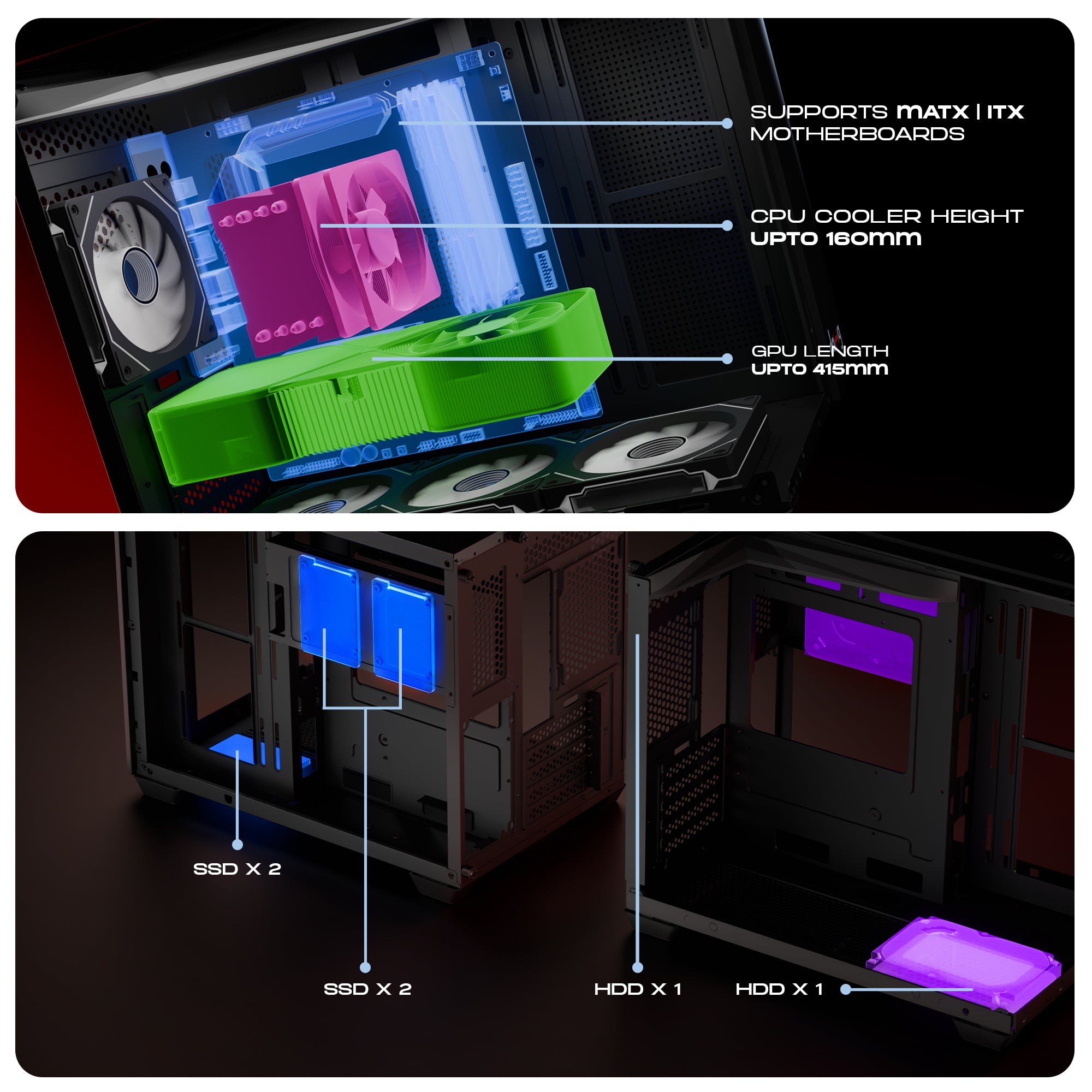

Motherboard Support

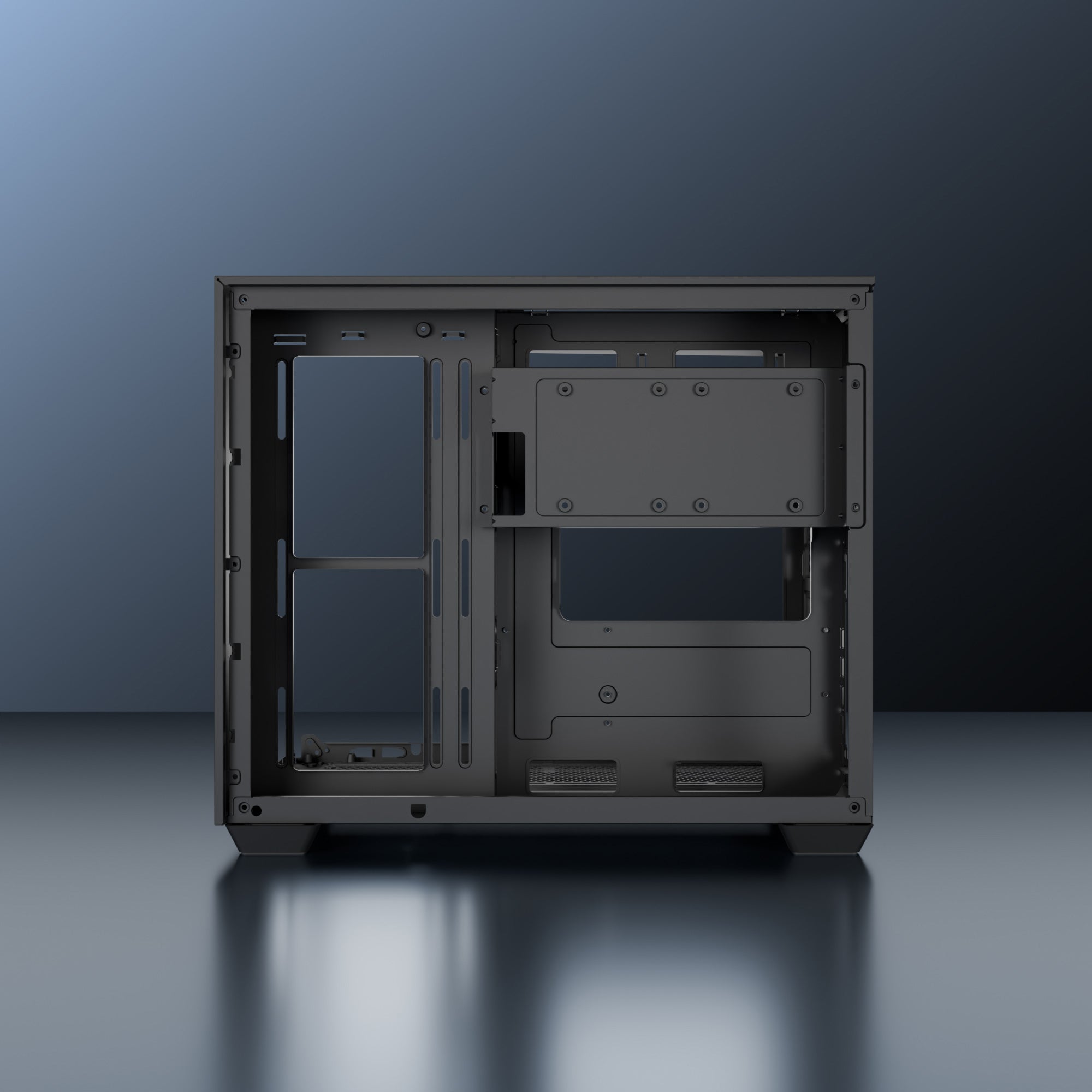

A powerful cube-shaped chassis designed to perfectly accommodate mATX & ITX motherboards with precision.

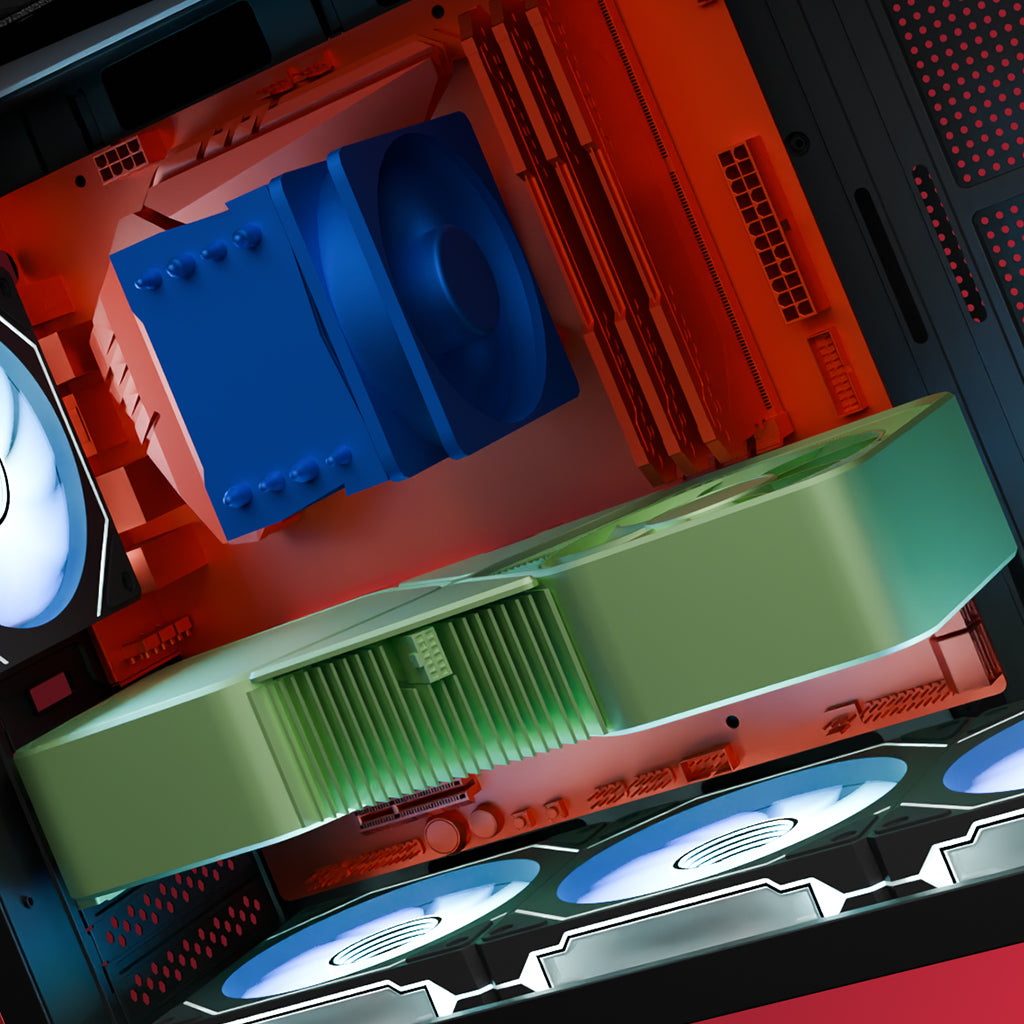

Device Support

Engineered for high performance, this chassis supports GPUs up to 415mm and CPU coolers up to 160mm, ensuring compatibility with powerful components.

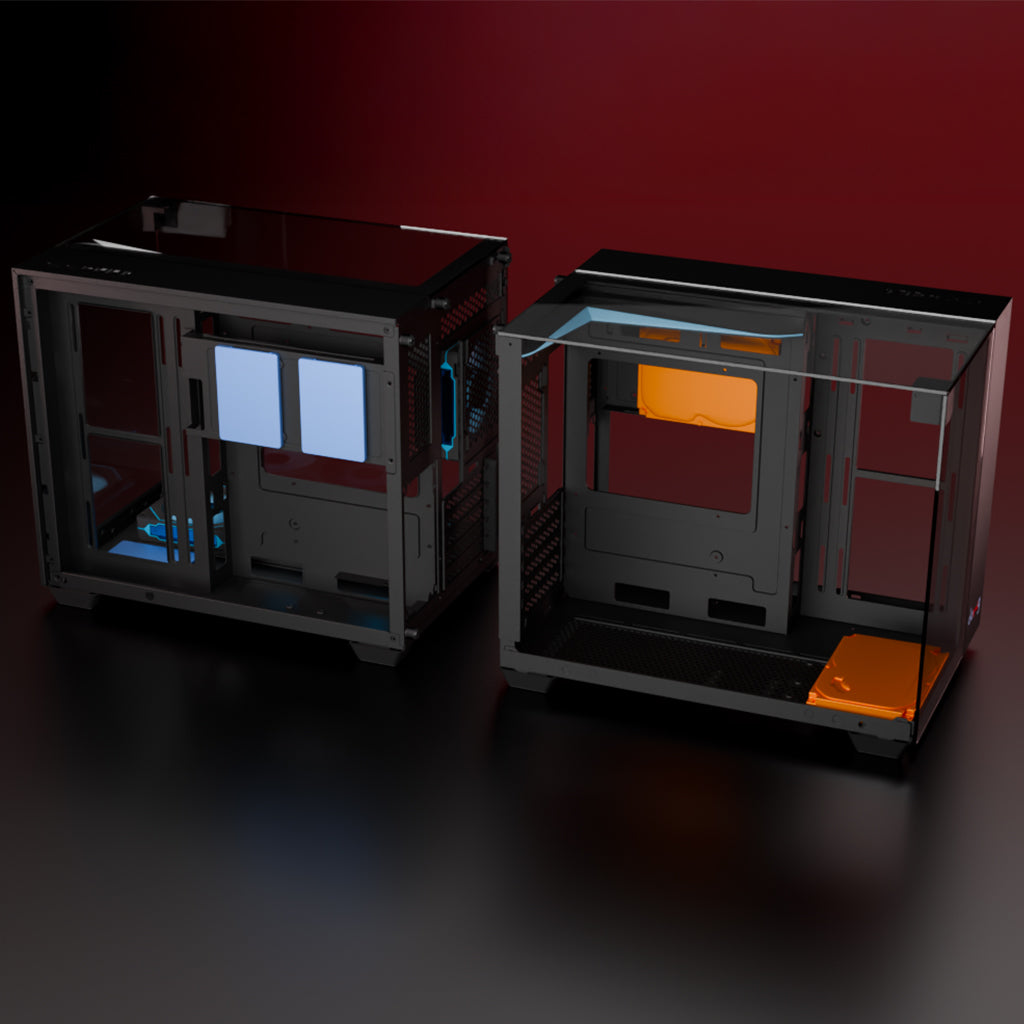

Abundant Storage

Tailor your storage configuration to suit your needs with two versatile options: 2 HDDs + 2 SSDs for high-speed storage or 1 HDD + 3 SSDs for enhanced performance and faster data access.

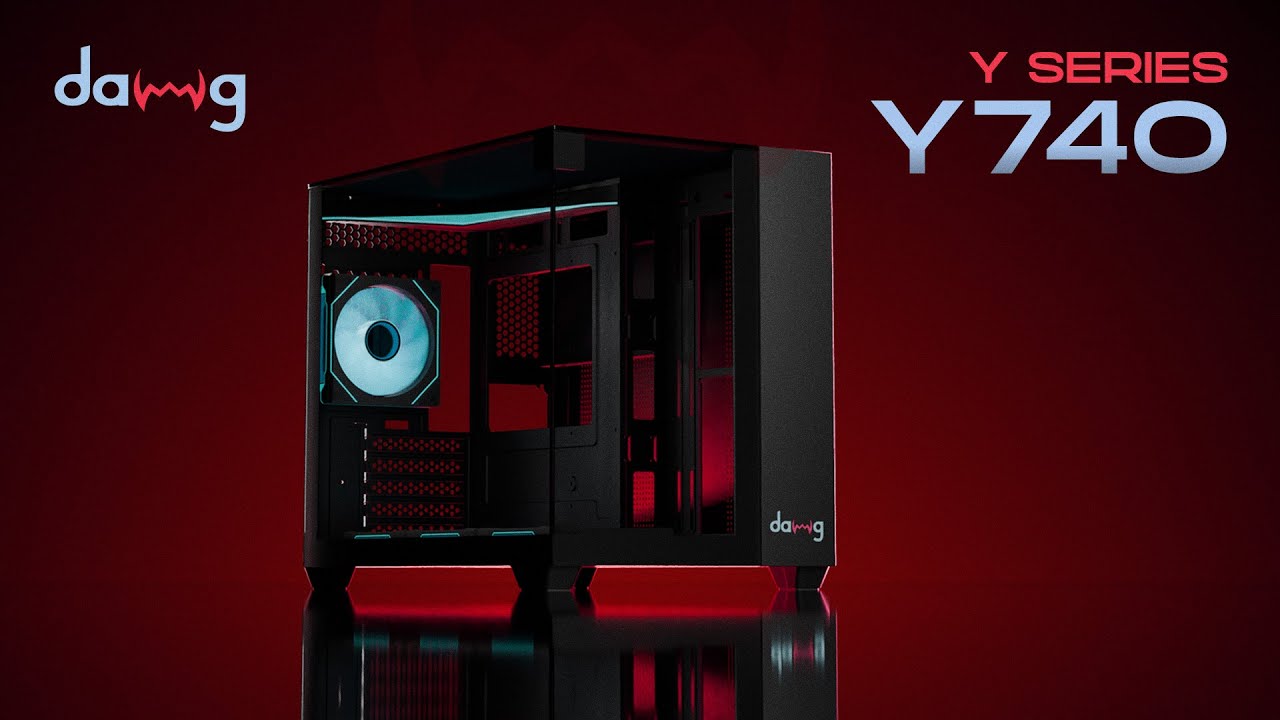

daWg | Y 740 | Cube

Features & Specs

Specifications
  • Model: Y740
  • Form Factor: Cube
  • Motherboard: mATX | ITX

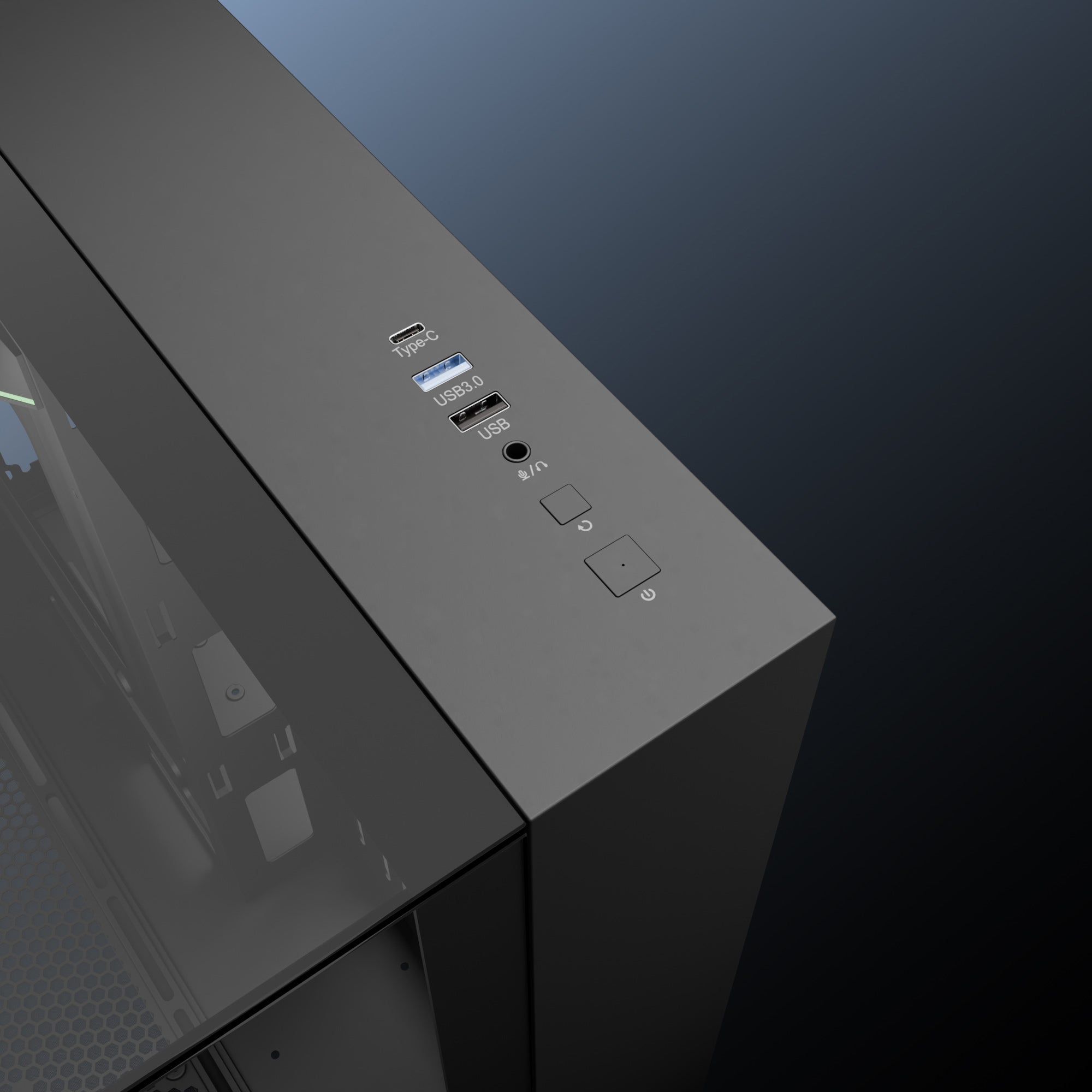

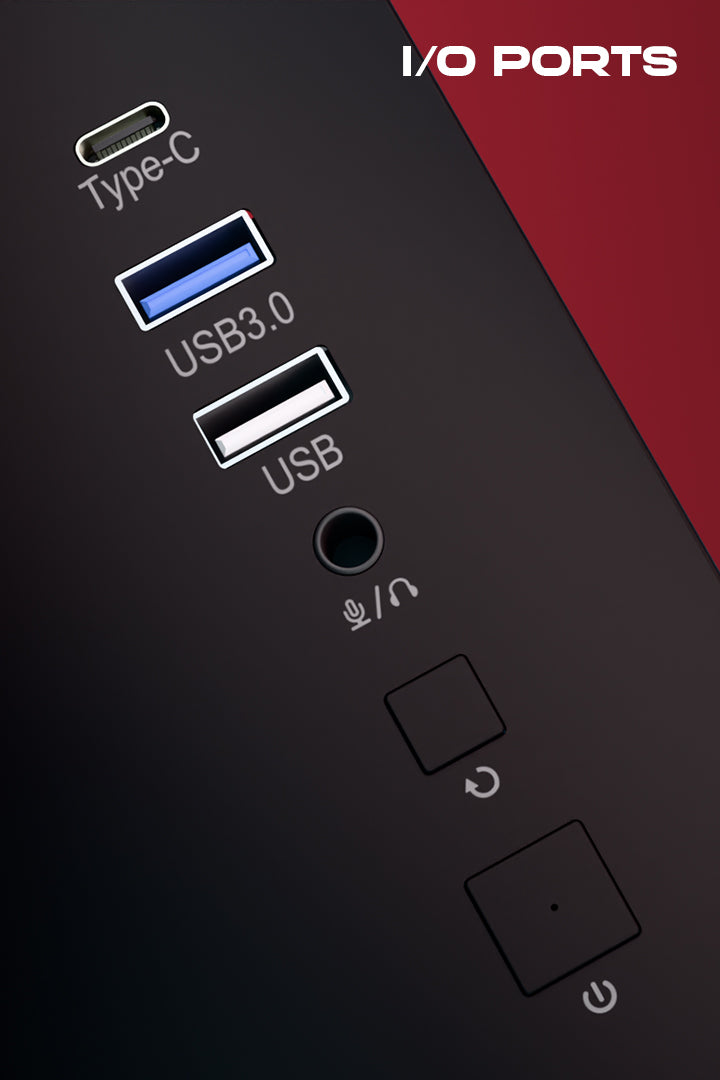

  • I/O Ports: Type C | USB 3.0 | USB | Headphone + Mic
  • Drive:
    – Config 1: HDD x 2 + SSD x 2
    – Config 2: HDD x 1 + SSD x 3
  • Fan Type: ARGB, Hexa Pattern, Center & Side Infinity Mirror Glow
  • Cooling Fans:
    – Rear: 120mm x 1
    – Bottom: 120mm x 3 (Reverse Blade)
    – Side: 120mm x 2 (optional) | 140mm x 2 (optional)
  • AIO:
    – Bottom: Up to 360mm
    – Side: Up to 280 mm
  • CPU Cooler Height: 160mm
  • GPU Length: 415mm

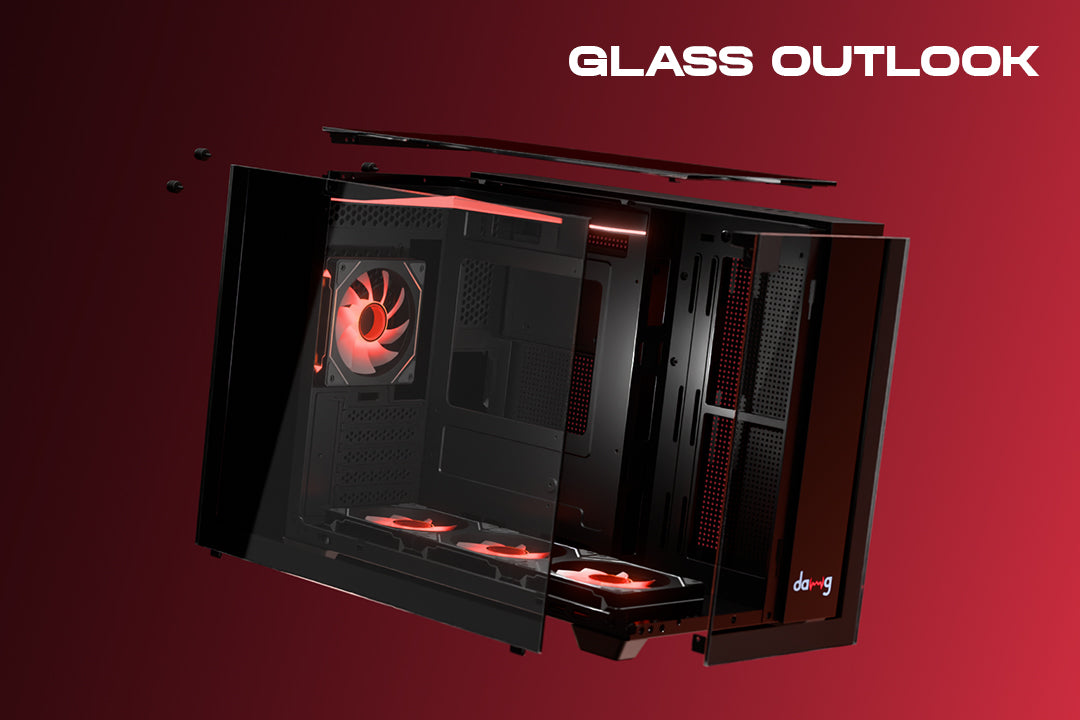

  • Panel Type: 3 Side Seamless Glass

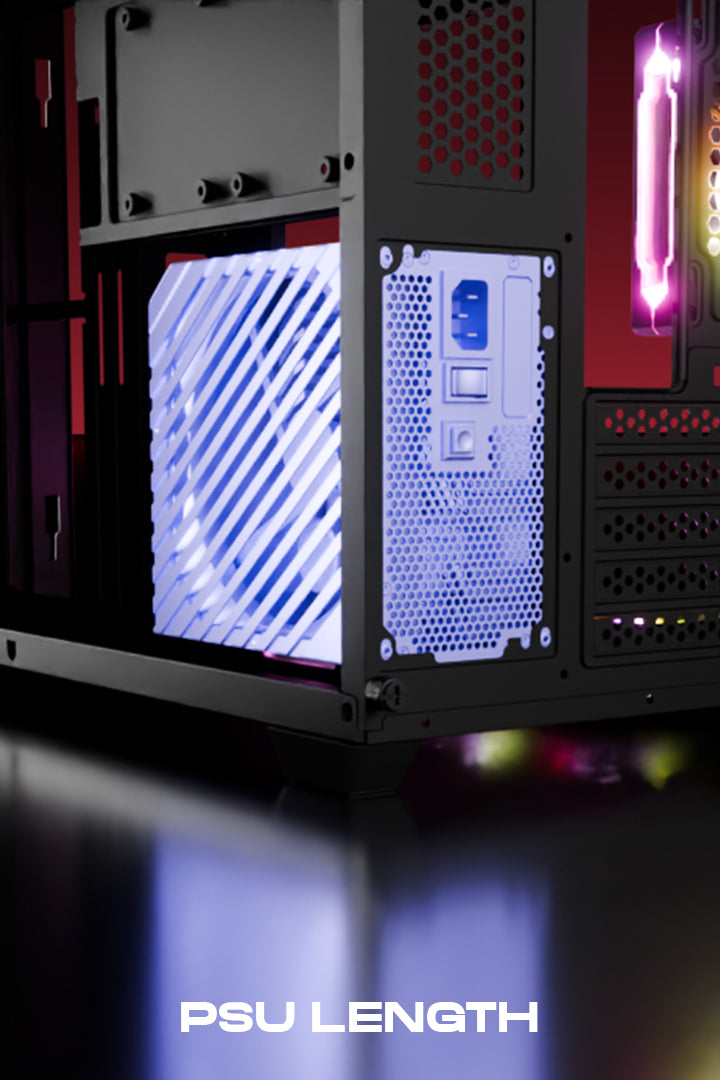

  • PSU: Separate Chamber, 240mm

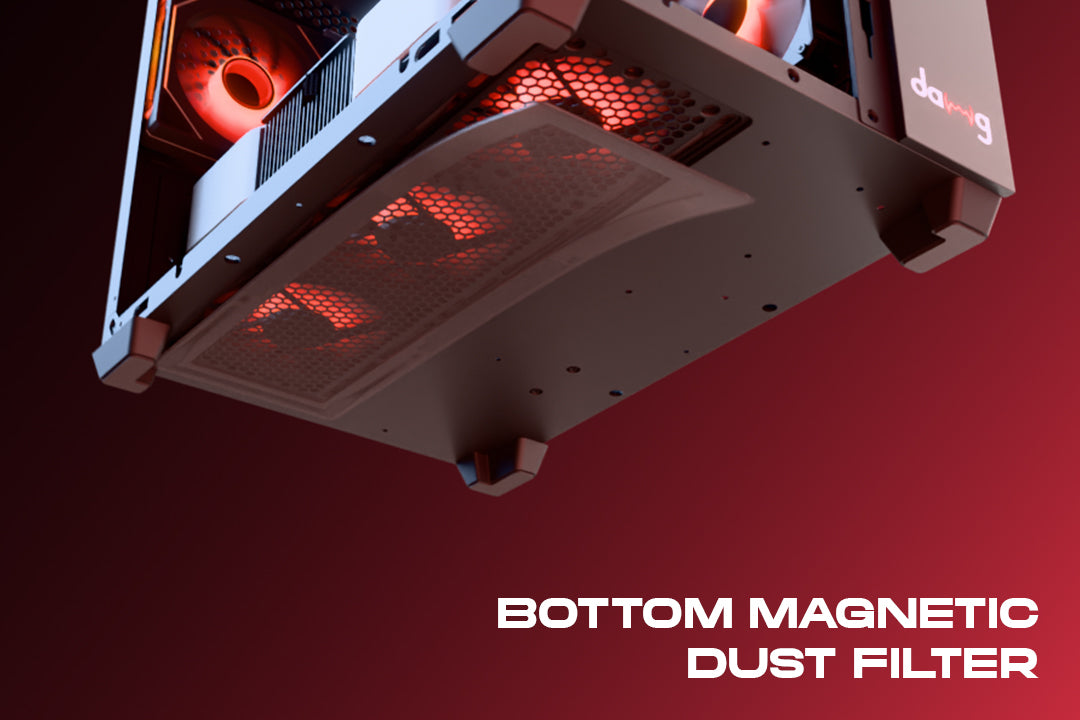

  • Dust Filter: Bottom Magnetic
  • PCIe Expansion: 5
  • Dimension (WxDxH): 28.5 x 42.6 x 37.5 cm
  • Weight: 6.9kg
Highlights

AIO Compatible
ARGB Sync Enabled
Pre-Installed ARGB Fans
Enhanced Air Flow
Silent Design
3 Side Seamless Glass
Dust Filter
Cable Management
Dual Chamber Build
Type-C

Description

Y 740 Cube Chassis supports mATX/ITX, features USB 3.0, Type-C port, enhanced airflow, silent design, three-side seamless glass panel, separate chamber PSU design, 160mm CPU cooler clearance, 415mm GPU length, pre-installed ARGB fans with infinity mirror glow, rear 120mm fan, bottom 120mm x 3 reverse blade fans, and optional side cooling fans. AIO supports up to 360mm (bottom) and 280mm (side).

FAQs

General

Q: Which motherboards are compatible with the Y740?
A: The Y740 supports mATX and ITX motherboards, ensuring flexibility for compact builds.

Q: What I/O ports are available on the Y740?
A: The Y740 includes Type-C, USB 3.0, USB, and a combined headphone/microphone jack.

Cooling & Airflow

Q: What cooling options are available in the Y740?
A: The Y740 is AIO compatible and features pre-installed ARGB fans for efficient cooling. It supports additional cooling options:

  • Rear: 120mm x 1
  • Bottom: 120mm x 3 (Reverse Blade)
  • Side: 120mm x 2 (Optional) | 140mm x 2 (Optional)
  • AIO Support: Up to 360mm on the bottom and up to 280mm on the side

Q: Does the Y740 have a dust filter?
A: Yes, the Y740 comes with a bottom magnetic dust filter to keep your system clean and running efficiently.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 160mm.

Q: What is the maximum GPU length supported?
A: The Y740 supports GPUs up to 415mm in length.

Q: What are the case dimensions and weight?
A: The Y740 measures 28.5 x 42.6 x 37.5 cm and weighs approximately 6.9 kg.

Storage & Expansion

Q: What storage options does the Y740 support?
A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 2 + SSD x 2
  • Configuration 2: HDD x 1 + SSD x 3

Q: How many PCIe expansion slots are available?
A: The Y740 includes 5 PCIe expansion slots.

Design & Features

Q: Does the Y740 have RGB lighting?
A: Yes, the case features ARGB Sync, a Hexa pattern, and center & side infinity mirror glow for enhanced aesthetics.

Q: What materials are used in the Y740?
A: The case features 3-side seamless glass for durability and an immersive view of internal components.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans. Accessories shown in images may not be included.

Q: Is cable management supported?
A: Yes, the Y740 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
