• Model: Y720
• Form Factor: Mid Tower
• Motherboard: ATX | mATX
• I/O Ports: Type-C | USB 3.0 | USB x 2 | Headphone | MIC
• Drive:
  – Config 1: HDD x 2 + SSD x 3
  – Config 2: HDD x 3 + SSD x 1
• Fan Type: Center Infinity Mirror, Inner Glow, ARGB
• Cooling Fans:
  – Front: 120mm x 3 | 140mm x 3 (Optional)
  - Rear: 120mm x 1
  – Top: 120mm x 3 (Optional) | 140mm x 2 (optional)
  – Bottom: 120mm x 3 (Optional)
  – Side: 120mm x 2 (Optional)
• AIO:
  – Front: Upto 360mm
  – Rear: 120mm
  – Top: Upto 360mm
• CPU Cooler Height: 164mm
• GPU Length: 390mm

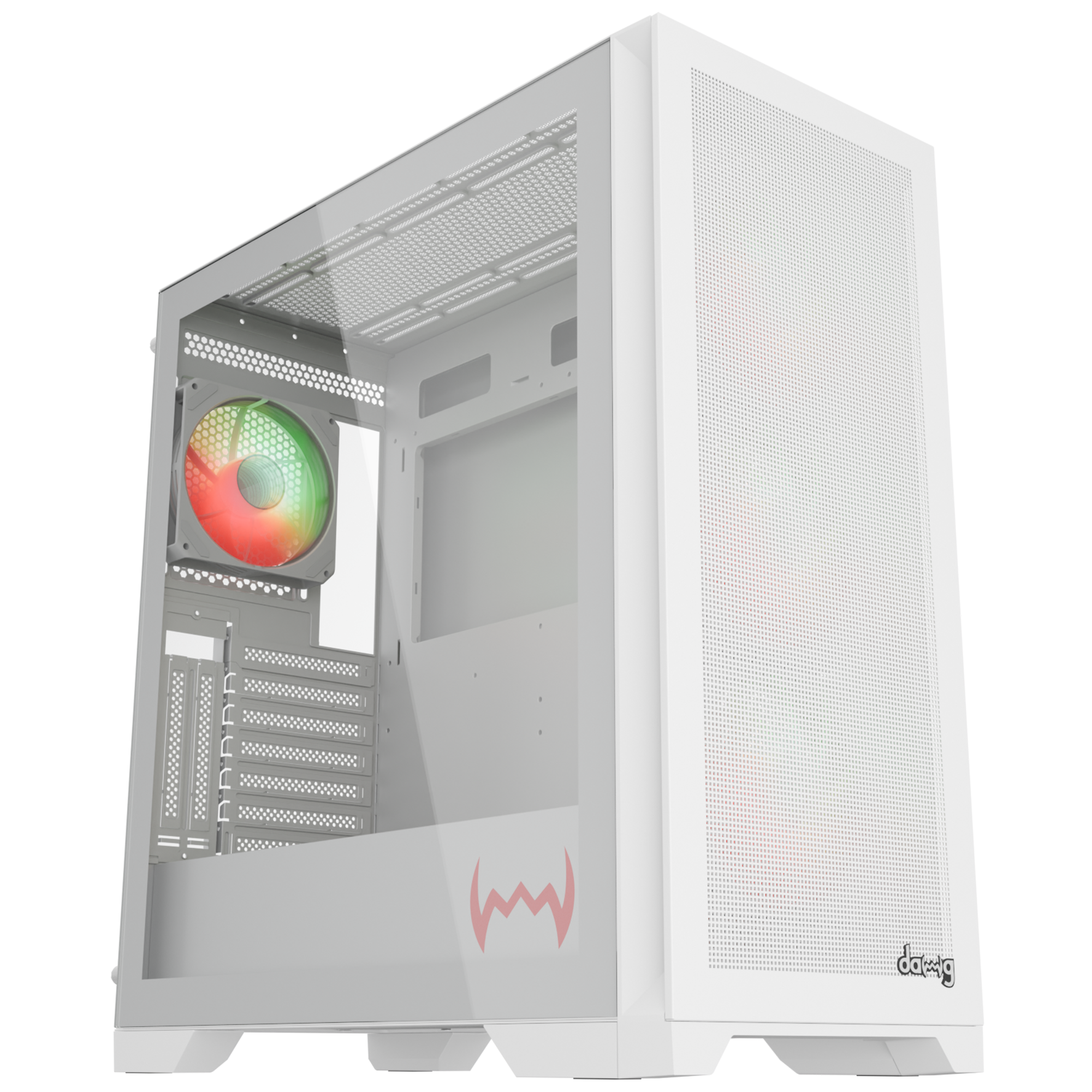

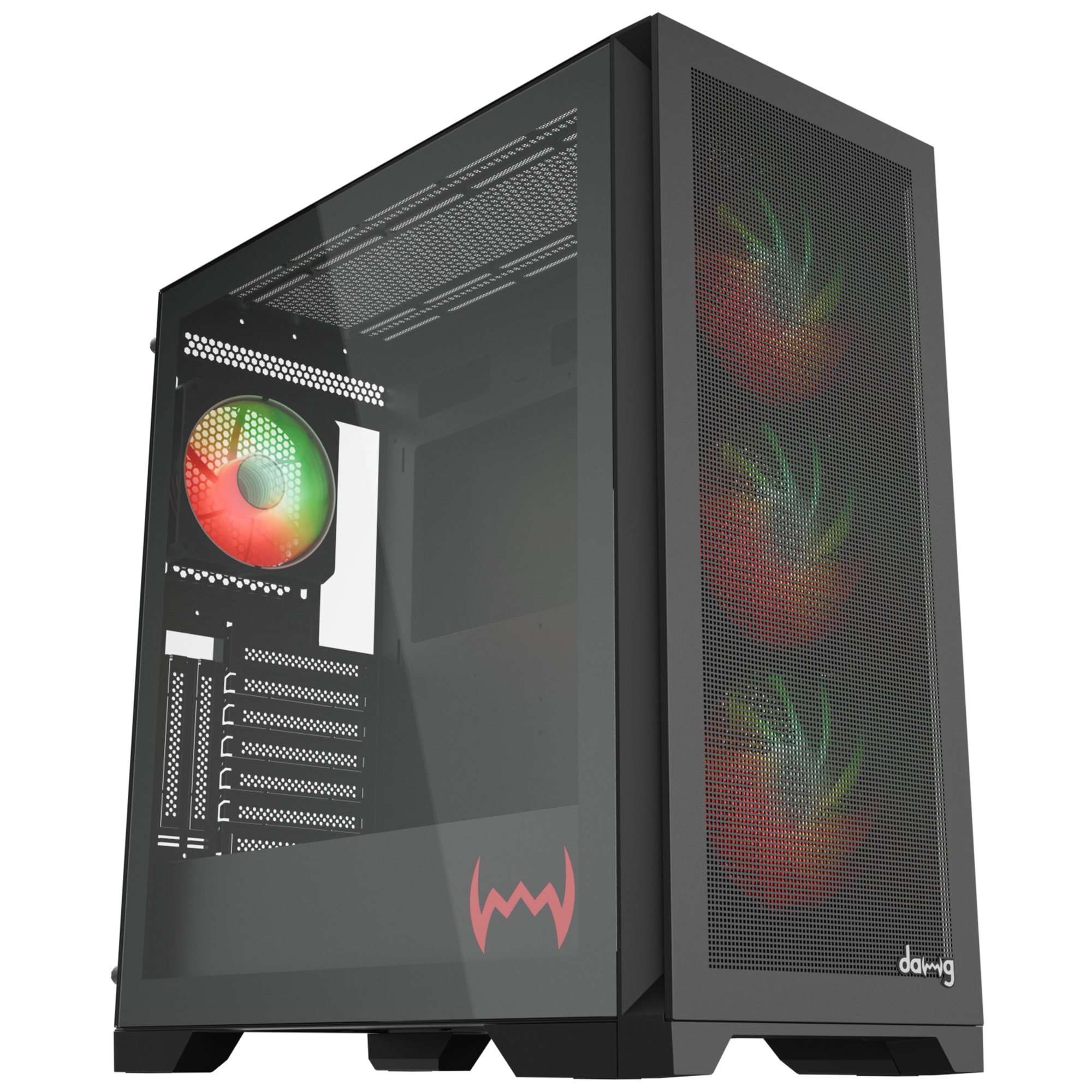

• Side Panel / Panel Type: Tempered Glass
• PSU: Bottom
• Dust Filter: Top (Magnetic), Bottom
• PCIe Expansion: Horizontal: 7
• Dimension (WxDxH): 21.5 x 47.5 x 48.8 cm
• Weight: 7.5kg

General

Q: Which motherboards are compatible with the Y 720?
A: The Y 720 supports ATX and mATX motherboards, giving you flexibility for different builds.

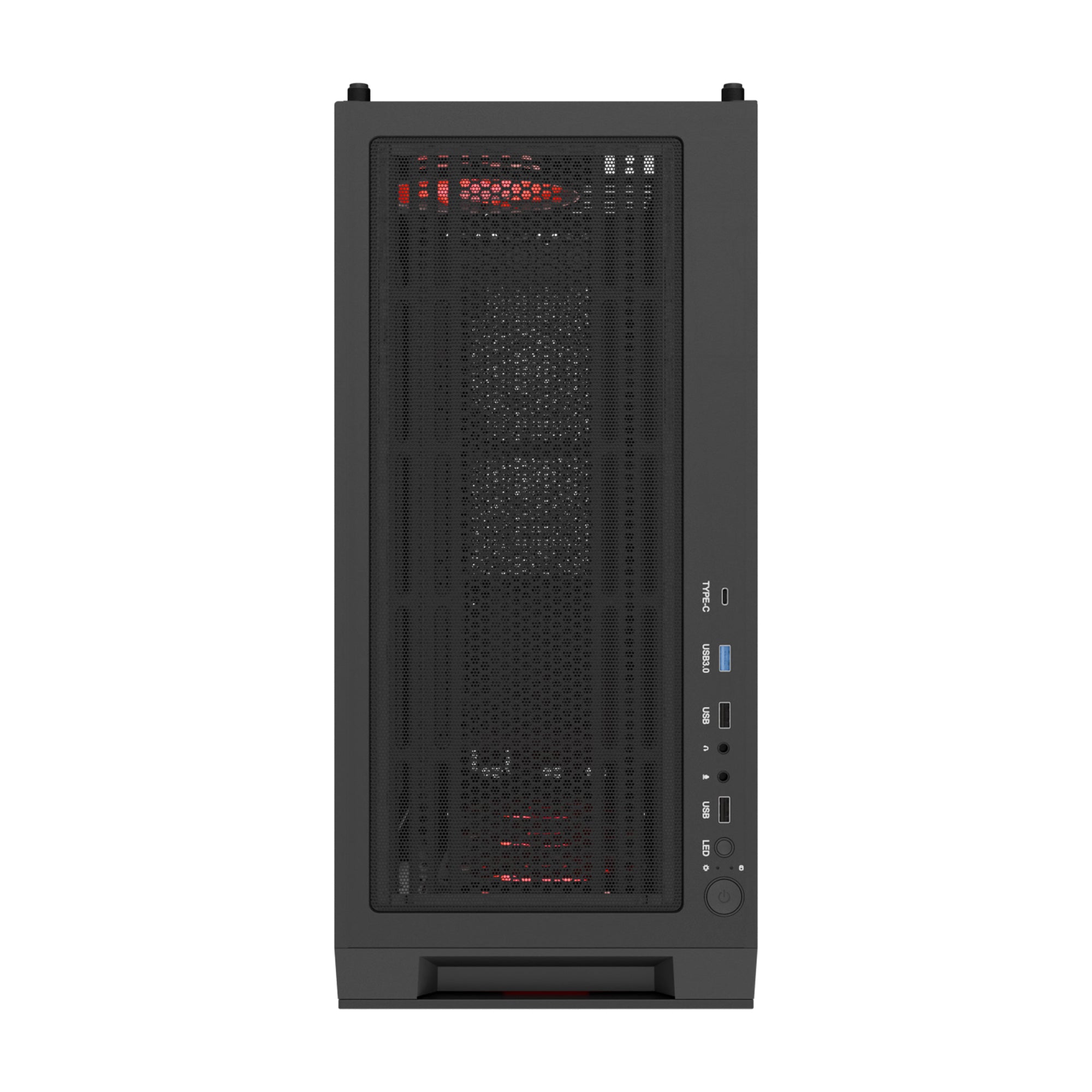

Q: What I/O ports are available on the Y 720?
A: The case includes USB Type-C, USB 3.0, two additional USB ports, plus a headphone and mic jack.

Cooling & Airflow

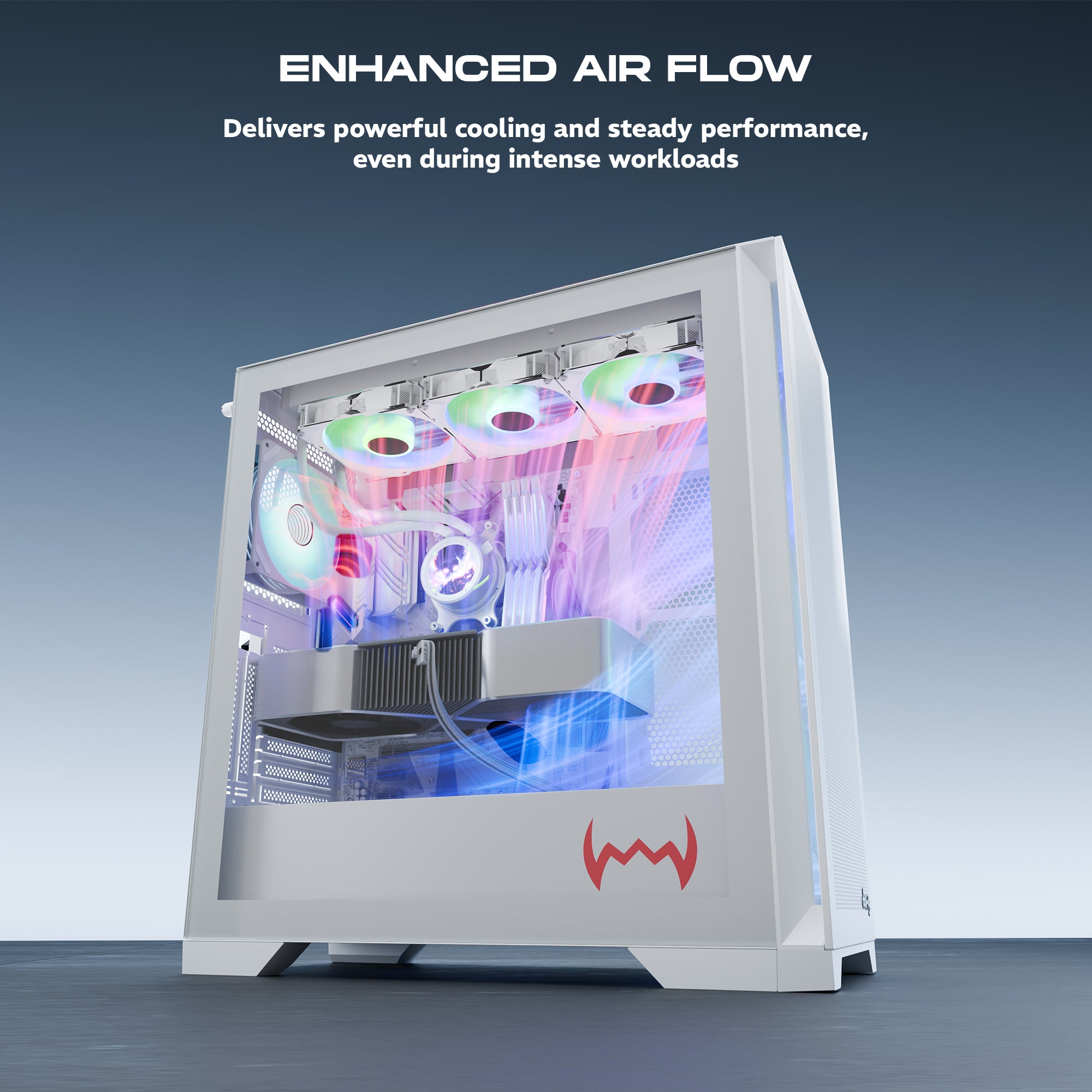

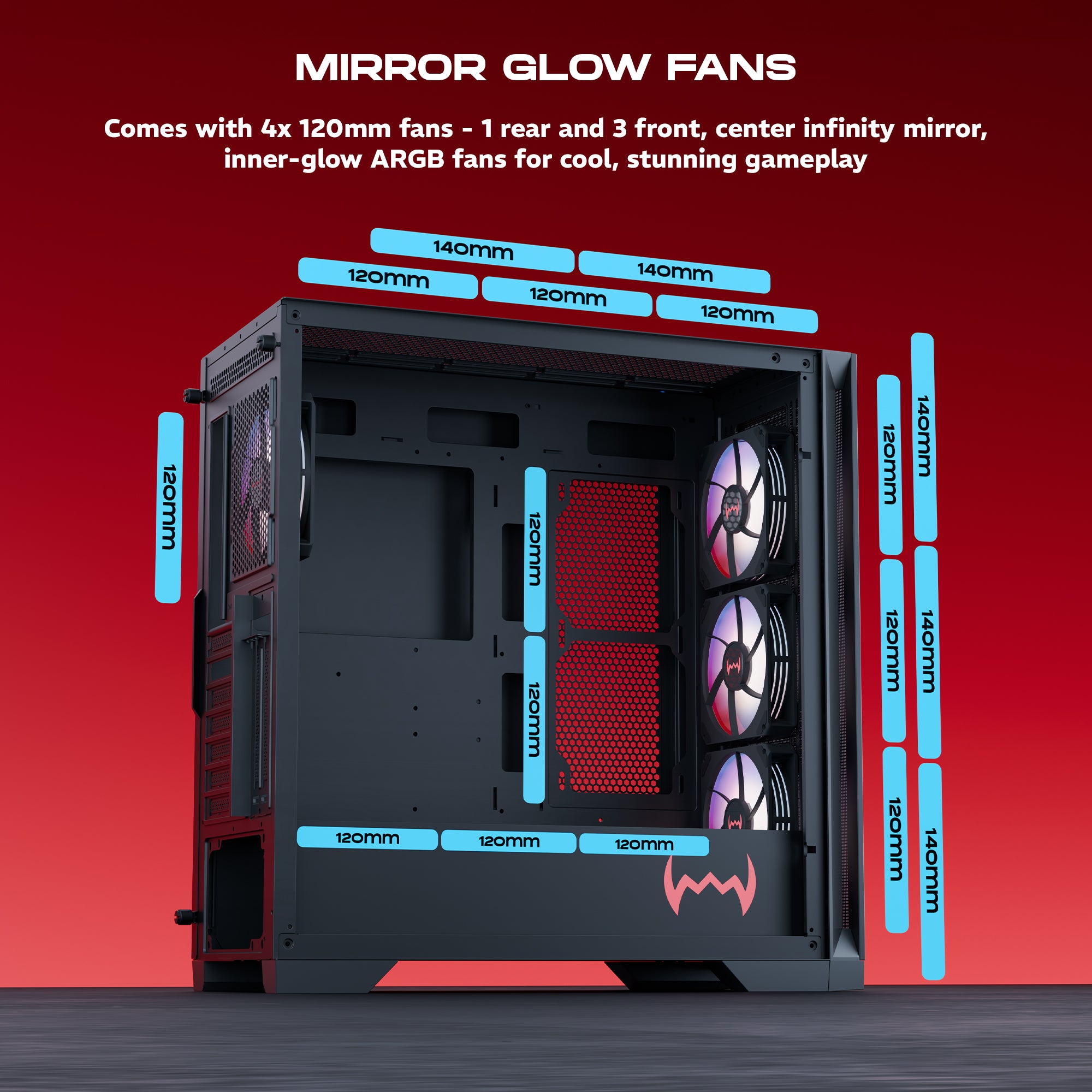

Q: What cooling options are available in the Y 720?
A: The Y 720 is AIO compatible and comes with pre-installed ARGB fans.

It supports additional fans/radiators as follows:

• Front: up to 3 × 120 mm (or optionally 3 × 140 mm)
• Rear: 1 × 120 mm
• Top: optional up to 3 × 120 mm or 2 × 140 mm
• Bottom: optional up to 3 × 120 mm
• Side: optional up to 2 × 120 mm (or alternate configurations depending on layout)

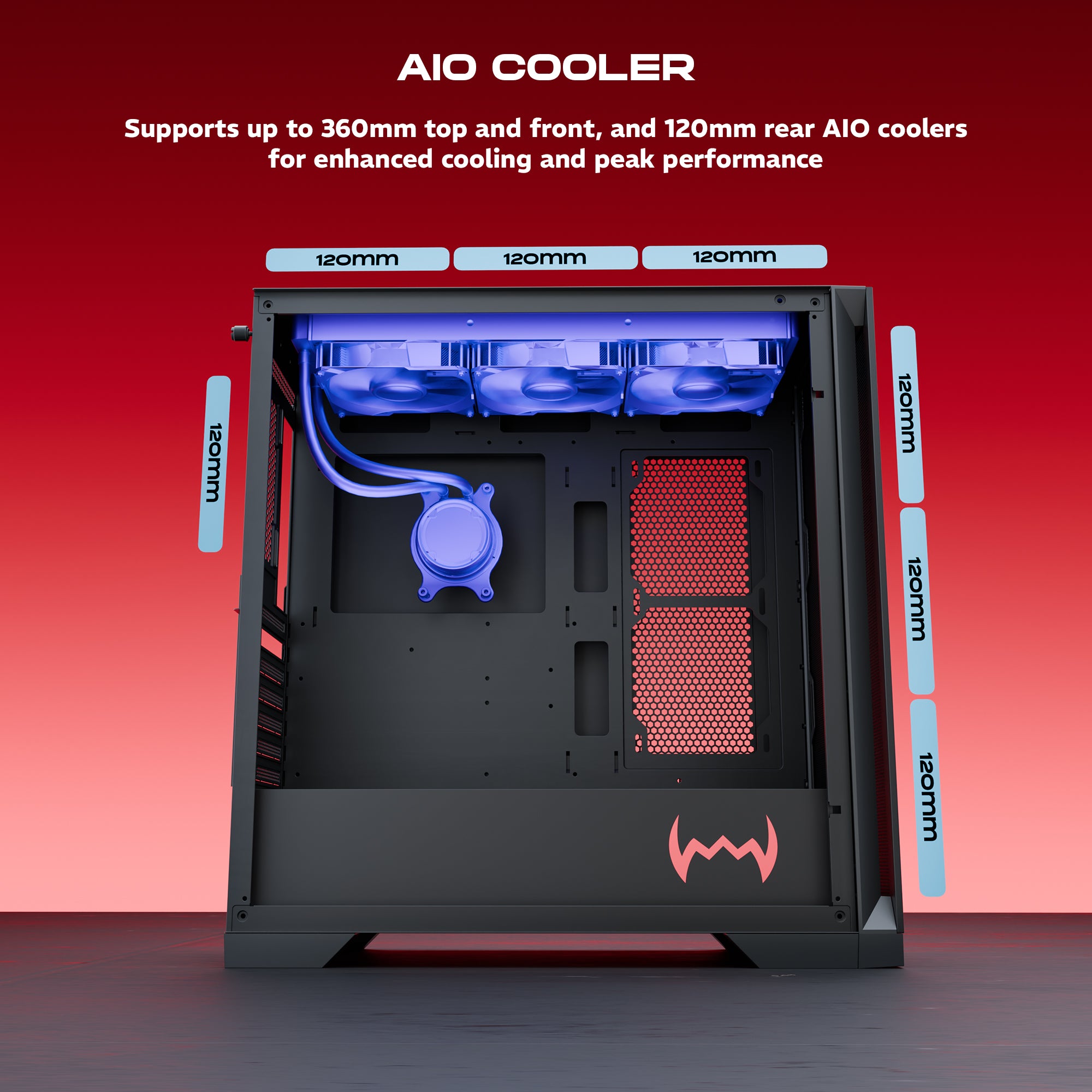

AIO / Radiator Support:

• Front or Top: up to 360 mm radiator.
• Rear: supports 120 mm radiator.

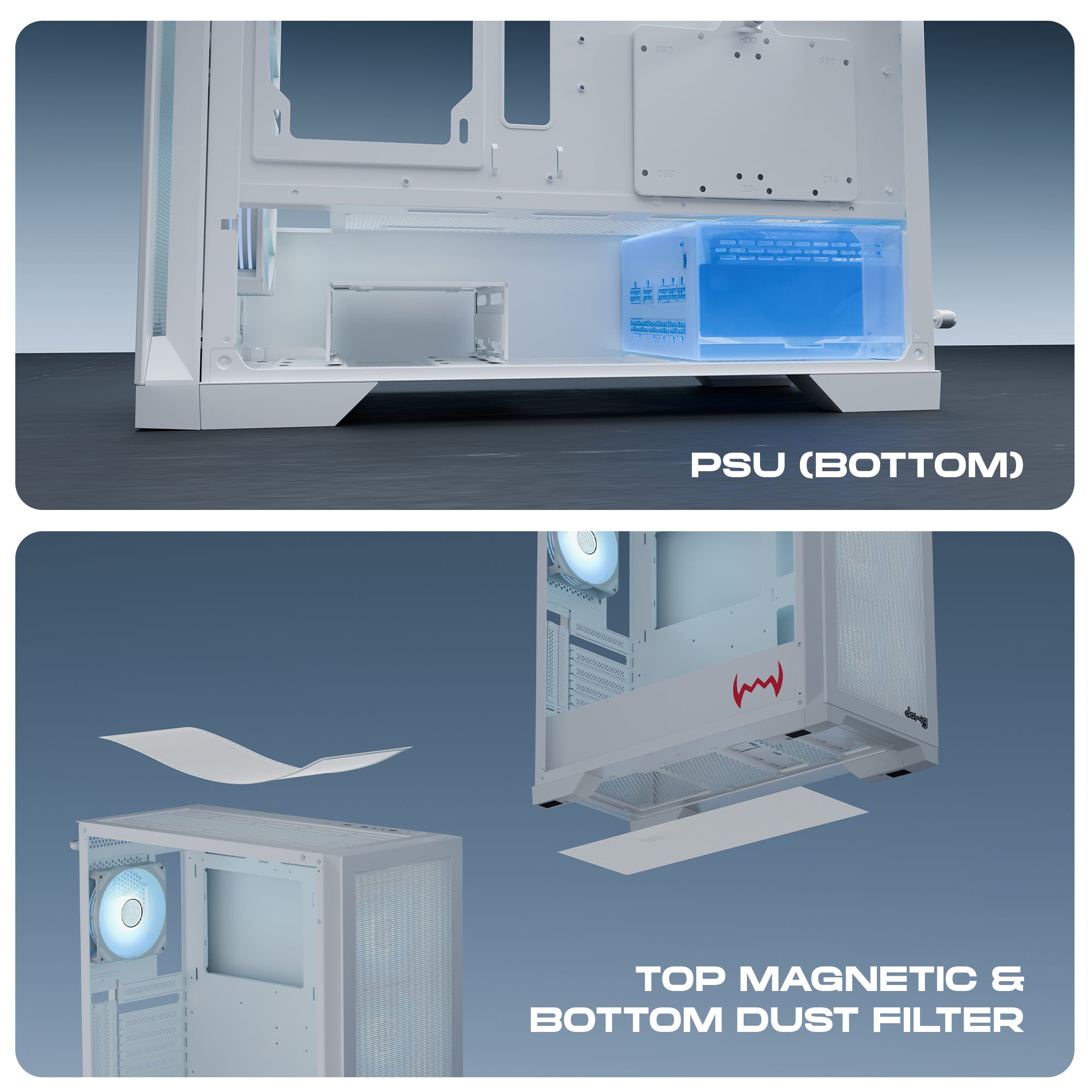

Q: Does the Y 720 have dust filters?
A: Yes, there are magnetic dust filters on the top and bottom of the case.

Compatibility & Dimensions

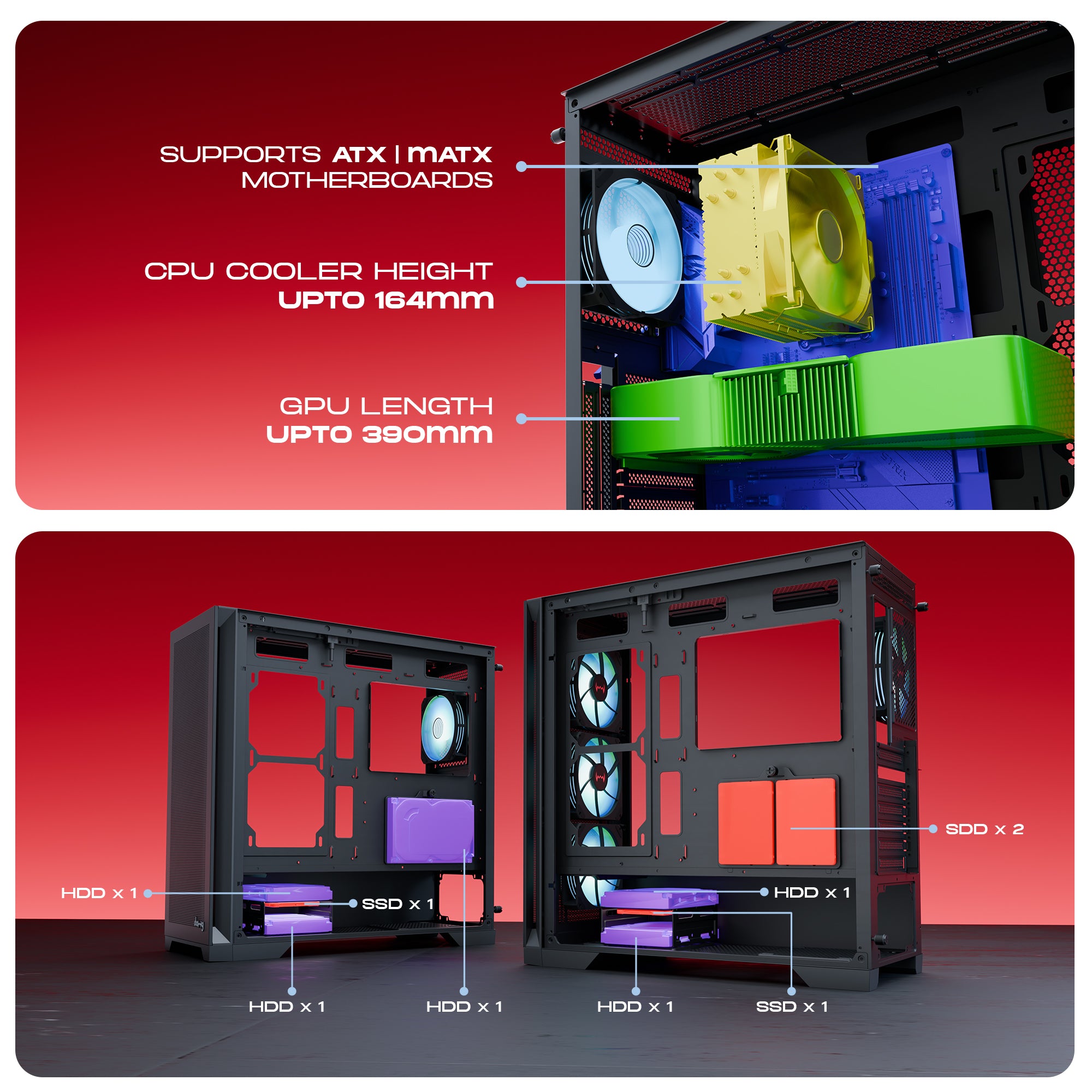

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 164 mm.

Q: What is the maximum GPU length supported?
A: The Y 720 supports GPUs up to 390 mm in length.

Q: What are the case dimensions and weight?
A: The case measures 21.5 × 47.5 × 48.8 cm (W × D × H) and weighs approximately 7.5 kg.

Storage & Expansion

Q: What storage options does the Y 720 support?
A: There are two drive configuration options:

• Config 1: HDD × 2 + SSD × 3
• Config 2: HDD × 3 + SSD × 1

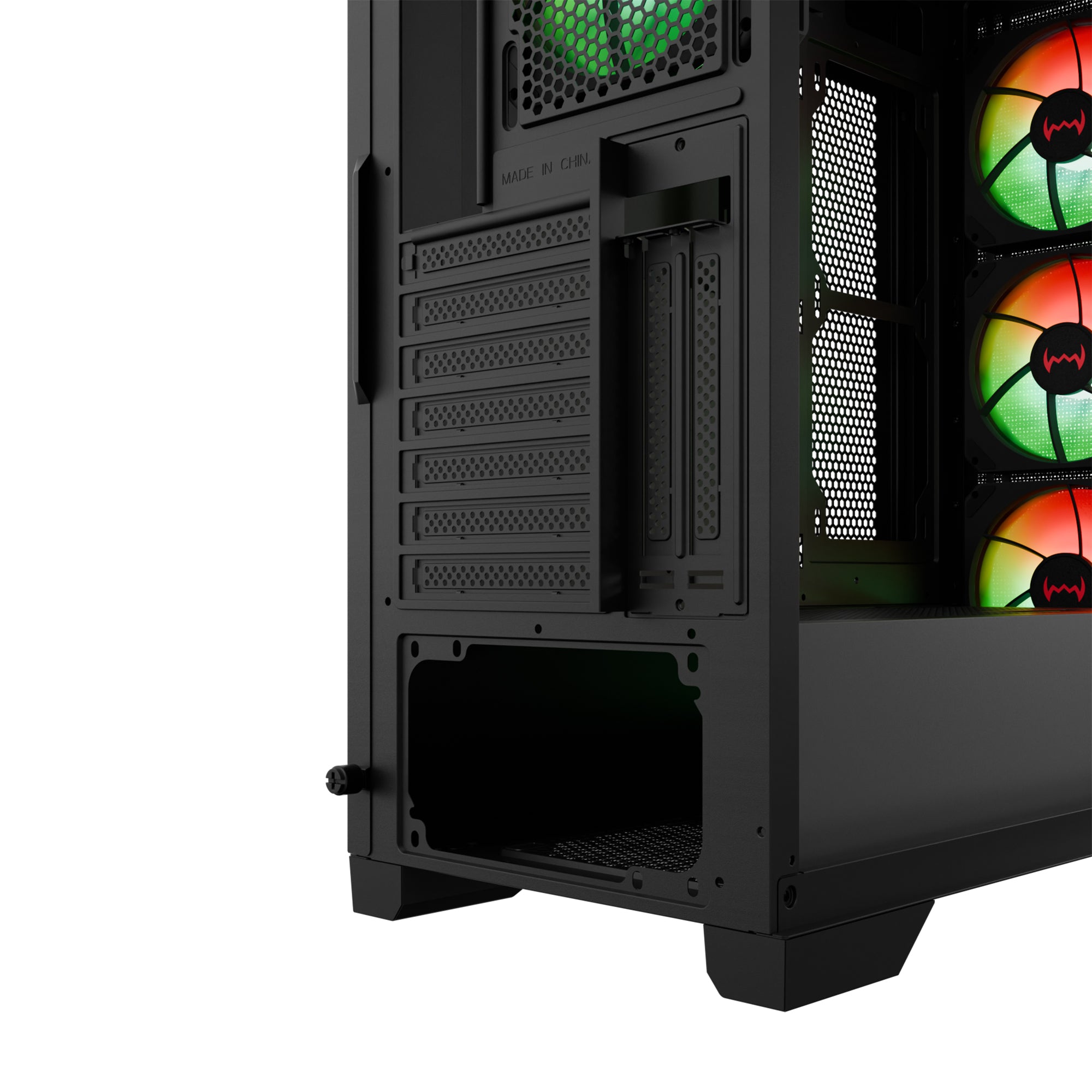

Q: How many PCIe expansion slots are available?
A: The case provides 7 horizontal PCIe expansion slots.

Design & Features

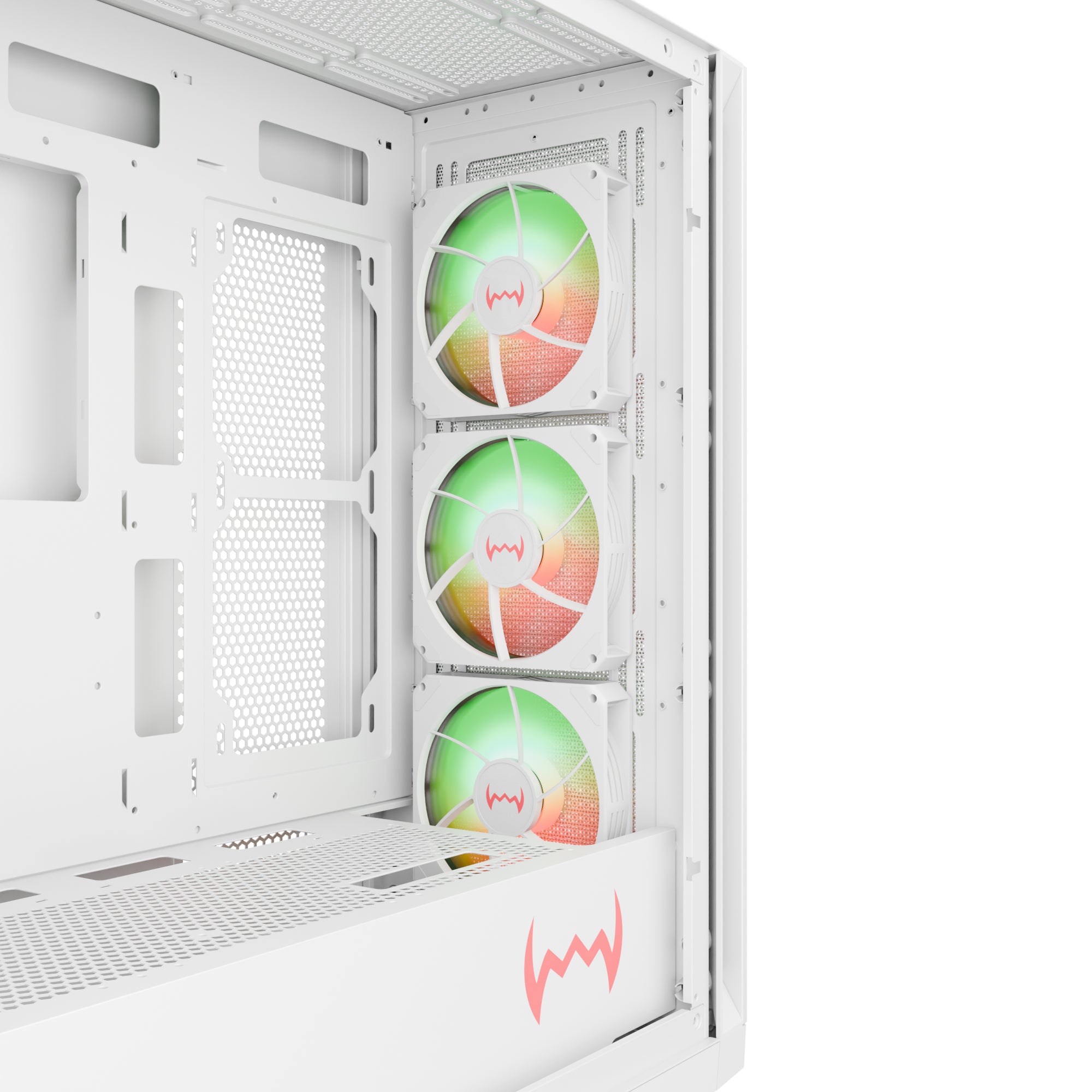

Q: Does the Y 720 have RGB lighting?
A: Yes  it features ARGB lighting with a “center infinity mirror” and “inner glow” design for enhanced aesthetics. d

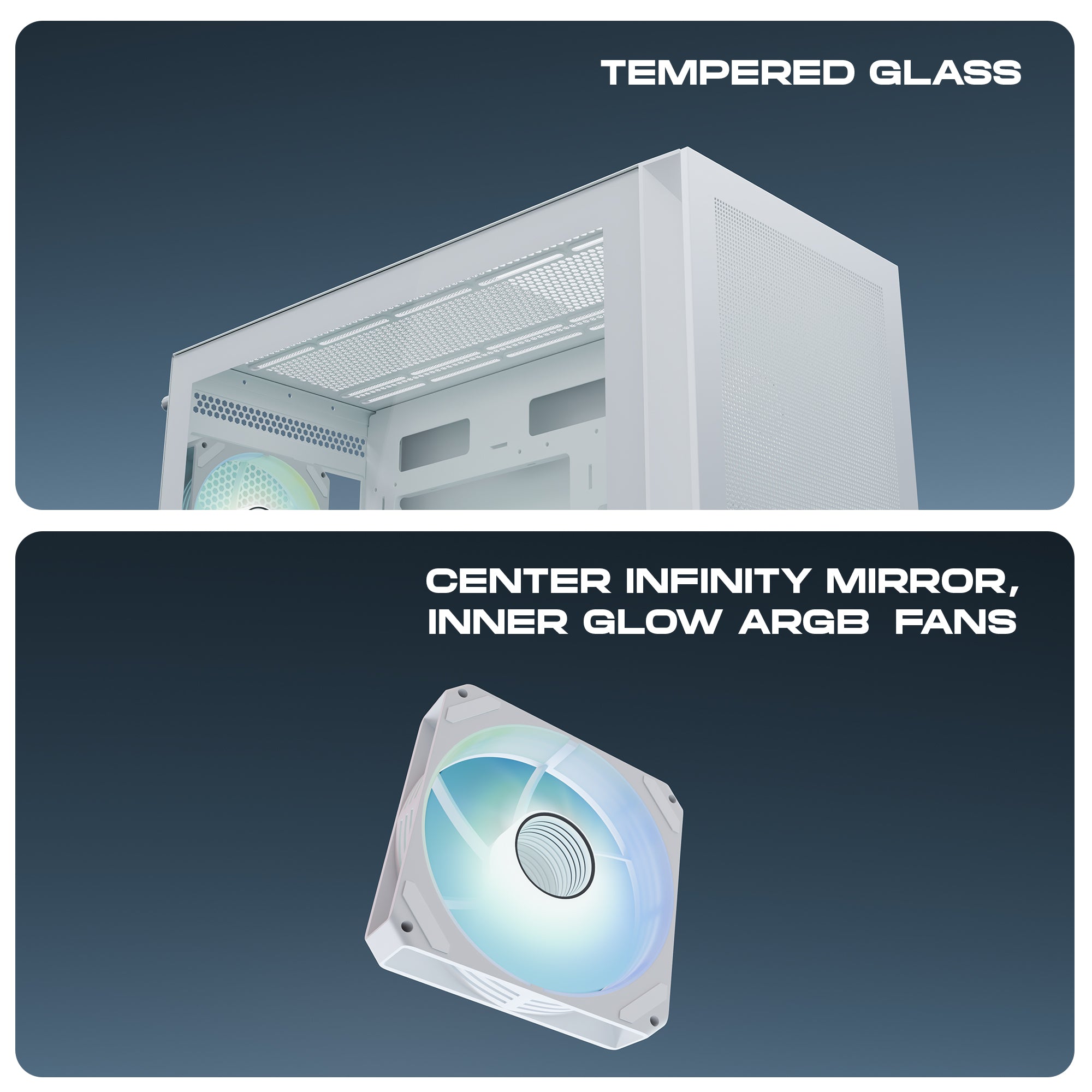

Q: What materials are used in its panels?
A: The case comes with a tempered glass side panel, giving a clear view of the internal components, along with a sturdy metal chassis.

Q: Does it support vertical GPU mounting?
A: Yes, the Y 720 supports vertical GPU mounting.

Installation & Setup

Q: What does the package include?
A: The package contains the chassis alone (no motherboard / PSU / GPU / cooling components), along with the pre-installed ARGB fans.

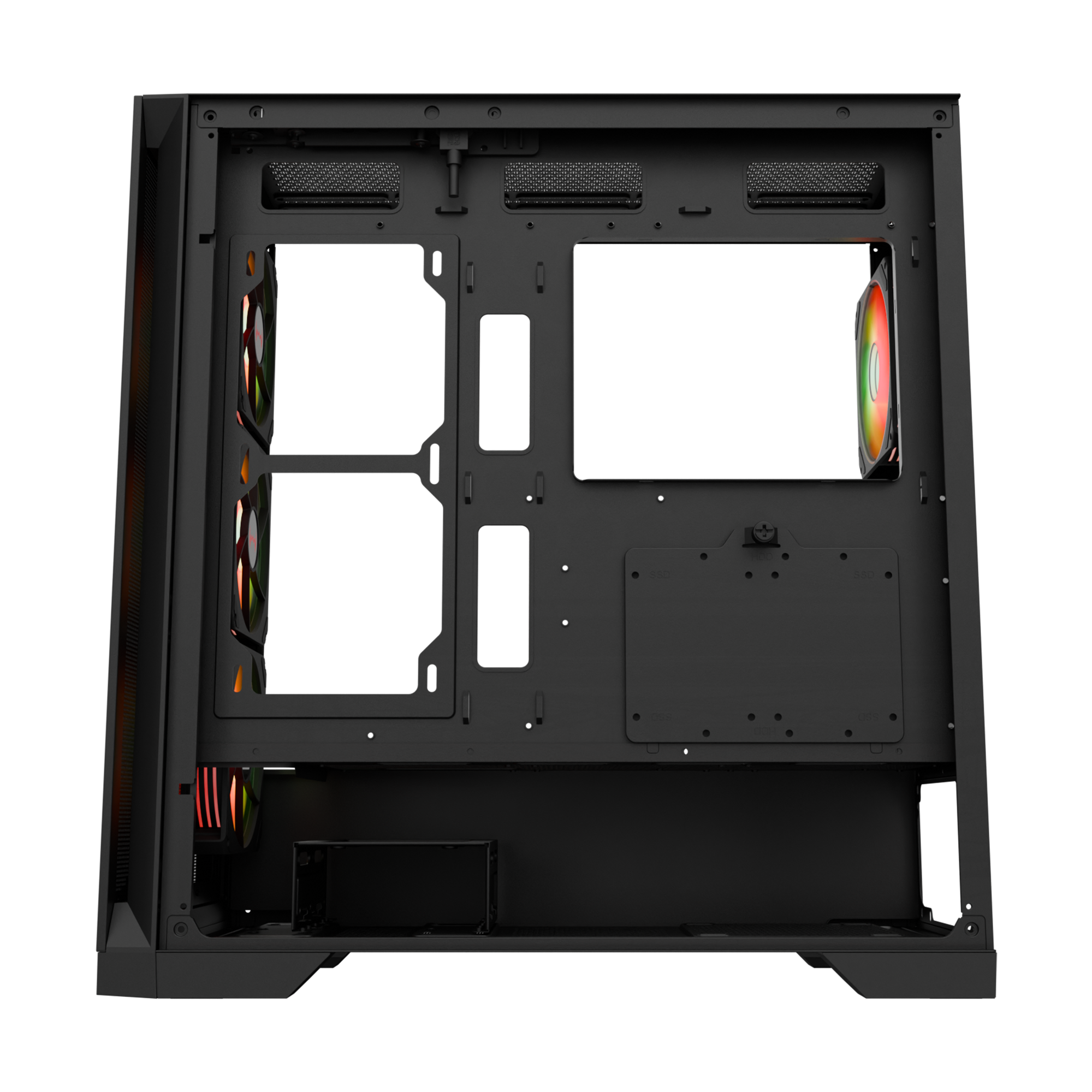

Q: Is cable management supported?
A: Yes, the Y 720 includes a PSU shroud and space for cable routing, ensuring a clean and organized build.
