daWg | Full tower

X 540

Sale price₹ 5,599Regular price ₹ 10,499

X 540 Full Tower Chassis supports EATX/ATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, tempered glass side panel, PSU shroud, 170mm CPU cooler clearance, 425mm GPU length, bottom PSU, pre-installed ARGB fan, rear 120mm fan, front 120mm x 3 fans, and optional top and bottom cooling fans. AIO support up to 360mm (front and top).

Color
Color: Black
Buy from mdcomputers.in

Pairs well with

Highlights

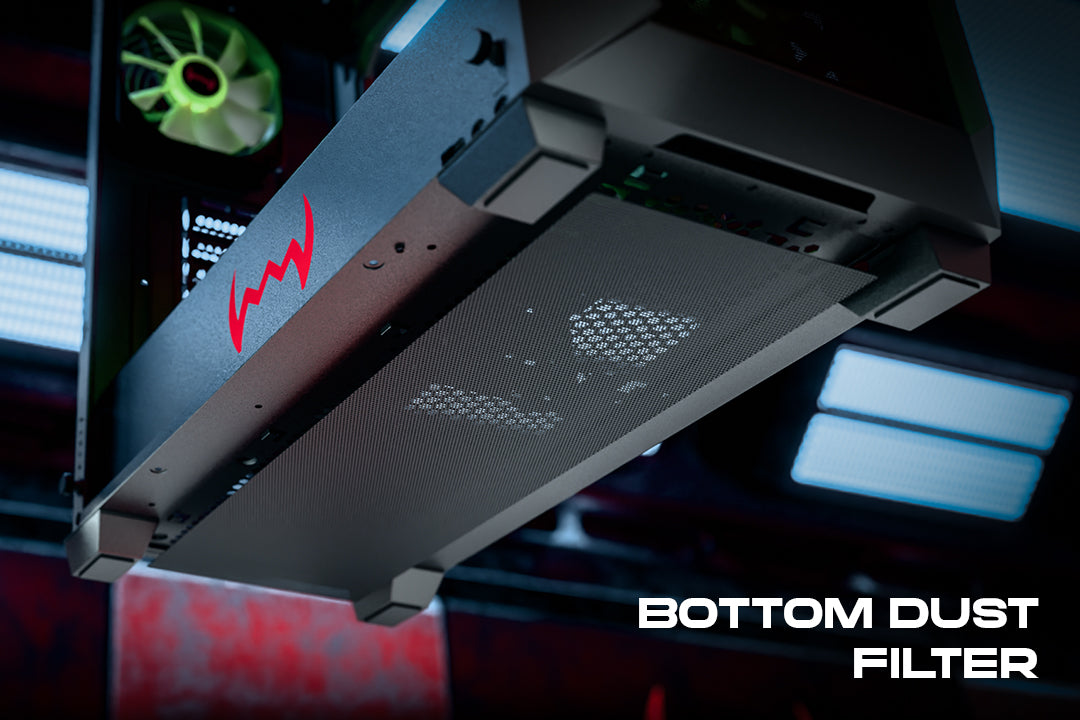

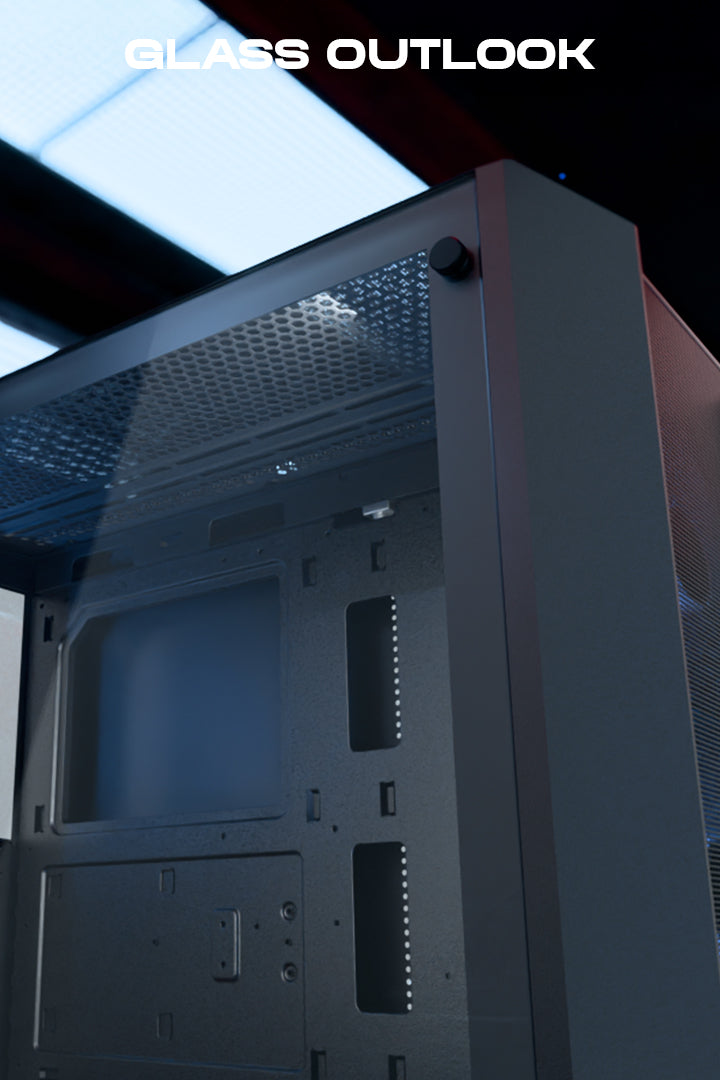

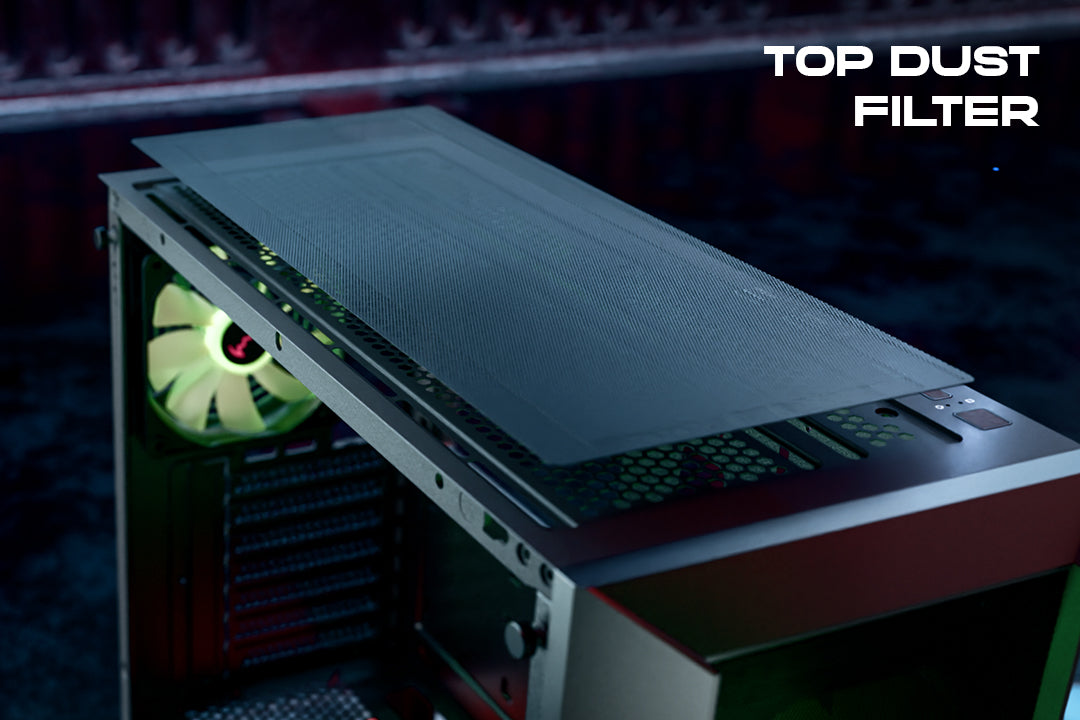

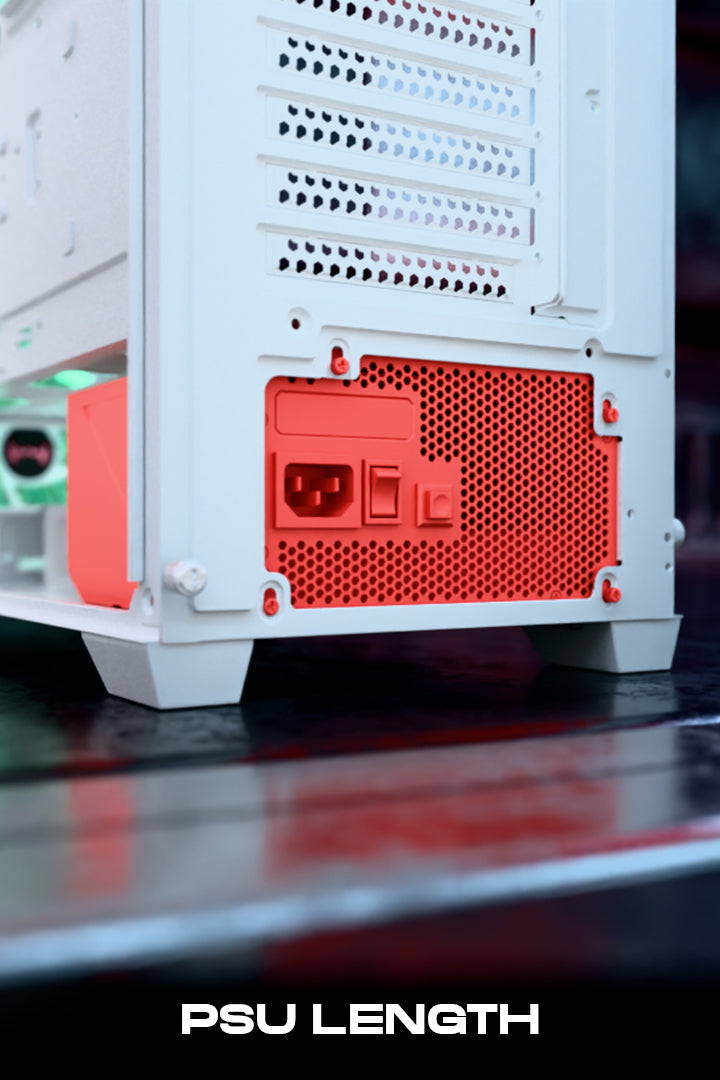

Supports up to a 265mm(Max.) bottom-mounted PSU with top magnetic and bottom magnetic dust filters for optimal airflow. The sleek side glass panel offers a glassy outlook, while USB 3.0, dual USB port, and audio(Headphone+mic) jack ensure easy connectivity.

Enhanced Airflow

Designed for exceptional thermal management, this system ensures superior cooling and stability even under intense performance demands.

 Abundant Airflow

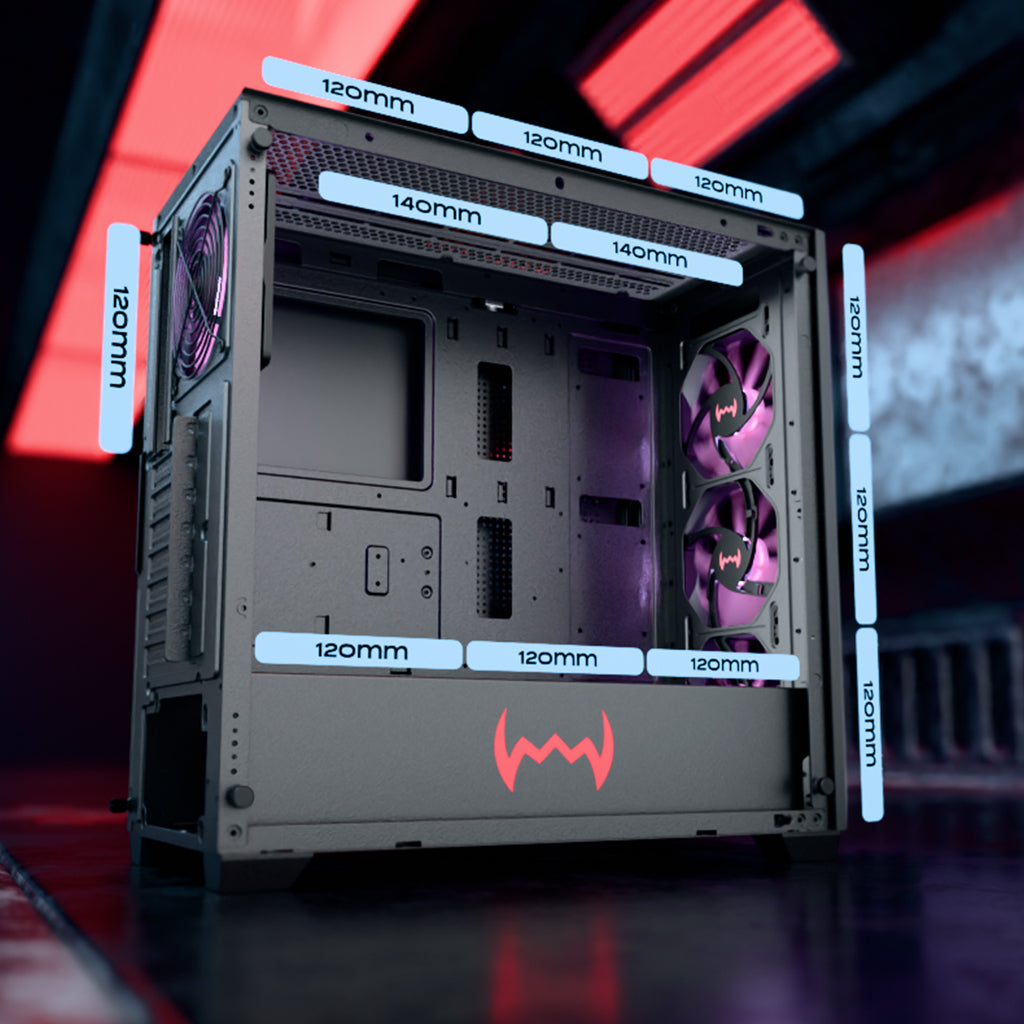

Pre-installed with four 120mm fans, including one at the rear and three at the front, with additional space available for enhanced cooling expansion.

 AIO Compatible

Compatible with up to 360mm AIO coolers on both the top and front, ensuring superior cooling efficiency and peak performance.

Motherboard Support

A high-performance chassis meticulously crafted to support EATX and ATX motherboards with precision and reliability.

Device Support

Built for high performance, this chassis supports up to 425mm GPUs, and up to 170mm CPU coolers for superior efficiency!

Plenty of Storage

Tailor your storage setup with two versatile configurations: 1 HDD + 3 SSDs or 2 HDDs + 2 SSDs, ensuring maximum flexibility.

Multi-Connectivity

Experience seamless connectivity with USB 3.0, dual USB ports, and a dedicated headphone & mic jack for enhanced accessibility.

Centre-Glow ARGB Fans

Center-glow ARGB fans provide dynamic illumination and superior cooling, enhancing the gaming experience with both style and performance.

daWg | X 540 | Full tower

Features & Specs

Specifications
  • Model: X 540
  • Form Factor: Full Tower
  • Motherboard: EATX | ATX
  • I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
  • Drive:
    – Config 1: HDD x 1 + SSD x 3
    – Config 2: HDD x 2 + SSD x 2
  • Fan Type: Center Glow ARGB Fans
  • Cooling Fans:
    – Front: 120mm x 3
    – Rear: 120mm x 1
    – Top: 120mm x 3 (optional) | 140mm x 2 (optional)
    – Bottom: 120mm x 3 (optional)
  • AIO:
    – Front: Up to 360mm
    – Top: Up to 360mm
  • CPU Cooler Height: 170mm
  • GPU Length: 425mm
  • Side Panel: Tempered Glass
  • PSU: Bottom, 265mm
  • Dust Filter: Magnetic, Top & Bottom
  • PCIe Expansion: 7
  • Dimension (WxDxH): 21.8 x 46.5 x 45.5 cm
  • Weight: 6kg
Highlights

AIO Compatible
ARGB Sync Enabled
Pre-Installed ARGB Fans
Enhanced Air Flow
Silent Design
Tempered Glass
PSU Shroud
Dust Filters
Cable Management
Robust Build

Description

X 540 Full Tower Chassis supports EATX/ATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, tempered glass side panel, PSU shroud, 170mm CPU cooler clearance, 425mm GPU length, bottom PSU, pre-installed ARGB fan, rear 120mm fan, front 120mm x 3 fans, and optional top and bottom cooling fans. AIO support up to 360mm (front and top).

FAQs

General

Q: Which motherboards are compatible with the X540?
A: The X540 supports EATX and ATX motherboards, ensuring flexibility for high-performance builds.

Q: What I/O ports are available on the X540?
A: The X540 includes USB 3.0, USB x 2, and a dedicated headphone & microphone jack.

Cooling & Airflow

Q: What cooling options are available in the X540?
A: The X540 is AIO compatible and features pre-installed ARGB fans for efficient cooling. It supports additional cooling options:

  • Front: 120mm x 3
  • Rear: 120mm x 1
  • Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
  • Bottom: 120mm x 3 (Optional)
  • AIO Support: Up to 360mm on the front and up to 360mm on the top

Q: Does the X540 have a dust filter?
A: Yes, the X540 comes with top and bottom magnetic dust filters to keep your system clean and running efficiently.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 170mm.

Q: What is the maximum GPU length supported?
A: The X540 supports GPUs up to 425mm in length.

Q: What are the case dimensions and weight?
A: The X540 measures 21.8 x 46.5 x 45.5 cm and weighs approximately 6 kg.

Storage & Expansion

Q: What storage options does the X540 support?
A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 1 + SSD x 3
  • Configuration 2: HDD x 2 + SSD x 2

Q: How many PCIe expansion slots are available?
A: The X540 includes 7 PCIe expansion slots.

Design & Features

Q: Does the X540 have RGB lighting?
A: Yes, the case features ARGB Sync, center glow ARGB fans, and a PSU shroud for an enhanced aesthetic.

Q: What materials are used in the X540?
A: The case features tempered glass for durability and a premium look.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans. Accessories shown in images may not be included.

Q: Is cable management supported?
A: Yes, the X540 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
