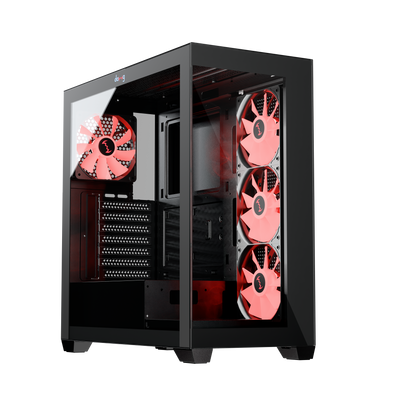

daWg X 520 Black Mid tower chassis , angled view shows Chassis design

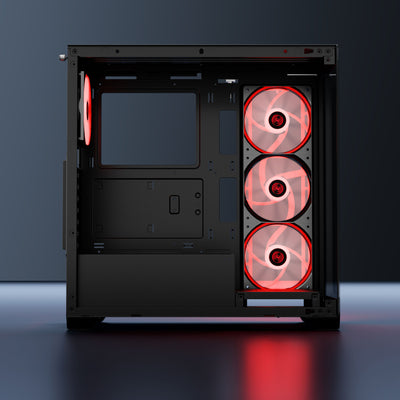

daWg X 520 Black Mid tower chassis , Side view shows the internal structure

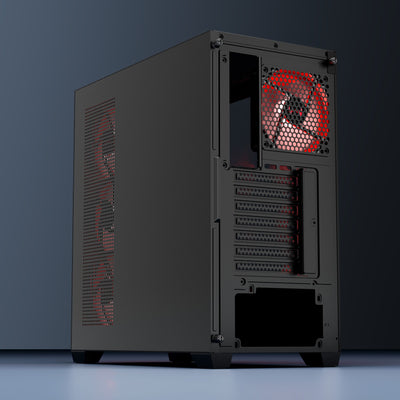

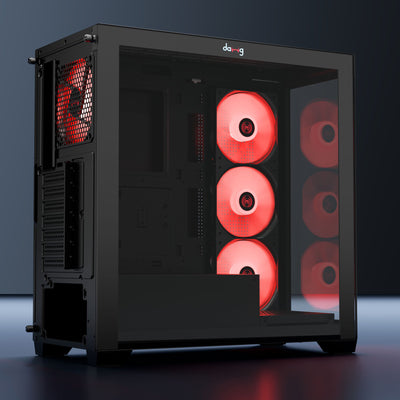

daWg X 520 Black Mid tower chassis , Rear view shows rear fan

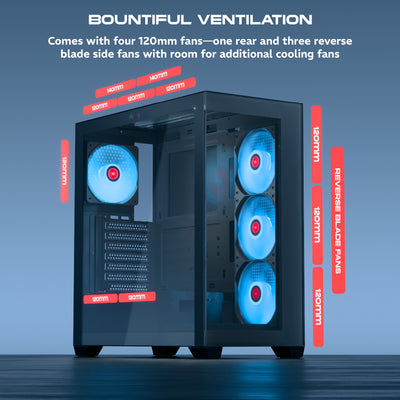

daWg X 520 Black Mid tower chassis , Shows four 120 mm fan for ventilation

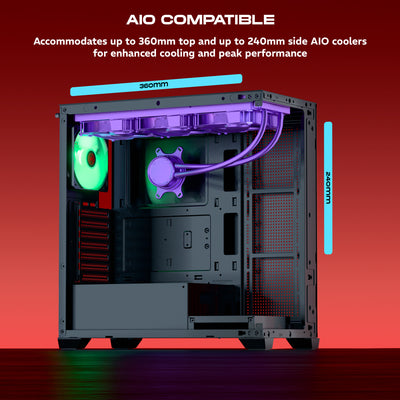

daWg X 520 Black Mid tower chassis , shows AIO coolers and dimensions of it

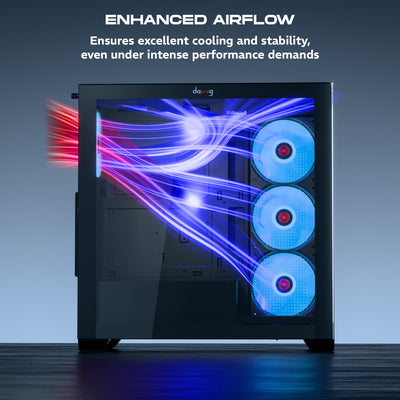

daWg X 520 Black Mid tower chassis , shows the internal space for enhanced airflow

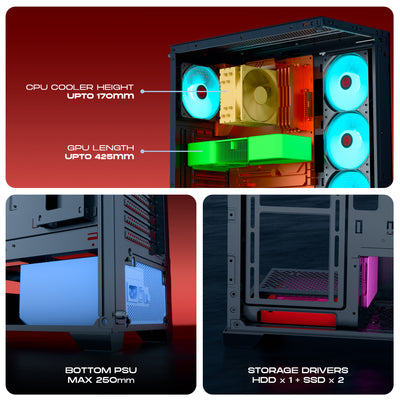

daWg X 520 Black Mid tower chassis , Shows Dimensions of internal components

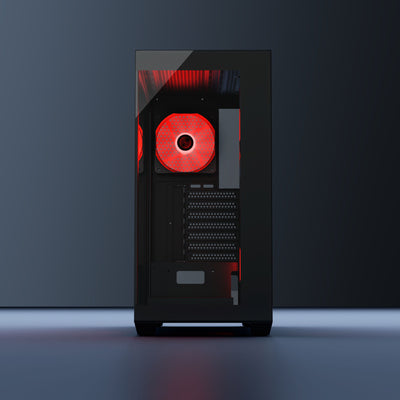

daWg X 520 Black Mid tower chassis front view of chassis with sleek finish

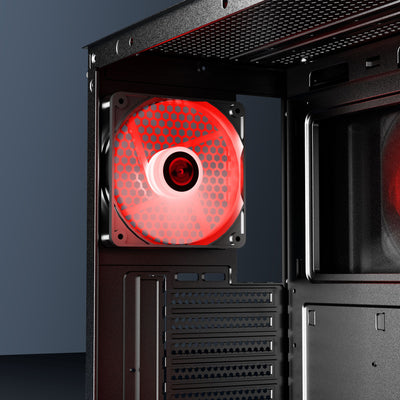

daWg X 520 Black Mid tower chassis shows 120 mm rear fan for ventilation

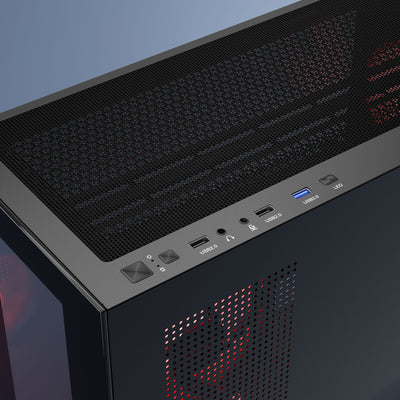

daWg X 520 Black Mid tower chassis , Shows input ports

daWg | Mid tower

X 520

₹ 5,299 ₹ 9,999

X 520 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, wraparound tempered glass panel, PSU shroud, 170mm CPU cooler clearance, 425mm GPU length, bottom PSU, pre-installed ARGB fan, rear and side 120mm fan, and optional top, bottom, cooling fans. AIO supports up to 360mm (top) and 240mm (side).

Color: Black

Black

Product variants

Share:

Share

Buy from mdcomputers.in

Pairs well with

X 520

Black

₹ 5,299 ₹ 9,999

Highlights

Supports up to a 250mm(Max.) bottom-mounted PSU with top magnetic and bottom magnetic dust filters for optimal airflow. The wrap-around glass design showcases your build, while USB 3.0, dual USB port, and audio(Headphone+mic) jack ensure easy connectivity.

Enhanced Airflow

Designed for advanced thermal efficiency, it delivers superior cooling and system stability, even under demanding performance conditions.

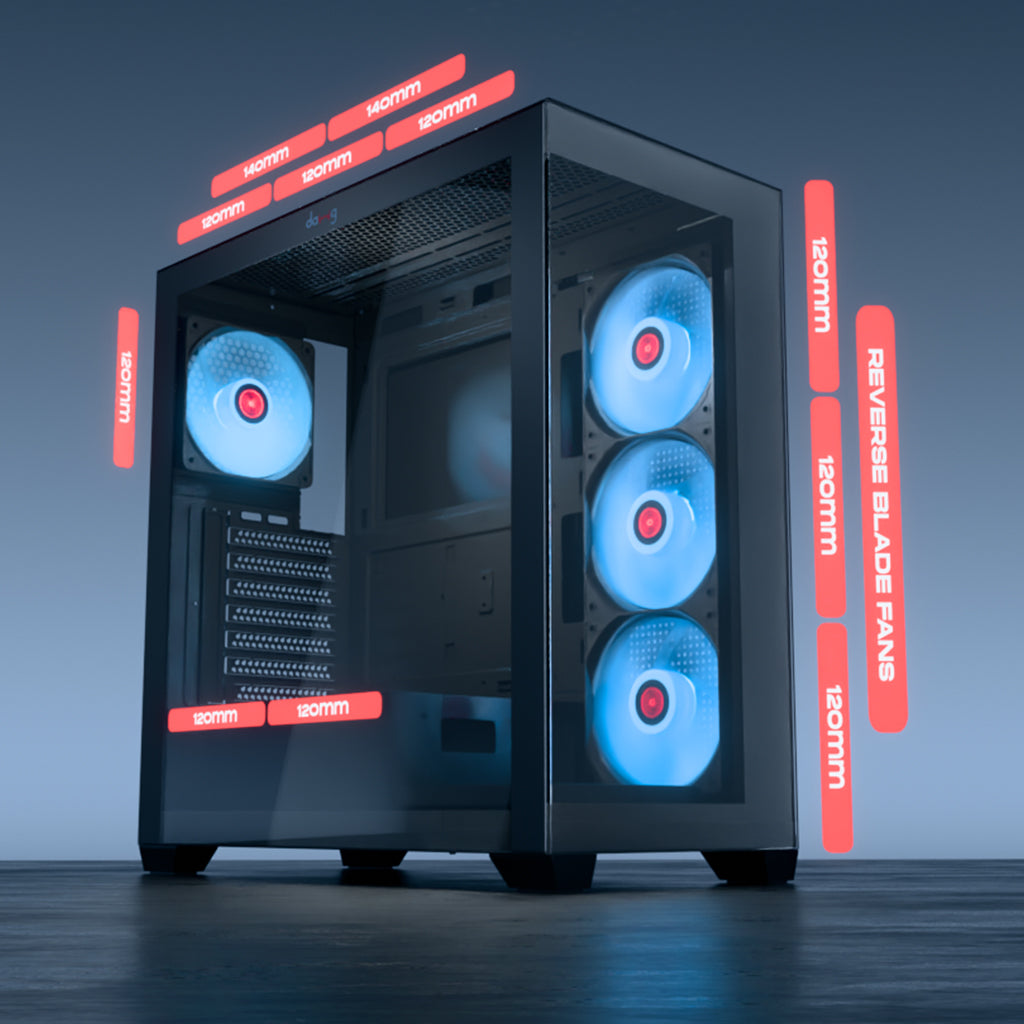

Bountiful Ventilation

Equipped with four 120mm fans, including one rear fan and three reverse blade side fans, with additional space for enhanced cooling options.

AIO Compatible

Accommodates up to 360mm top and up to 240mm side AIO coolers for enhanced cooling and peak performance!

Motherboard Support

This premium chassis is expertly designed to support ATX and mATX motherboards, offering a spacious and well-structured design that facilitates effortless component installation.

Device Support

Designed for high-performance systems, this chassis accommodates GPUs up to 425mm and CPU coolers up to 170mm, ensuring exceptional efficiency and compatibility.

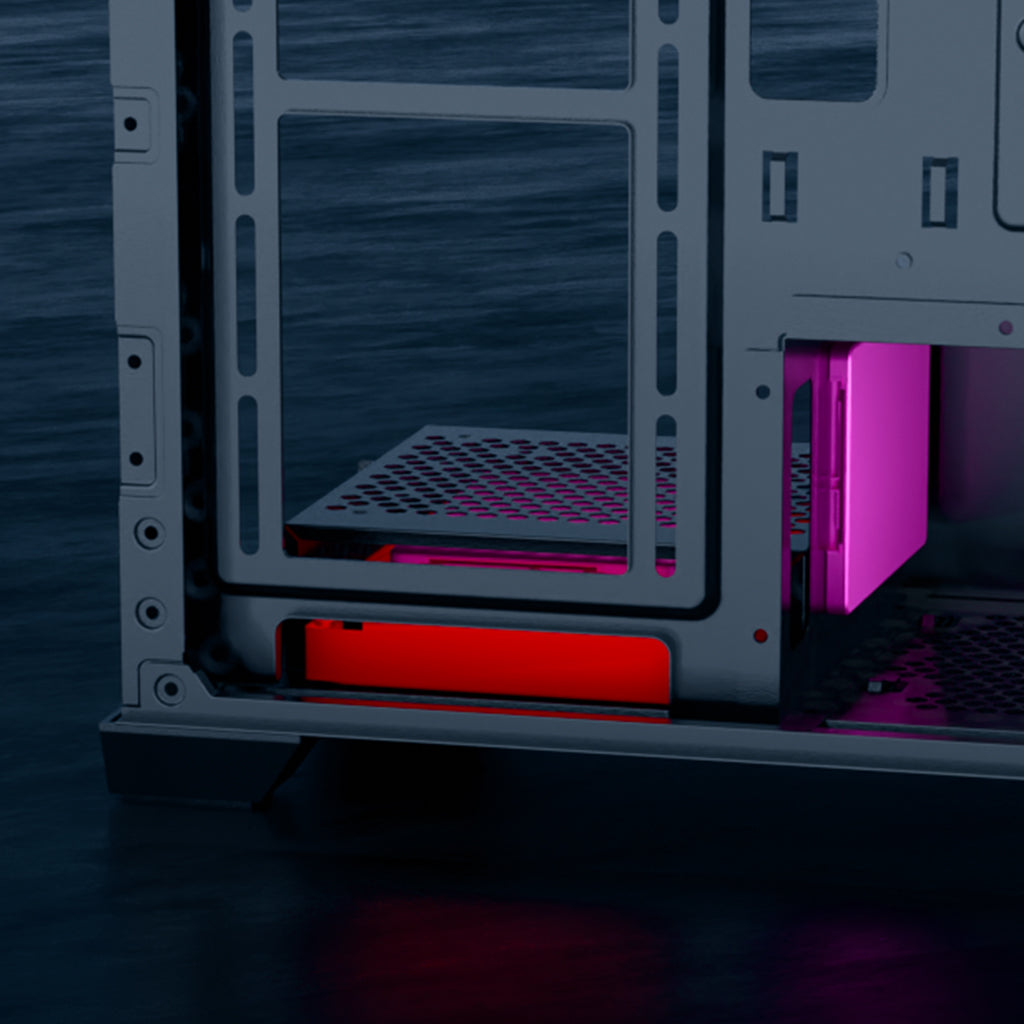

Plenty of Storage

Maximize your storage efficiency with a versatile 1 HDD + 2 SSD configuration for enhanced flexibility and performance.

Multi-Connectivity

Experience seamless connectivity with USB 3.0, dual USB ports, and a dedicated headphone & mic jack for enhanced accessibility.

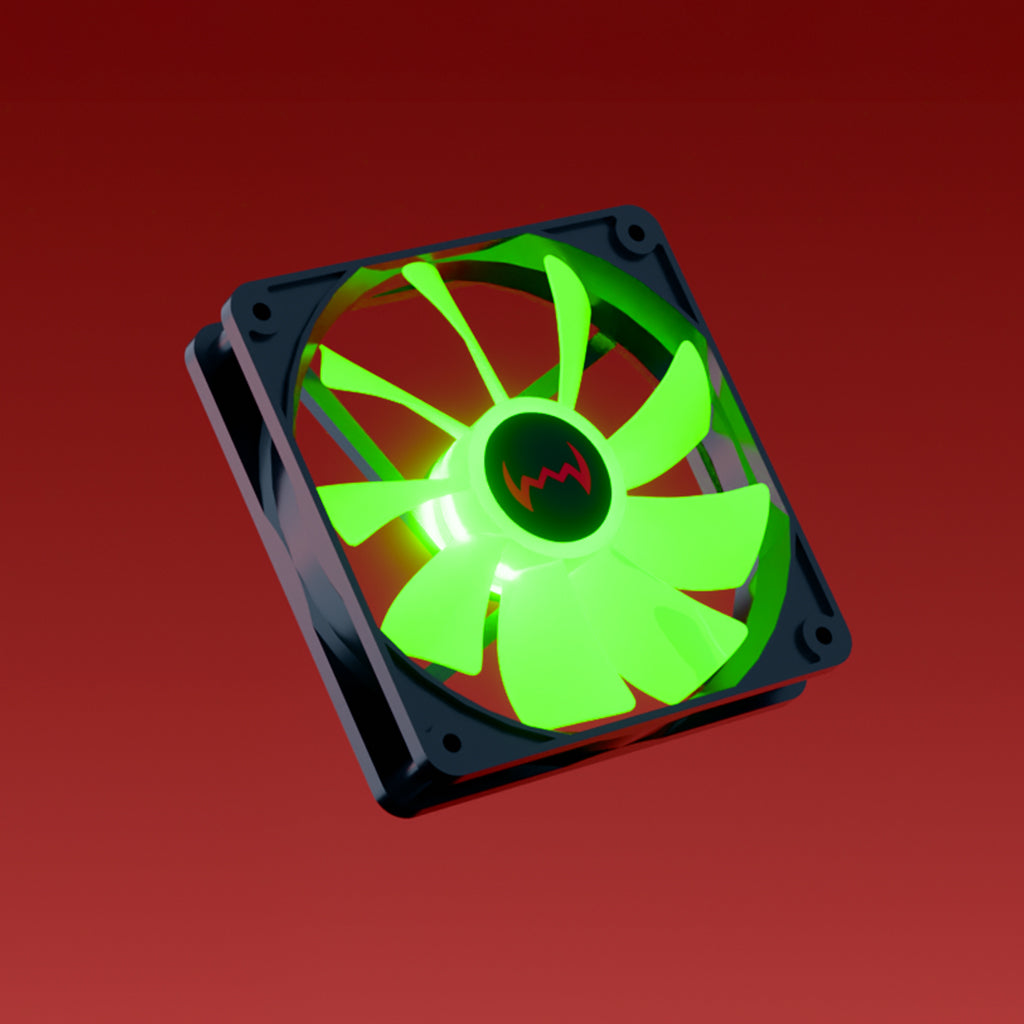

Centre-Glow ARGB Fans

Center-glow ARGB fans provide dynamic illumination and superior cooling, enhancing the gaming experience with both style and performance.

daWg | X 520 | Mid tower

Features & Specs

Specifications

Model: X 520
Form Factor: Mid Tower
Motherboard: ATX | mATX
I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
Drive: HDD x 1 + SSD x 2
Fan Type: Center Glow ARGB Fans
Cooling Fans:
– Rear: 120mm x 1
– Top: 120mm x 3 (optional) | 140mm x 2 (optional)
– Bottom: 120mm x 3 (optional)
– Side: 120mm x 3 (Reverse Blade)
AIO:
– Top: Up to 360mm
– Side: Up to 240mm
CPU Cooler Height: 170mm
GPU Length: 425mm
Side Panel: Wraparound Tempered Glass
PSU: Bottom, 250mm
Dust Filter: Top Magnetic, Bottom Magnetic
PCIe Expansion: 7
Dimension (WxDxH): 21.8 x 43.4 x 45.4 cms
Weight: 6.6 kg

Highlights

AIO Compatible
ARGB Sync Enabled
Pre-Installed ARGB Fans
Enhanced Air Flow
Silent Design
Wraparound Tempered Glass
PSU Shroud
Dust Filters
Cable Management
Robust Build

Description

X 520 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, ARGB Sync, enhanced airflow, silent design, wraparound tempered glass panel, PSU shroud, 170mm CPU cooler clearance, 425mm GPU length, bottom PSU, pre-installed ARGB fan, rear and side 120mm fan, and optional top, bottom, cooling fans. AIO supports up to 360mm (top) and 240mm (side).

FAQs

General

Q: Which motherboards are compatible with the X520?
A: The X520 supports ATX and mATX motherboards, ensuring flexibility for various builds.

Q: What I/O ports are available on the X520?
A: The X520 includes USB 3.0, USB x 2, and a dedicated headphone and microphone jack.

Cooling & Airflow

Q: What cooling options are available in the X520?
A: The X520 is AIO compatible and features pre-installed ARGB fans for efficient cooling. It supports additional cooling options:

Rear: 120mm x 1
Top: 120mm x 3 (Optional) | 140mm x 2 (Optional)
Bottom: 120mm x 3 (Optional)
Side: 120 mm x 3 (Reverse Blade)
AIO Support: Up to 360mm on the top and upto 240 mm on the side

Q: Does the X520 have a dust filter?
A: Yes, the X520 comes with top and bottom magnetic dust filters to keep your system clean and running efficiently.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 170mm.

Q: What is the maximum GPU length supported?
A: The X520 supports GPUs up to 425mm in length.

Q: What are the case dimensions and weight?
A: The X520 measures 21.8 x 43.4 x 45.7 cm and weighs approximately 6.6 kg.

Storage & Expansion

Q: What storage options does the X520 support?
A: The case supports the below storage configurations:

HDD x 1 + SSD x 2

Q: How many PCIe expansion slots are available?
A: The X540 includes 7 PCIe expansion slots.

Design & Features

Q: Does the X540 have RGB lighting?
A: Yes, the case features ARGB Sync, center glow ARGB fans, and a wraparound tempered glass panel for an enhanced aesthetic.

Q: What materials are used in the X520?
A: The case features wraparound tempered glass for durability and a premium look.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans. Accessories shown in images may not be included.

Q: Is cable management supported?
A: Yes, the X520 is designed with efficient cable management to ensure a clean and organized build.
