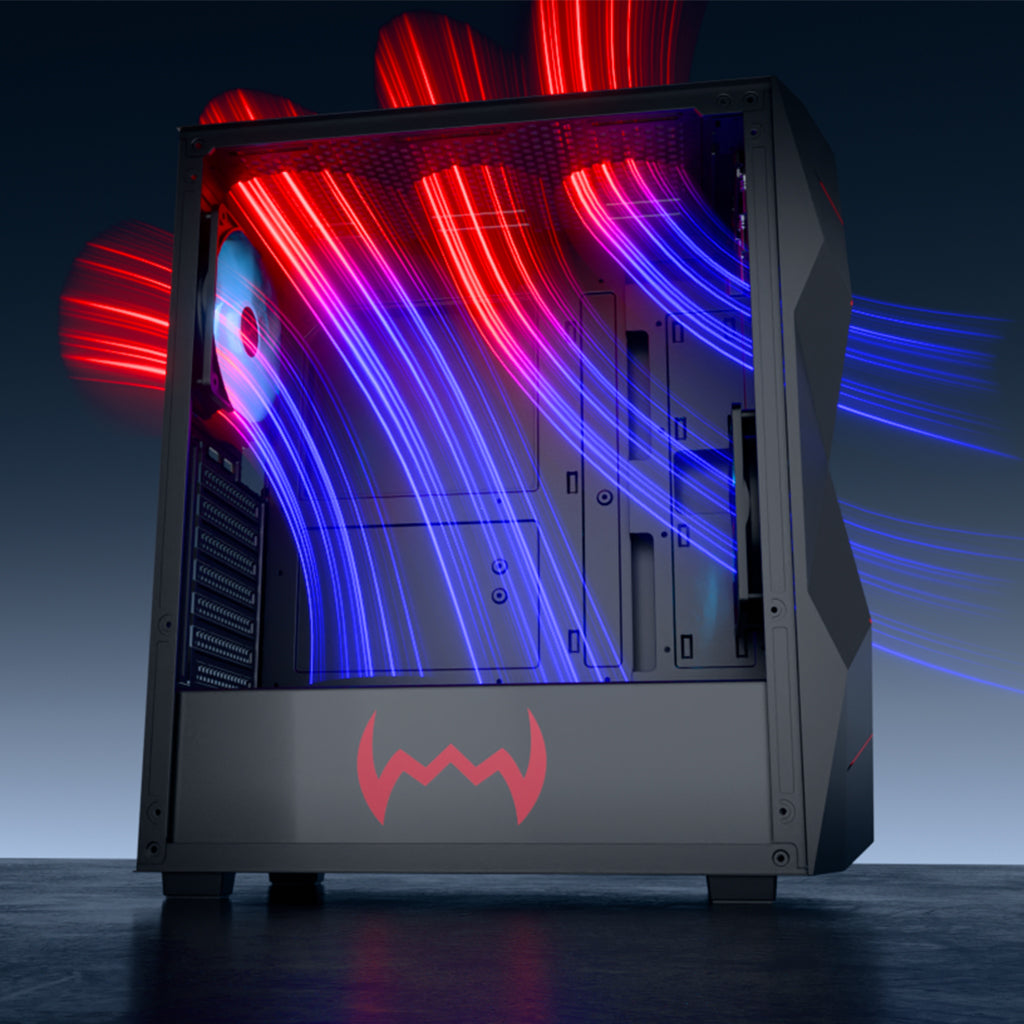

Enhanced Airflow

Designed for superior thermal performance, this system ensures efficient cooling and sustained stability, even during demanding workloads.

 Sufficient Ventilation

Comes with 2 pre-installed 120mm center-glow multi-color fans at the front and rear, delivering efficient cooling and a dynamic gaming ambiance.

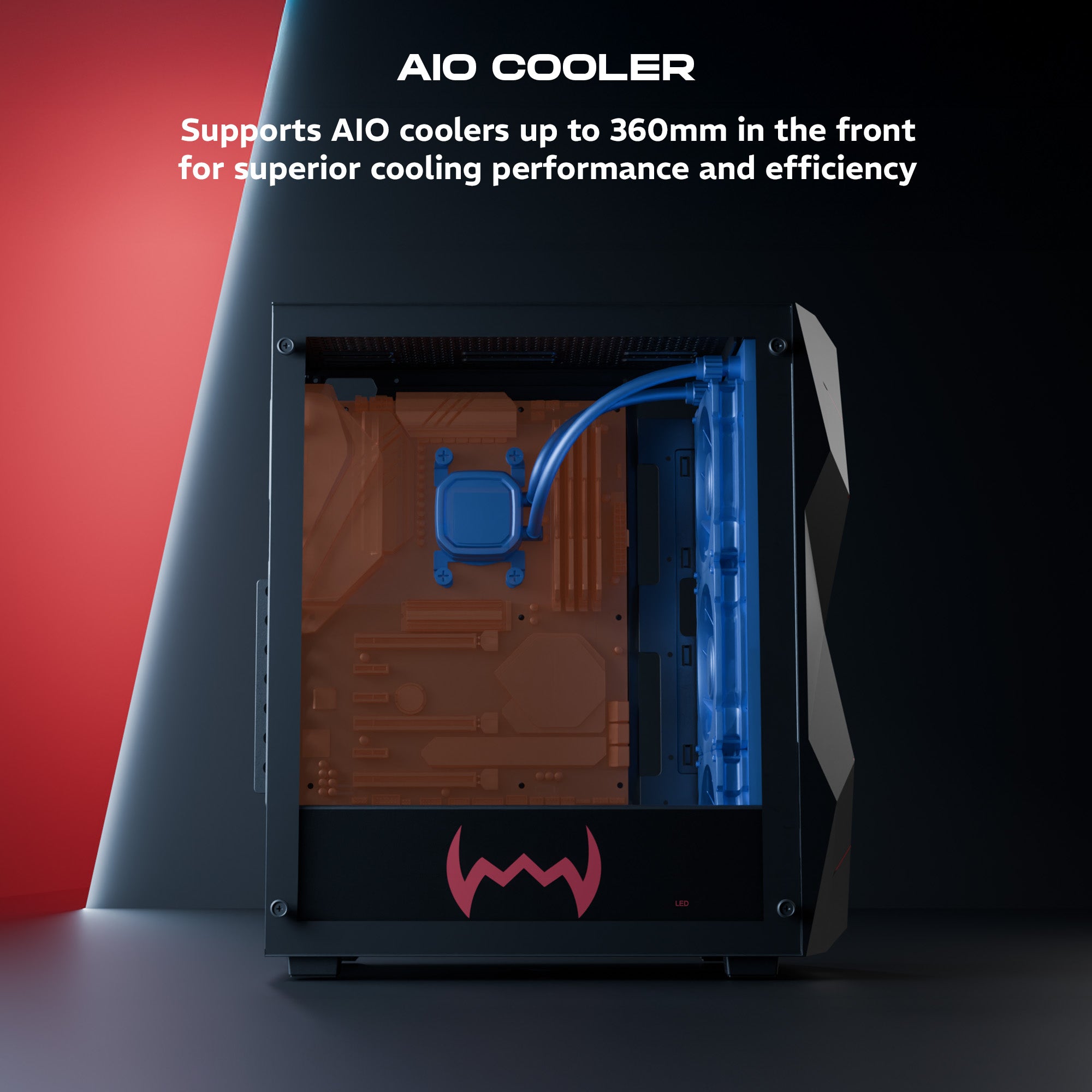

AIO Cooler

Supports front-mounted AIO coolers up to 360mm, ensuring superior cooling performance and maximum efficiency.

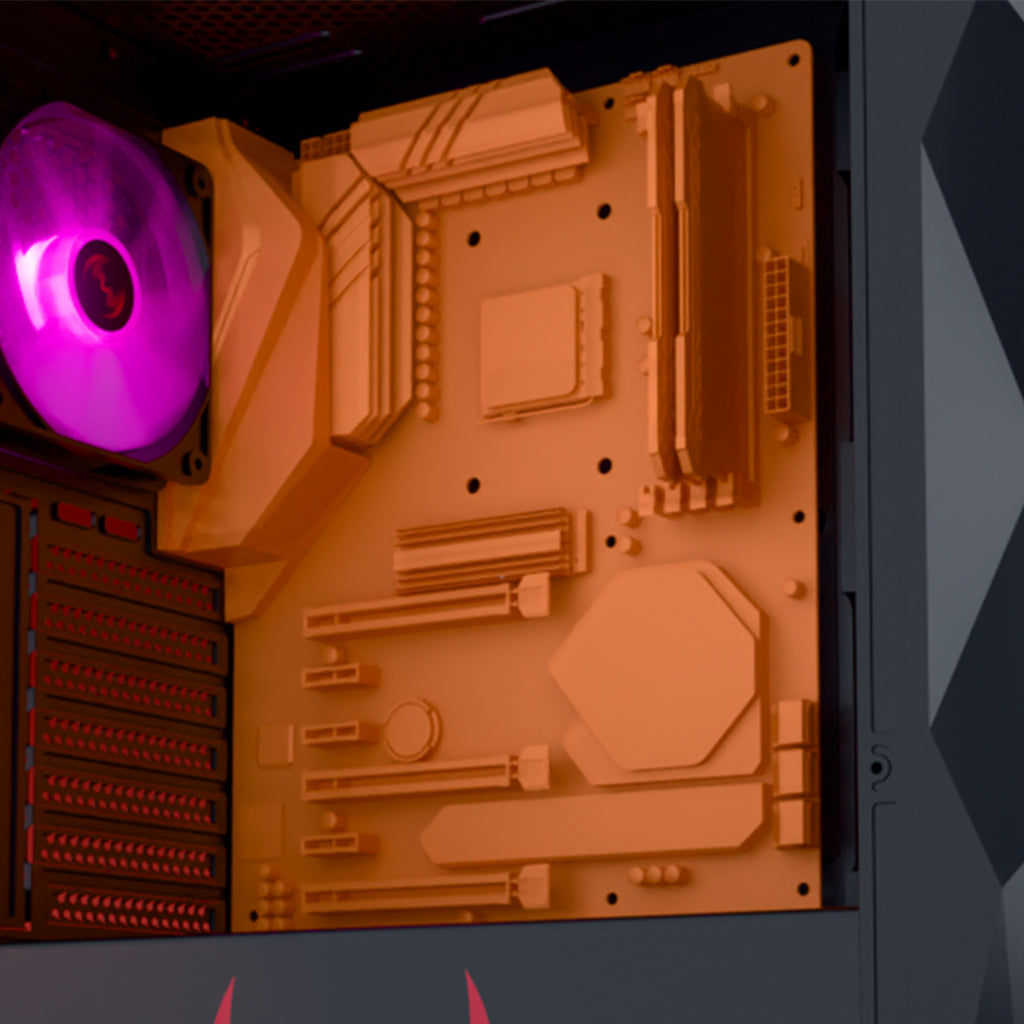

 Motherboard Support

Crafted for both performance and efficiency, this chassis supports ATX and mATX motherboards, utilizing space effectively.

Device Support

Built to handle intense performance, this chassis supports up to 340mm GPU and up to 160mm CPU coolers, ensuring optimal cooling and efficiency.

Sufficient Storage

This chassis offers flexible storage configurations, supporting either 1 HDD with 3 SSDs or 2 HDDs with 2 SSDs, catering to diverse storage requirements.

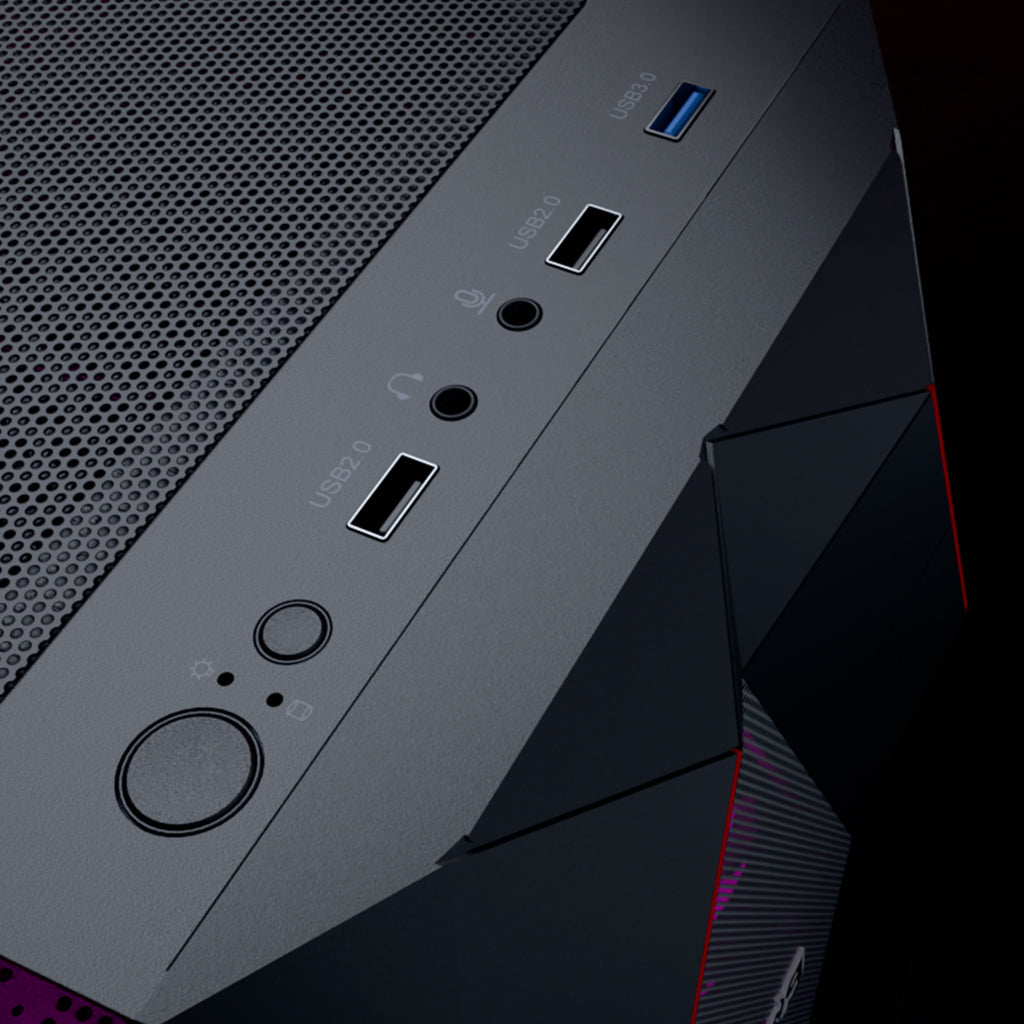

Multi-Connectivity

Features a USB 3.0 port for high-speed data transfers, 2x USB ports for peripherals, and dedicated headphone and microphone jacks for smooth audio connectivity.

PSU Length

Optimized for a 200mm bottom-mounted PSU, this chassis ensures stable power delivery and enhanced system efficiency.

 Tempered Glass

Show off your built-in style with a sleek tempered glass side panel, highlighting your components and RGB lighting for a premium, showcase-worthy look.

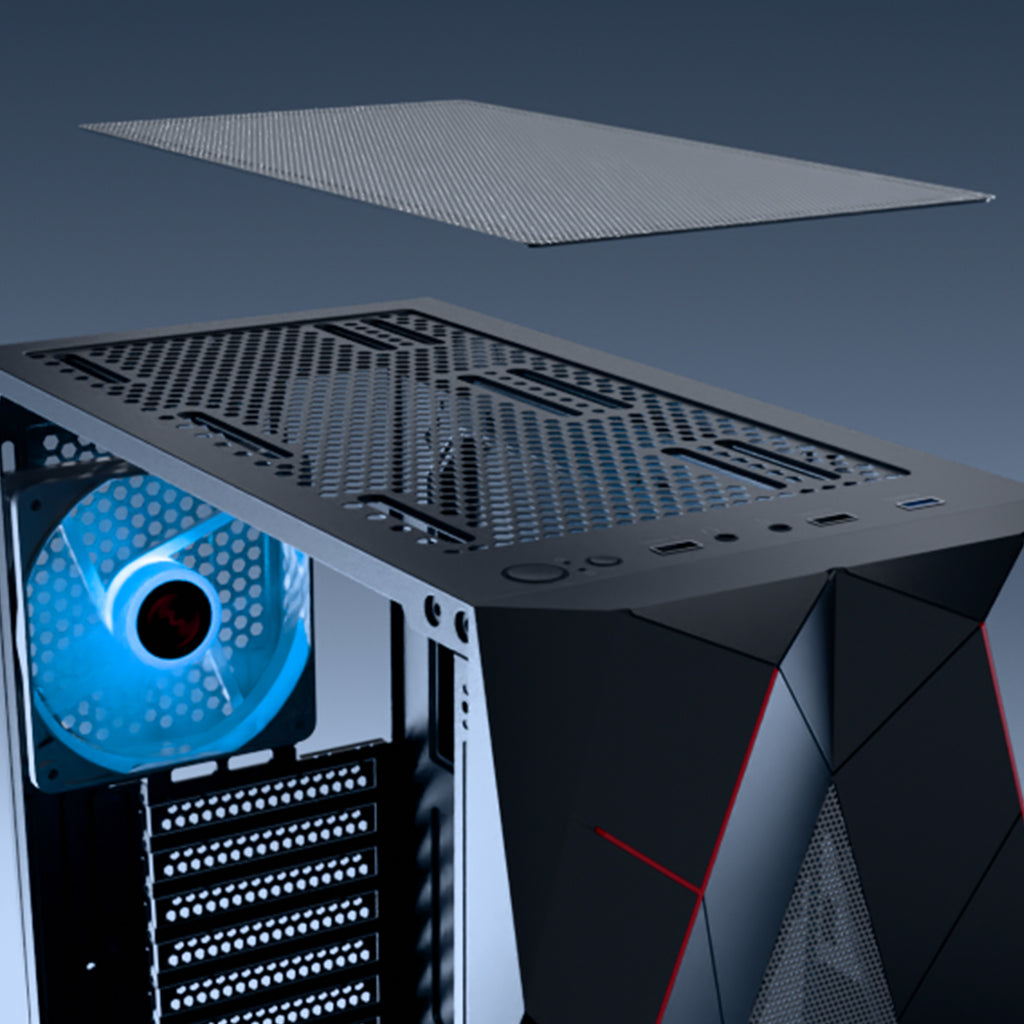

Top Dust filter

Featuring top magnetic and bottom dust filters, this chassis keeps dust out while ensuring smooth airflow for efficient cooling and long-lasting performance.

Bottom Dust Filter

The bottom dust filter of the chassis prevents excessive dust from accumulating from the heavy-duty components functioning for a long time.

daWg | V 240 | Mid tower

Features & Specs

Specifications
  • Model: V240
  • Form Factor: Mid Tower
  • Motherboard: ATX | mATX
  • I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
  • Drive:
    – Config 1: HDD x 1 + SSD x 3
    – Config 2: HDD x 2 + SSD x 3
  • Fan Type: Center Glow Multicolor Fans
  • Cooling Fans:
    – Front: 120mm x 1 | 120mm x 2 (optional)
    - Rear: 120mm x 1
    – Top: 120mm x 2 (optional) | 140mm x 2 (optional)
    – Bottom: 120mm x 2 (optional)
  • AIO: Front - up to 360mm
  • CPU Cooler Height: 160mm
  • GPU Length: 340mm
  • Side Panel: Tempered Glass
  • PSU: Bottom, 200mm
  • Dust Filter: Top Magnetic, Bottom
  • PCIe Expansion: 7
  • Dimension (WxDxH): 19.5 x 39 x 44.7 cm
  • Weight: 4.3kg
Highlights

AIO Compatible
Pre-Installed Multicolor Fans
Enhanced Air Flow
Silent Design
Tempered Glass
PSU Shroud
Dust Filters
Cable Management
Robust Build

Description

V 240 Mid Tower Chassis supports ATX/mATX, features USB 3.0, dual USB ports, enhanced airflow, silent design, tempered glass side panel, PSU shroud, 160mm CPU cooler clearance, 340mm GPU length, bottom PSU, pre-installed multicolor fans, rear  & front 120mm fan, and optional, top, and bottom cooling fans. AIO supports up to 360mm.

FAQs

General

Q: Which motherboards are compatible with the V240?
A: The V240 supports ATX and mATX motherboards, ensuring flexibility for various builds.

Q: What I/O ports are available on the V240?
A: The V240 includes USB 3.0, USB x 2, and a dedicated headphone & microphone jack.

Cooling & Airflow

Q: What cooling options are available in the V240?
A: The V240 is AIO compatible and features pre-installed multicolor fans for efficient cooling. It supports additional cooling options:

  • Front: 120mm x 1 + 120mm x 2 (Optional)
  • Rear: 120mm x 1
  • Top: 120mm x 2 (Optional) | 140mm x 2 (Optional)
  • Bottom: 120mm x 2 (Optional)
  • AIO Support: Up to 360mm on the front

Q: Does the V240 have a dust filter?
A: Yes, the V240 comes with top magnetic and bottom dust filters to keep your system clean and running efficiently.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 160mm.

Q: What is the maximum GPU length supported?
A: The V240 supports GPUs up to 340mm in length.

Q: What are the case dimensions and weight?
A: The V240 measures 19.5 x 39 x 44.7 cm and weighs approximately 4.3 kg.

Storage & Expansion

Q: What storage options does the V240 support?
A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 1 + SSD x 3
  • Configuration 2: HDD x 2 + SSD x 2

Q: How many PCIe expansion slots are available?
A: The V240 includes 7 PCIe expansion slots.

Design & Features

Q: Does the V240 have RGB lighting?
A: No, the case features multicolor fans but does not have RGB support.

Q: What materials are used in the V240?
A: The case features tempered glass for durability and a premium look.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and pre-installed fans. Accessories shown in images may not be included.

Q: Is cable management supported?
A: Yes, the V240 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
