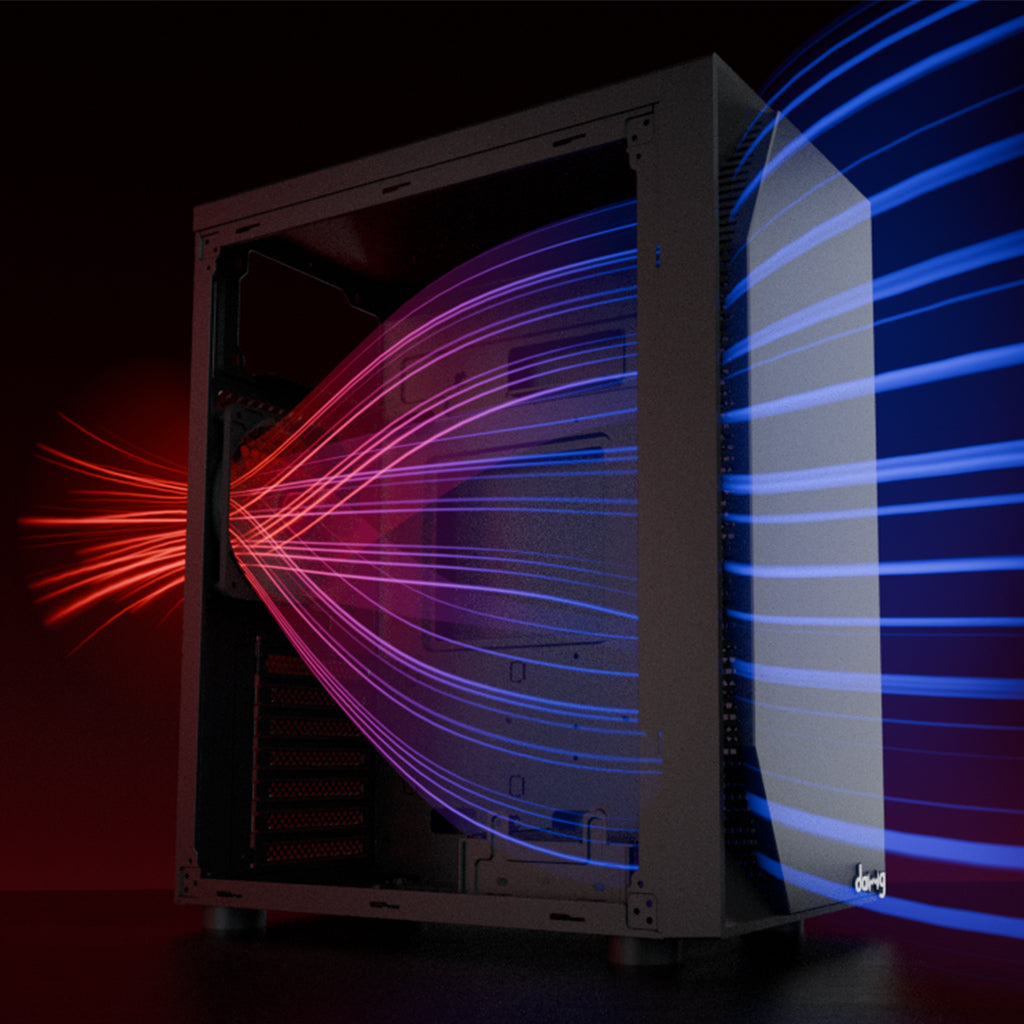

Enhanced Airflow

Engineered for exceptional thermal efficiency, this system delivers optimal cooling and maintains stability even under intensive workloads.

Sufficient Ventilation

Comes with a pre-installed 120mm rear fan and space for front fans, providing optimal airflow to keep your rig cool and efficient.

 Motherboard Support

Designed for both performance and efficiency, this chassis supports ATX and mATX motherboards, maximizing space while maintaining optimal airflow and a sleek appearance.

Device Support

Apt for heavy-duty components, this chassis supports up to 325mm GPU and up to 170mm CPU coolers for seamless and efficient operation.

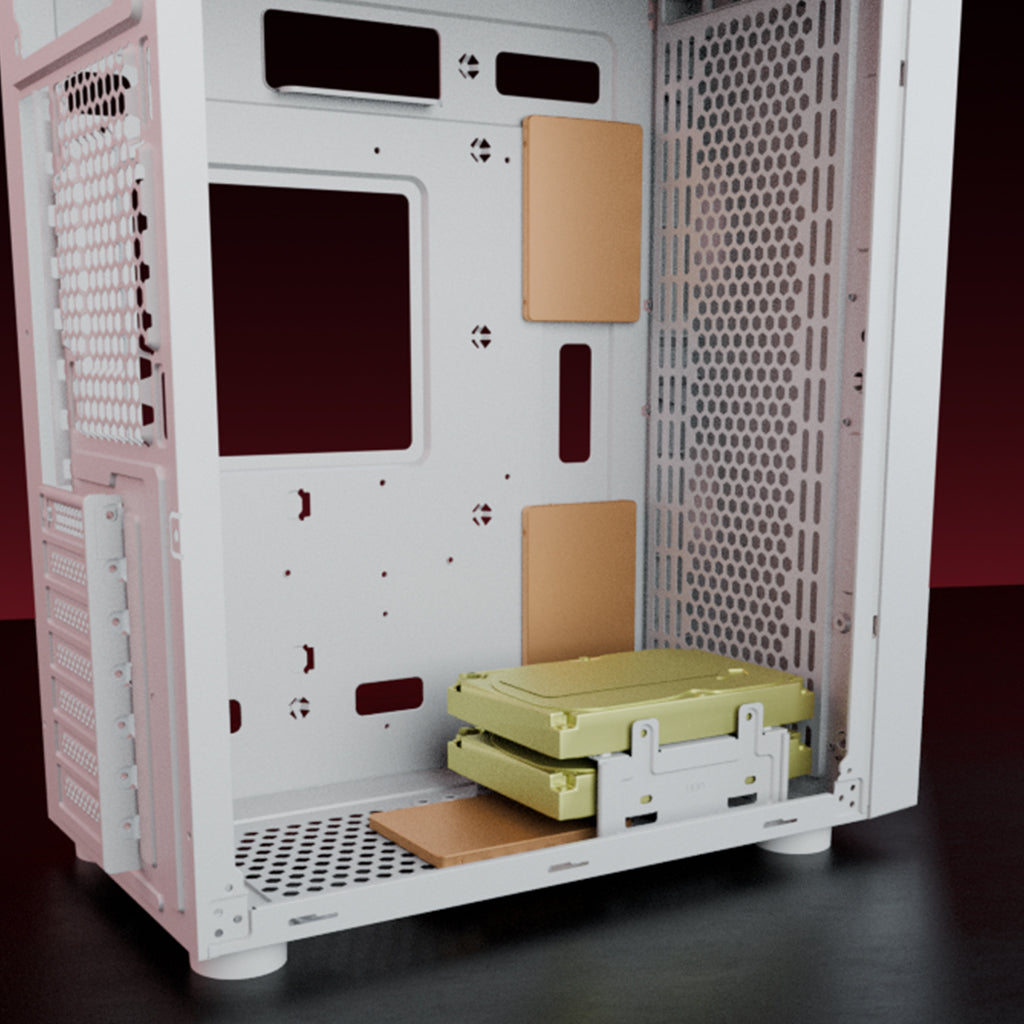

Sufficient Storage

The chassis provides versatile storage configurations, supporting either 1 HDD and 3 SSDs or 2 HDDs and 2 SSDs, ensuring adaptability to various storage needs.

Multi-Connectivity

This chassis includes a USB 3.0 port for fast data transfers, 2x USB ports for peripherals, and dedicated headphone and microphone jacks for seamless audio connectivity.

PSU Length

Designed for a 140mm top-mounted PSU, this chassis ensures reliable power delivery and improved system efficiency.

 Expansion Slots

Designed for versatility, this chassis features 7 PCIe expansion slots, allowing for seamless upgrades, gaming, and customization.

daWg | V 211 | Mid tower

Features & Specs

Specifications
  • Model: V211
  • Form Factor: Mid Tower
  • Motherboard: ATX | mATX
  • I/O Ports: USB 3.0 | USB x 2 | Headphone | Mic
  • Drive:
    – Config 1: HDD x 1 + SSD x 4
    – Config 2: HDD x 2 + SSD x 3
  • Fan Type: Black Fan/White Fan
  • Cooling Fans:
    – Front: 120mm x 3 (optional) | 140mm x 2 (optional)
    – Rear: 120mm x 1
  • CPU Cooler Height: 170mm
  • GPU Length: 325mm
  • PSU: Top, 140mm
  • PCIe Expansion: 7
  • Dimension (WxDxH): 20.8 x 37 x 44.5 cm
  • Weight: 4.4kg
Highlights

Rear 120mm Fan
Enhanced Air Flow
Silent Design
Cable Management
Robust Build

Description

V211 Mid Tower Chassis supports ATX/mATX, features USB 3.0, enhanced airflow, silent design, 170mm CPU cooler clearance, 325mm GPU length, top PSU, rear fan, and optional front cooling fans.

FAQs

General

Q: Which motherboards are compatible with the V211?
A: The V211 supports ATX and mATX motherboards, ensuring flexibility for various builds.

Q: What I/O ports are available on the V211?
A: The V211 includes USB 3.0, USB x 2, and a dedicated headphone & microphone jack.

Cooling & Airflow

Q: What cooling options are available in the V211?
A: The V211 features a pre-installed rear 120mm fan for efficient cooling. It supports additional cooling options:

  • Front: 120mm x 3 (Optional) | 140mm x 2 (Optional)
  • Rear: 120mm x 1

Q: Does the V211 have a dust filter?
A: No, dust filter for the V211.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 170mm.

Q: What is the maximum GPU length supported?
A: The V211 supports GPUs up to 325mm in length.

Q: What are the case dimensions and weight?
A: The V211 measures 20.8 x 37 x 45 cm and weighs approximately 3.5 kg.

Storage & Expansion

Q: What storage options does the V211 support?
A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 1 + SSD x 4
  • Configuration 2: HDD x 2 + SSD x 3

Q: How many PCIe expansion slots are available?
A: The V211 includes 7 PCIe expansion slots.

Design & Features

Q: Does the V211 have RGB lighting?
A: No, the case features black or white fans but does not have RGB support.

Q: What materials are used in the V211?
A: The case features a robust build designed for durability and efficient airflow.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis and a pre-installed rear 120mm fan. Accessories shown in images may not be included.

Q: Is cable management supported?
A: Yes, the V211 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
