Enhanced Airflow

Engineered for outstanding thermal efficiency, this system delivers optimal cooling and maintains stability even during high-performance workloads.

Sufficient Ventilation

Equipped with a pre-installed 120mm rear fan, the design ensures efficient heat exhaust and consistent airflow across vital components, contributing to optimal thermal performance.

 Motherboard Support

Designed for efficiency and performance, this mini-tower chassis accommodates mATX and ITX motherboards. Its compact form ensures optimal space utilization without compromising airflow or aesthetics.

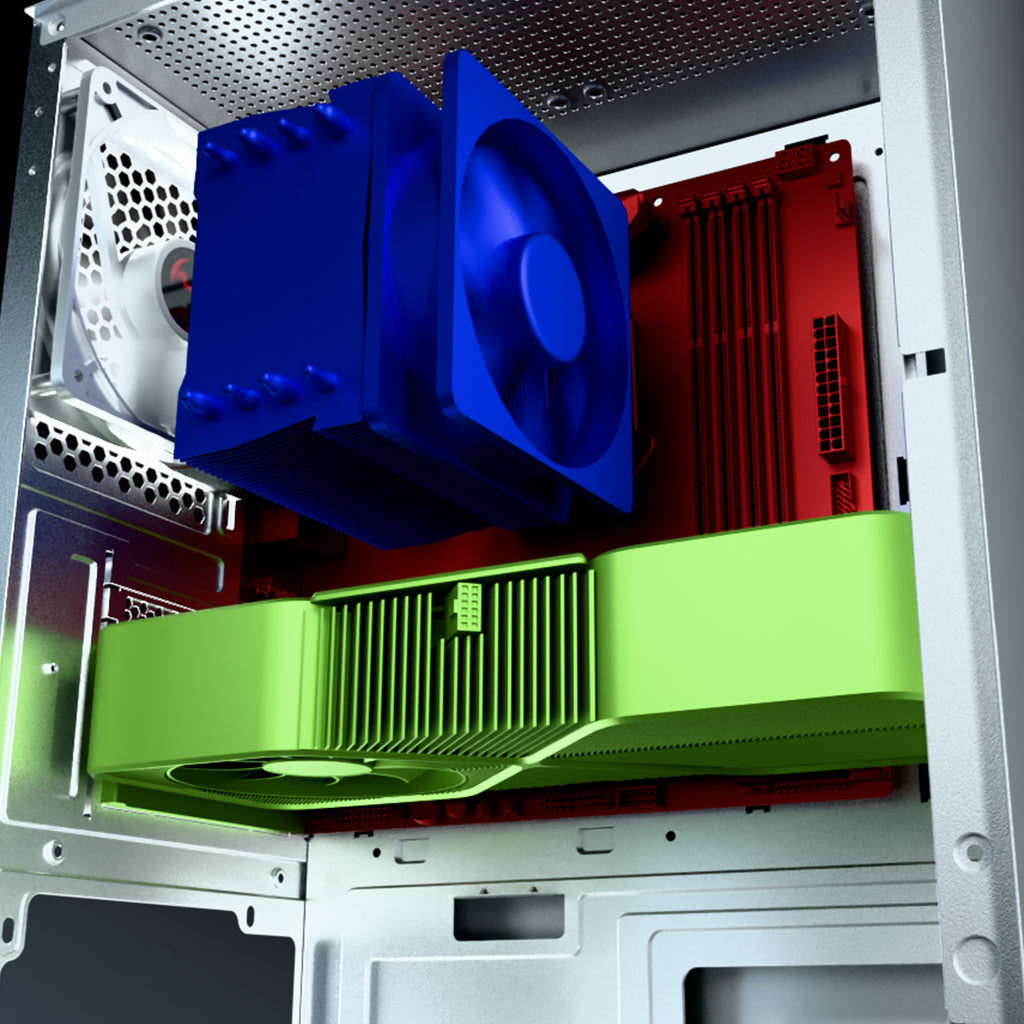

Device Support

Engineered to accommodate high-performance components, this chassis supports GPUs up to 280mm in length and CPU coolers up to 165mm in height, enabling smooth performance.

Sufficient Storage

Tailor your storage setup with two versatile configurations:  2 HDDs and 1 HDD + 1 SSD ensuring maximum flexibility.

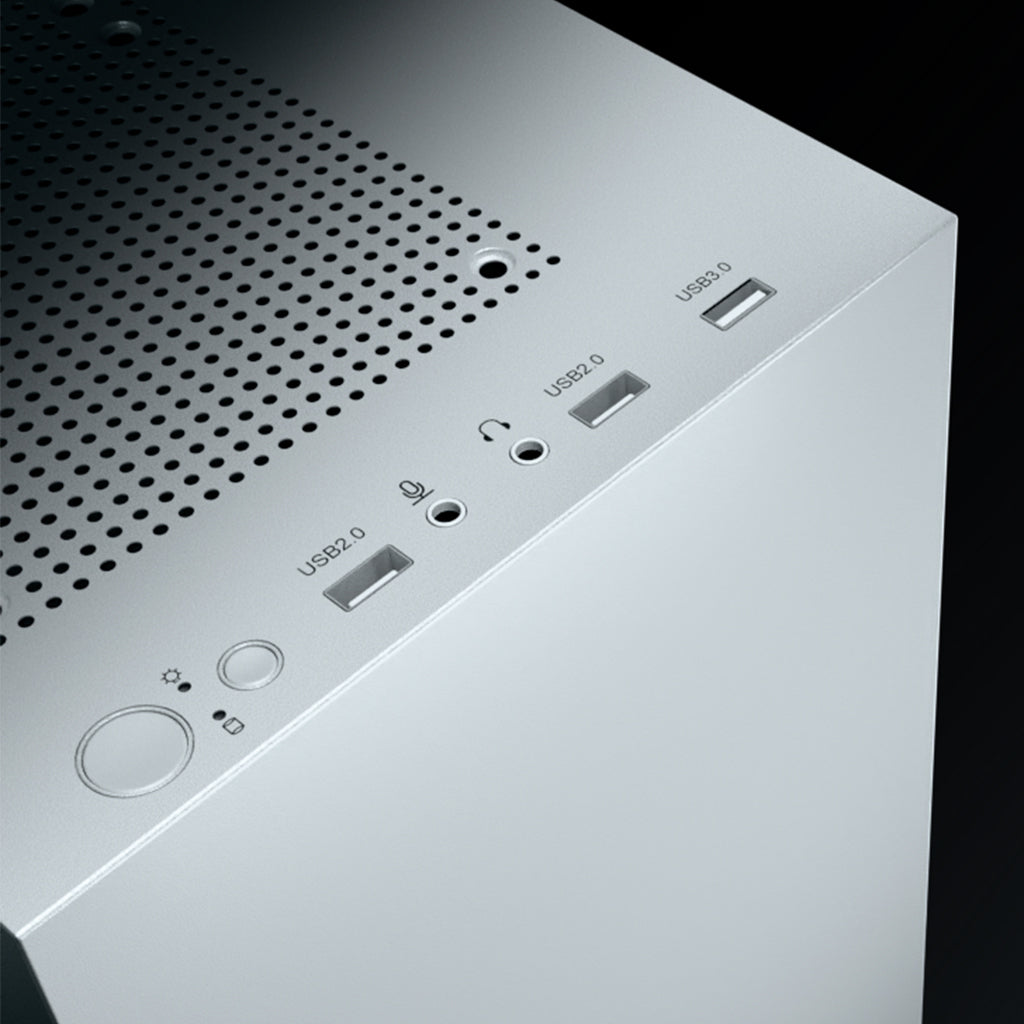

Multi-Connectivity

This chassis features a high-speed USB 3.0 port for rapid data transfers, 2x USB ports for peripherals, and dedicated headphone and mic jacks for uninterrupted audio.

PSU Length

Designed to accommodate a bottom-mounted PSU up to 200mm in length, this chassis ensures stable power distribution and enhanced system efficiency.

Dust Filter

Ensure cleanliness and reliability with the built-in bottom dust filter, specifically designed to block dust and debris from reaching the power supply and internal components.

daWg | V 110 | Mini tower

Features & Specs

Specifications
  • Model: V110
  • Form Factor: Mini Tower
  • Motherboard: mATX | ITX
  • I/O Ports: USB 3.0 | USB x 2 | Headphone | MIC
  • Drive:
    – Config 1: HDD x 2
    – Config 2: HDD x 1 + SSD x 1
  • Fan Type: Black Fan/White Fan
  • Cooling Fans:
    – Rear: 120mm x 1
    – Top: 120mm x 2 (Optional)
  • CPU Cooler Height: 165mm
  • GPU Length: 280mm
  • PSU: Bottom, 200mm
  • Dust Filter: Bottom
  • PCIe Expansion: 4
  • Dimension (WxDxH): 20 x 35 x 38.2 cms
  • Weight: 2.7kg
Highlights

Rear 120mm Fan
Enhanced Air Flow
Silent Design
Dust Filter
Cable Management
Robust Build

Description

V110 Mini Tower Chassis supports mATX and ITX motherboard, features USB 3.0 port, 165mm CPU cooler clearance, up to 280mm GPU, bottom PSU, rear cooling fan, and a dust filter.

FAQs

General

Q: Which motherboards are compatible with the V110?
A: The V110 supports mATX and ITX motherboards, ensuring flexibility for compact builds.

Q: What I/O ports are available on the V110?
A: The V110 includes USB 3.0, USB x 2, and a dedicated headphone and microphone jack.

Cooling & Airflow

Q: What cooling options are available in the V110?
A: : The V110 features a pre-installed rear 120mm fan for efficient cooling. It supports additional cooling options:

  • Rear: 120mm x 1
  • Top: 120mm x 2 (Optional)

Q: Does the V110 have a dust filter?
A: Yes, the V110 includes a bottom dust filter to help maintain system cleanliness.

Compatibility & Dimensions

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 165mm.

Q: What is the maximum GPU length supported?
A: The V110 supports GPUs up to 280mm in length.

Q: What are the case dimensions and weight?
A: The V110 measures 20 x 35 x 38.5 cm and weighs approximately 2.7 kg.

Storage & Expansion

Q: What storage options does the V110 support?

A: The case supports multiple storage configurations:

  • Configuration 1: HDD x 2
  • Configuration 2: HDD x 1 + SSD x 1

Q: How many PCIe expansion slots are available?
A: The V110 includes 4 PCIe expansion slots.

Design & Features

Q: Does the V110 have RGB lighting?
A: No, the case features black or white fans but does not have RGB Support

Q: What materials are used in the V110?
A: The case features a robust build designed for durability and efficient airflow.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis, pre-installed 120 mm fan. Accessories shown in image may not be included.

Q: Is cable management supported?
A: Yes, the V110 is designed with efficient cable management to ensure a clean and organized build.

Legal Metrology Info

Imported & Marketed by: Zebronics India Pvt Ltd. | 13/7 Smith Road, Royapettah, Chennai, Tamil Nadu - 600 002, India
Country of Origin: People's Republic of China
Generic Name: daWg Chassis
Package Contents: Chassis x 1U
Customer Complaints: Telephone - 044-4000 0004 | Email - enquiry@dawgflex.com

Package Contents

  • Chassis x 1 U
