• Model: X 617
• Form Factor: Mid Tower
• Motherboard: ATX | mATX
• I/O Ports: USB 3.0 | USB x 2 | Headphone + MIC
• Drive: HDD x 1 + SSD x 2
• Fan Type: ARGB, Hexa Pattern, Center & Side Infinity Mirror Glow
• Fans Included : 4 nos
• Cooling Fans:
  – Top: None | 120mm x 3 | 140mm x 2
  – Bottom: None | 120mm x 3
  – Rear : 120mm x 1 | None
  – Side: 120mm x 3 (Reverse Blade) | None
• AIO:
  – Bottom : None | 360mm
  – Top: None | 360mm
  – Side : None | 240mm
• CPU Cooler Height: 155mm
• GPU Length: 410mm
• Panel Type : Wraparound Tempered Glass
• PSU : Separate Chamber, 220mm

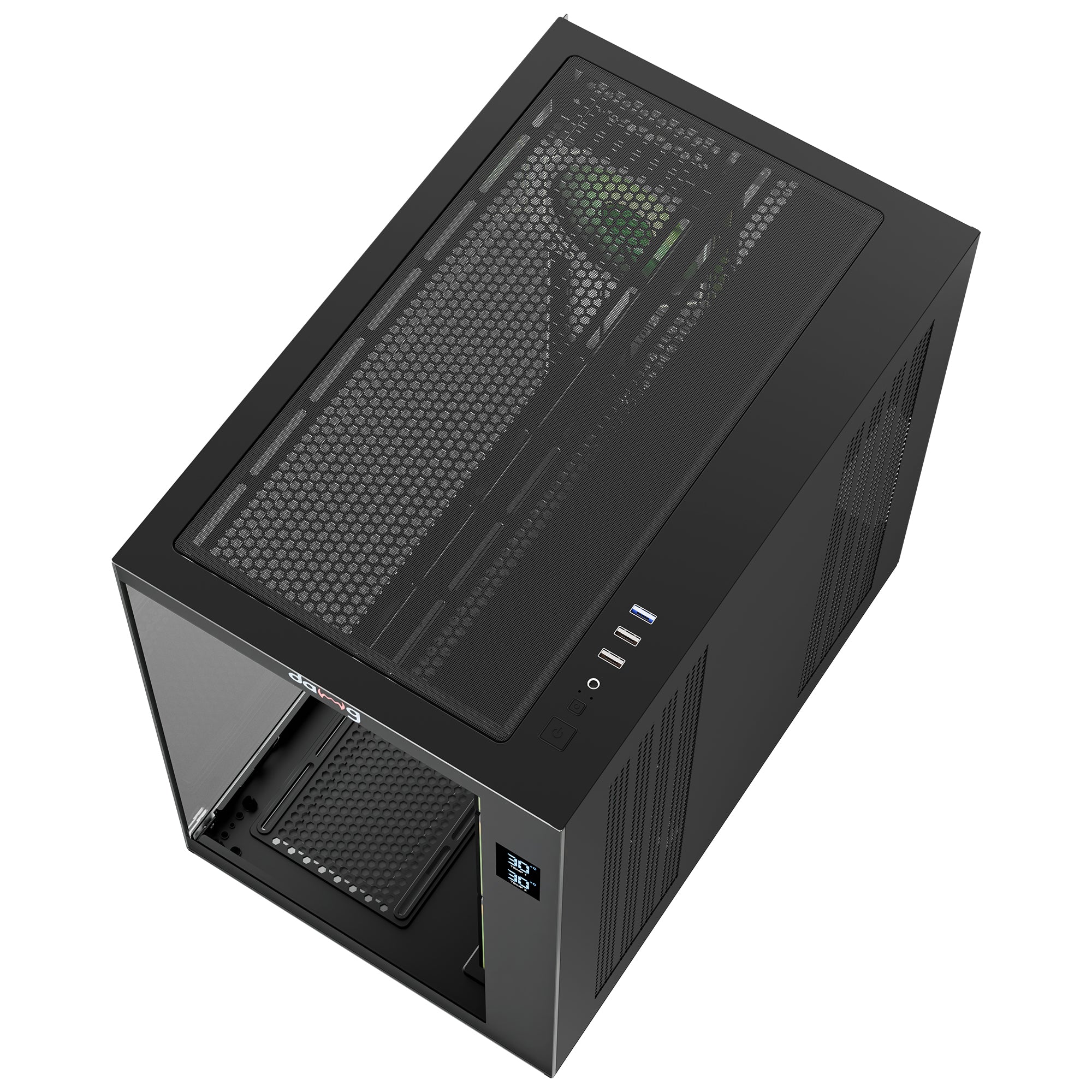

• Dust Filter: Top Magnetic , Bottom
• PCIe Expansion: 7
• Dimension (WxDxH): 27.5 x 42.5 x 39.8cm
• Weight: 5.4kg

General

Q: Which motherboards are compatible with the X 617?
A: The X 617 supports ATX and mATX motherboards.

Q: What I/O ports are available on the X 617?
A: The case includes USB 3.0, two additional USB ports, and a combined headphone + microphone jack.
Cooling & Airflow

Cooling & Airflow

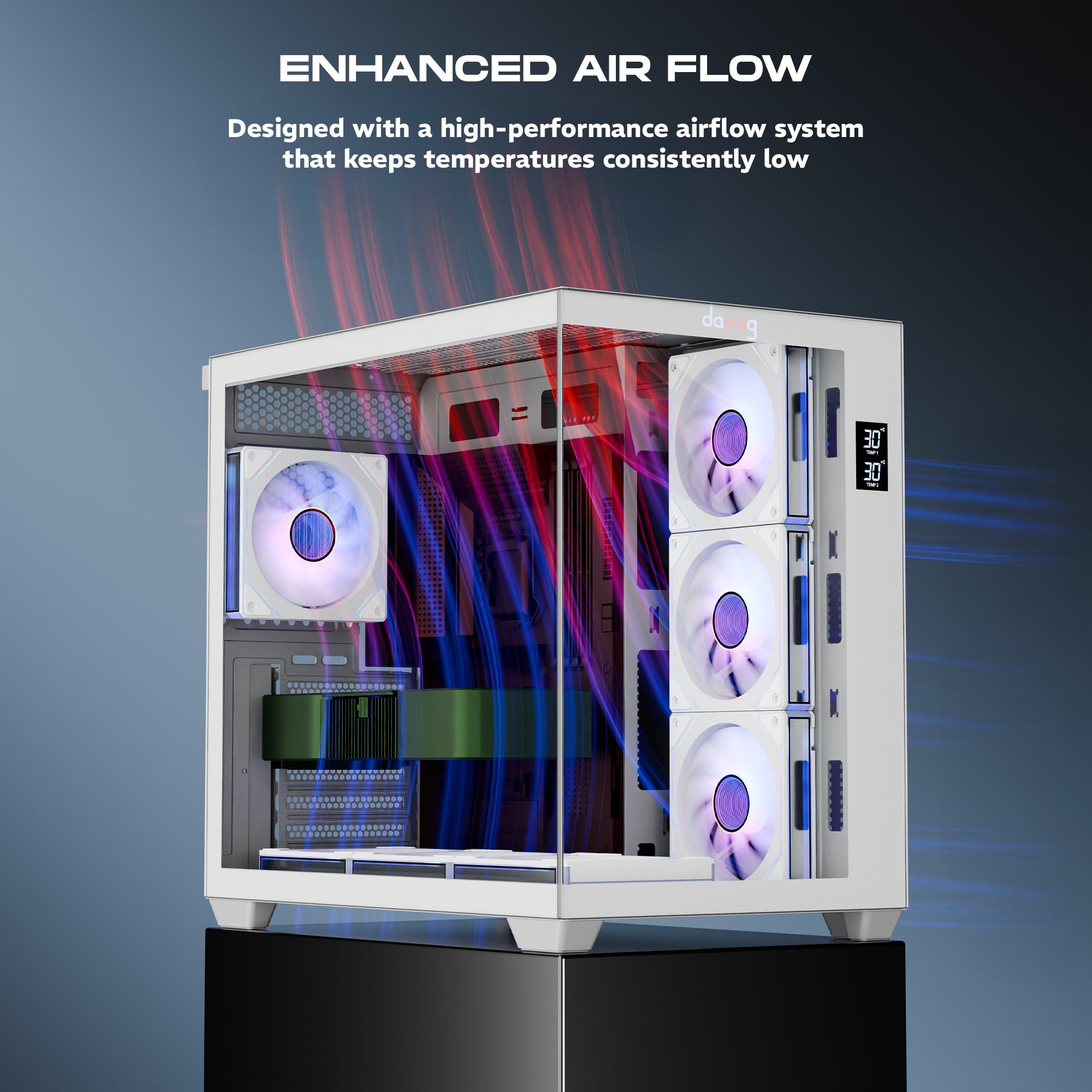

Q: What cooling options are available in the X 617?

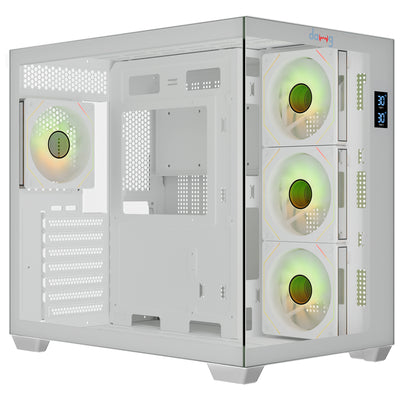

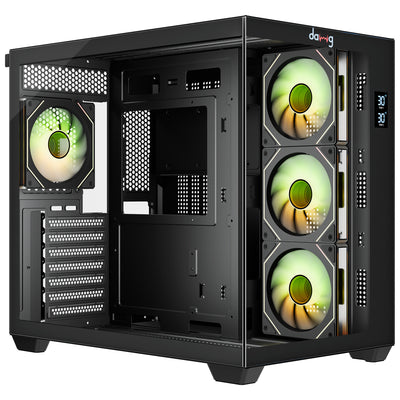

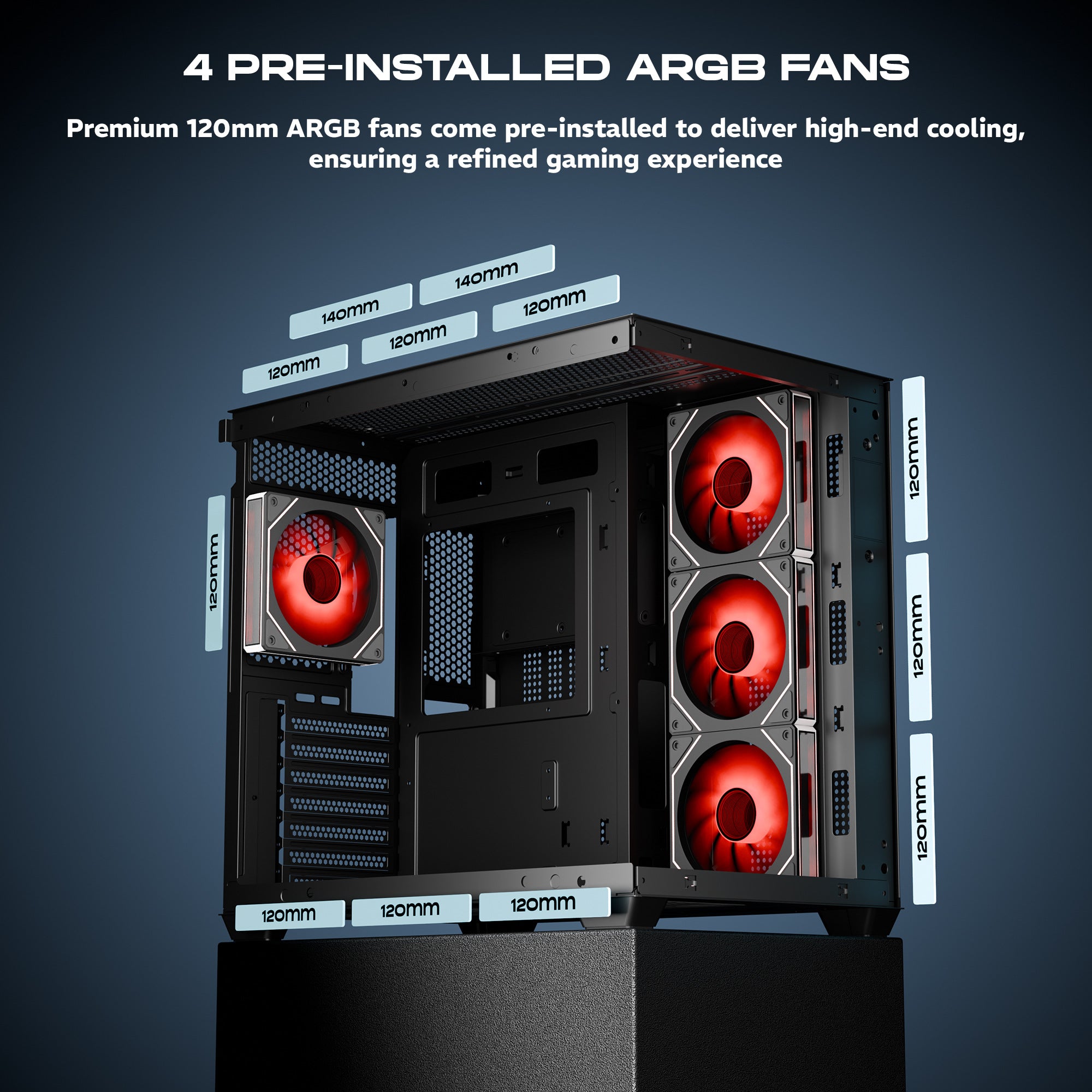

A: The X 617 is AIO-compatible and ships with 4 pre-installed ARGB fans (Hexa-Pattern, with center & side infinity-mirror glow).

Additional supported fan / radiator configurations:

• Top: up to 3 × 120 mm or 2 × 140 mm.
• Bottom: up to 3 × 120 mm.

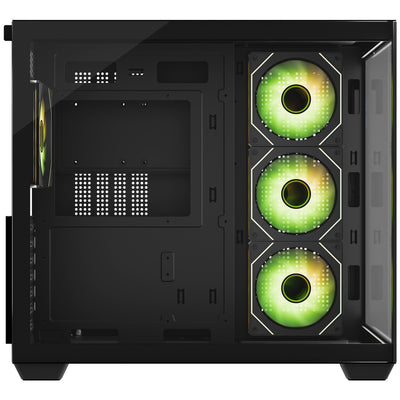

• Side: up to 3 × 120 mm (reverse-blade fans).
• Rear: 1 × 120 mm.

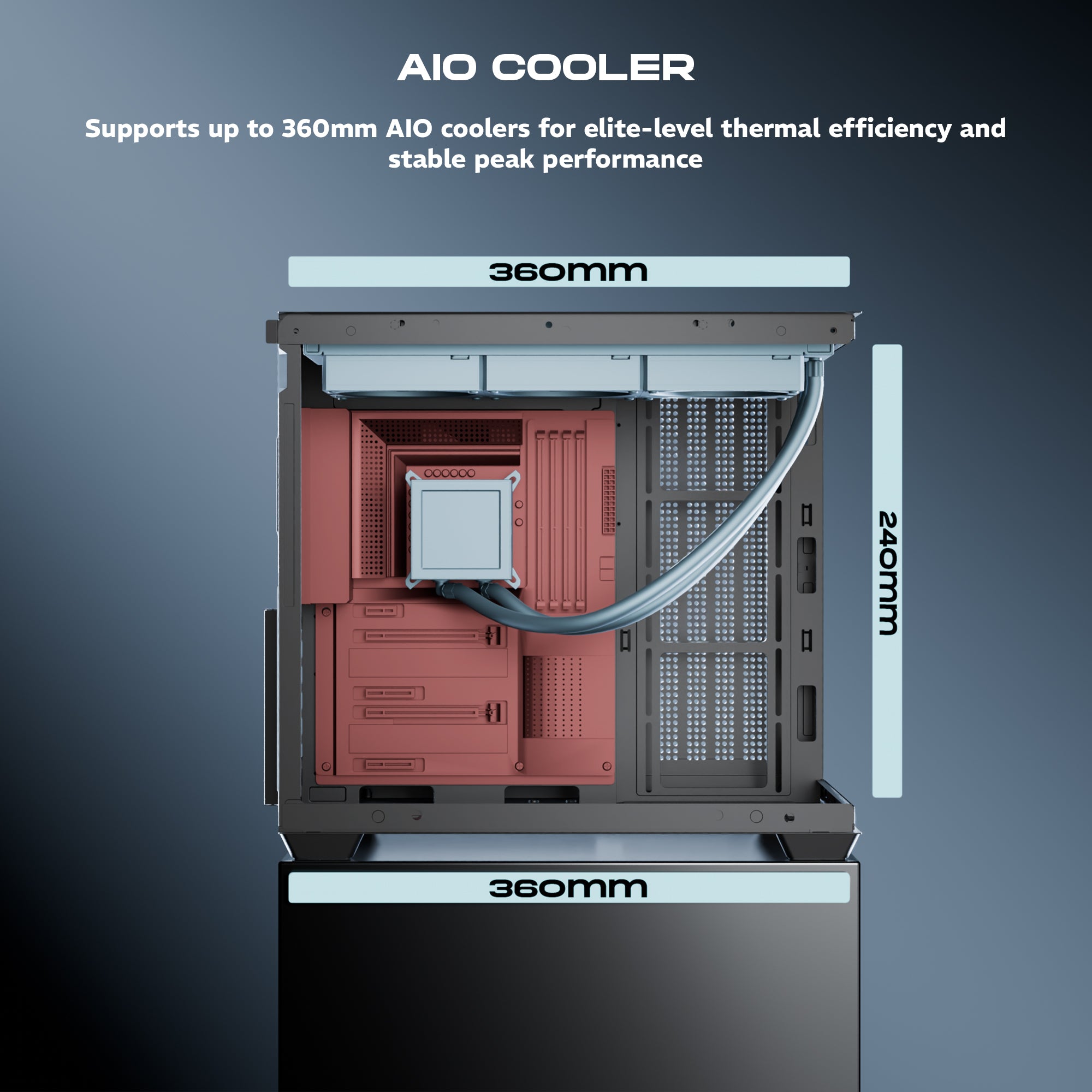

AIO / Radiator Support:

• Top or Bottom: up to 360 mm radiator.
• Side: up to 240 mm radiator.

Q: Does the X 617 have dust filters?
A: Yes — it comes with magnetic dust filters on the top and bottom.

Compatibility & Dimensions

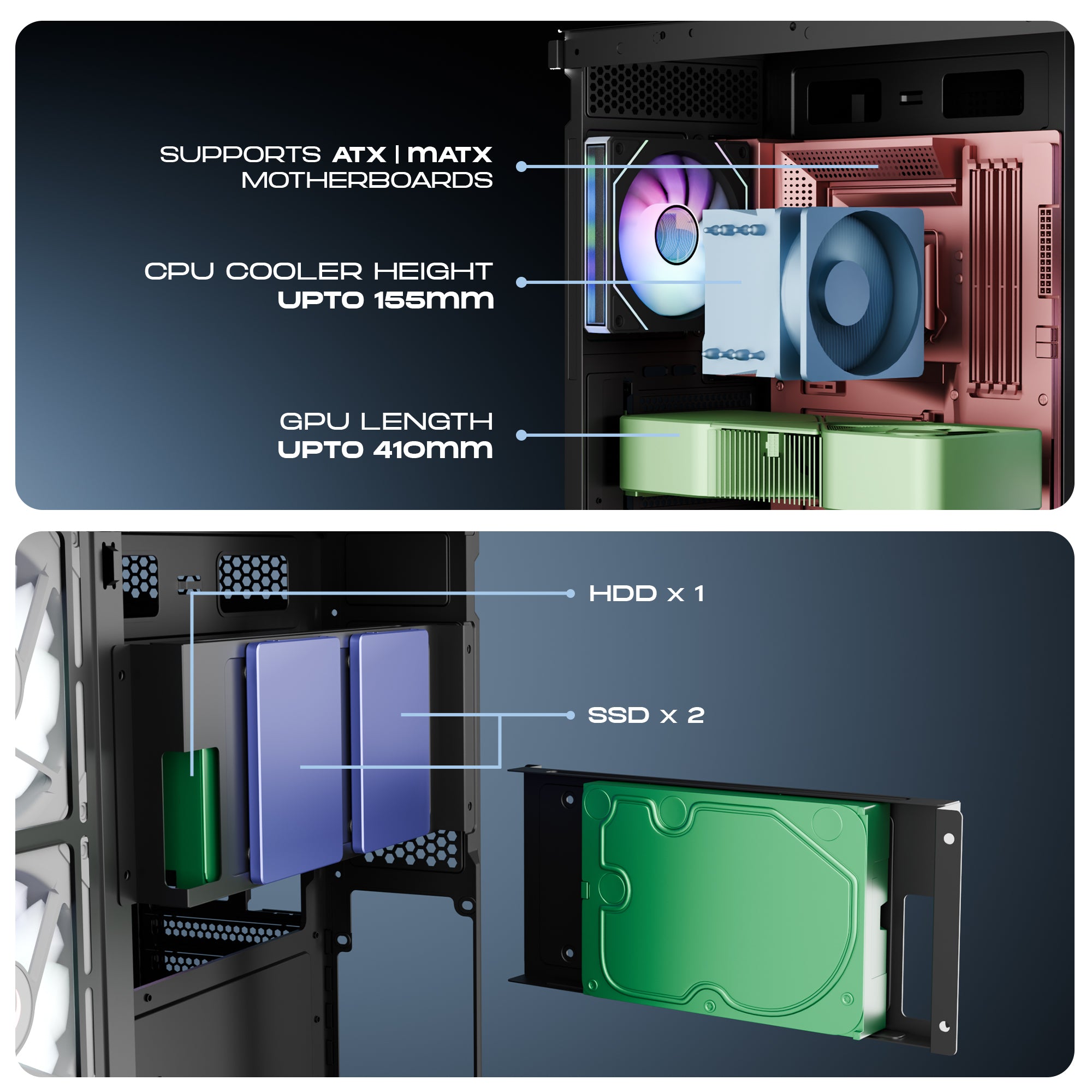

Q: What is the maximum supported CPU cooler height?
A: The maximum CPU cooler height supported is 155 mm.

Q: What is the maximum GPU length supported?
A: The X 617 supports GPUs up to 410 mm in length.

Q: What are the case dimensions and weight?
A: The case measures 27.5 × 42.5 × 39.8 cm (W × D × H) and weighs about 5.4 kg.

Storage & Expansion

Q: What storage options does the X 617 support?
A: The supported storage configuration is 1 HDD + 2 SSDs.

Q: How many PCIe expansion slots are available?

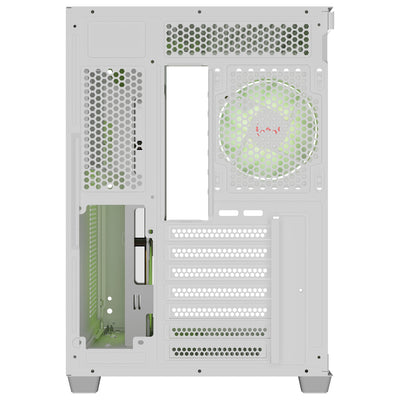

A: The case offers 7 PCIe expansion slots.

Design & Features

Q: Does the X 617 have RGB lighting?

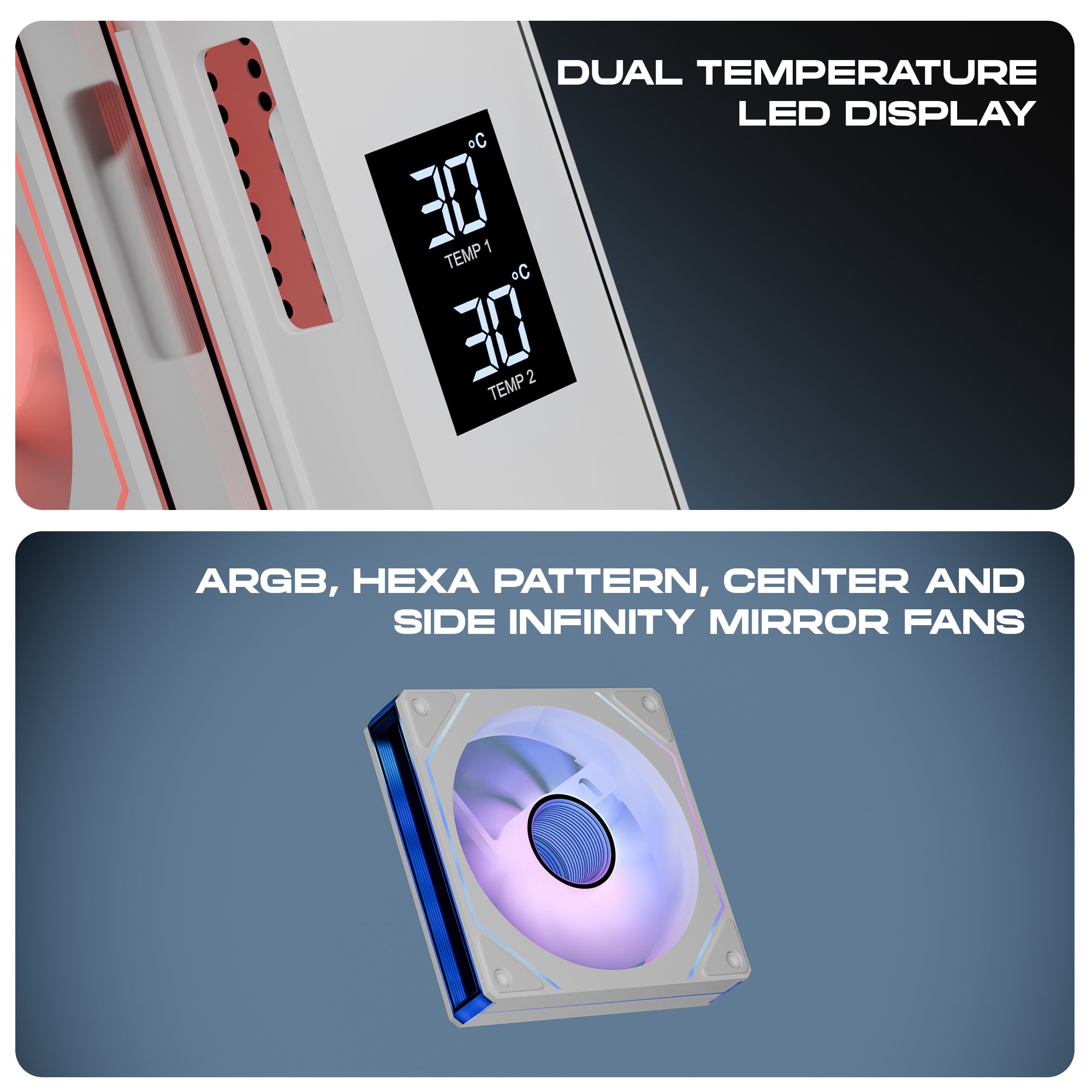

A: Yes — it features ARGB (Hexa-pattern) fans with center & side infinity-mirror glow for enhanced aesthetics.

Q: What type of side panel does it use?
A: It uses a wraparound tempered glass panel for a clear, full-sided view of internal components.

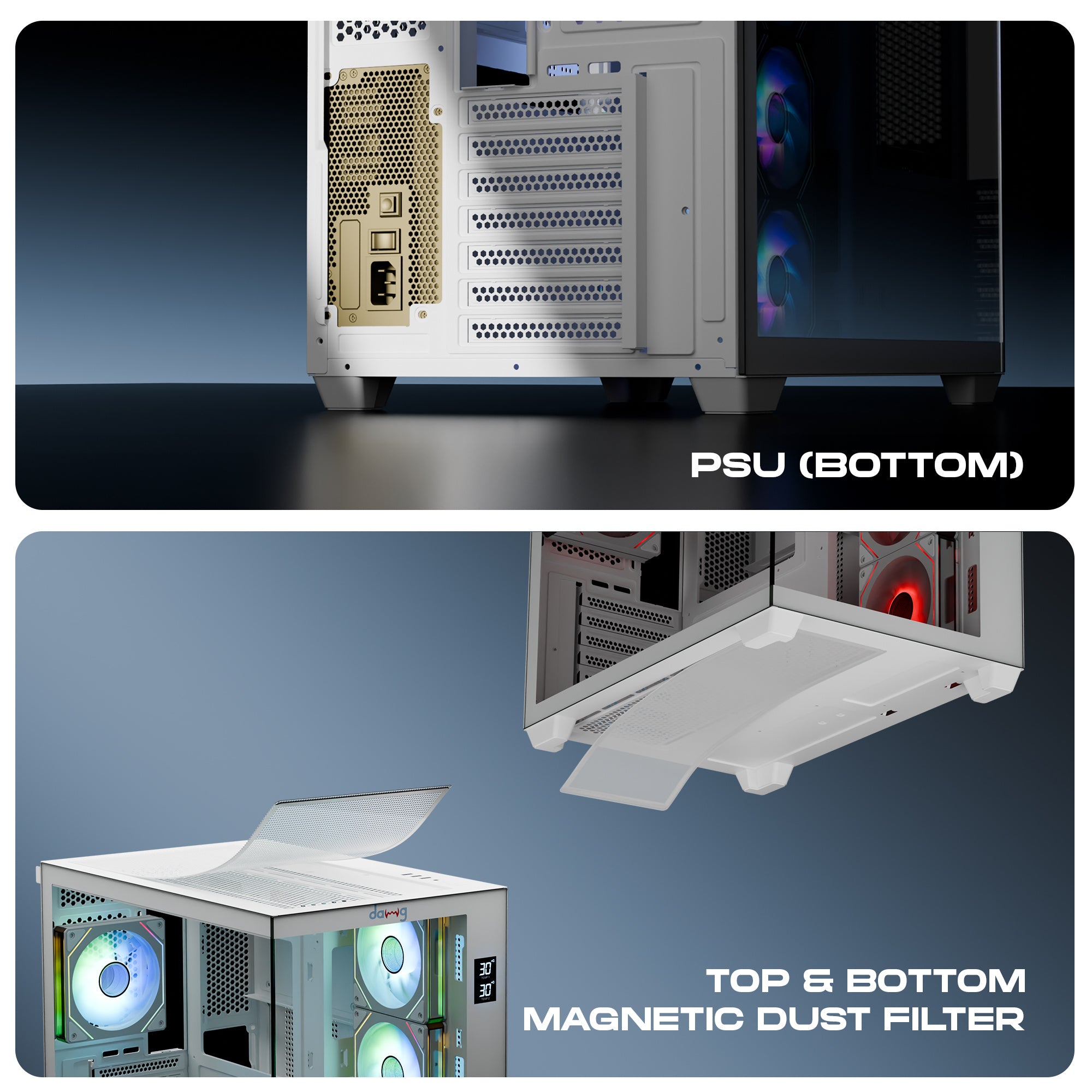

Q: Where is the PSU located?
A: The PSU is mounted in a separate bottom chamber, with space up to ~220 mm PSU length.

Installation & Setup

Q: What comes in the package?
A: The package includes the chassis (case) itself along with 4 pre-installed ARGB fans.

Q: Is cable management supported?
A: Yes — the X 617 includes a dedicated PSU shroud and support for a dual-chamber build, which helps with clean cable management and better airflow.
